[Plugin] PeppyMeter/Spectrum Screensaver for VOLUMIO Bookworm

Plugins
42

We’re spinning again, literally!

As promised, the rotating cover has arrived. Want to give your template that hypnotic vinyl vibe? Just sprinkle in these magic lines:
albumart.rotation = True # Or False if you’re not ready for a full Pete Burns “Spin Me Round”
moment albumart.rotation.speed = 13 # RPM, baby! Go wild—33⅓, 45, or crank it to 78 for turbo disco mode

Need upgrade instructions? They’re right here

And yes, we’ve got a working example. It’s not winning any beauty contests, but it’s brutally honest about what’s going on under the hood:

800x480_custom_11.zip (212.1 KB)

4 Likes
43

Dear Volumionauts,

More spinning from x64.

Kind Regards,

4 Likes
44

I will try to do it with great pleasure.

4 Likes
45

We’re close to perfection!
Version 4.06 fixes the logo color issue.
But… if, for example:
playinfo.maxwidth = 1000

The following settings don’t work:
playinfo.artist.maxwidth = , playinfo.title.maxwidth = , etc.
they are set to the playinfo.maxwidth value (they can’t be smaller, for example)

IMG_20251222_124929
IMG_20251222_1249291920×1245 233 KB

1 Like
46

I believe they do work:

[vertical-turntable-blue]
meter.type = linear
channels = 2
ui.refresh.period = 0.05
bgr.filename = vertical-turntable-blue-2024_dark-bgr.png
indicator.filename = vertical-turntable-blue-2024_dark-indicator.png
fgr.filename = vertical-turntable-blue-2024_dark-fgr.png
left.x = 46
left.y = 402
right.x = 675
right.y = 402
position.regular = 10
position.overload = 2
step.width.regular = 7
step.width.overload = 7
direction = left-right
meter.x = 0
meter.y = 0
screen.bgr =
# --- volumio optional entries -------
config.extend = True
albumart.pos = 257,109
albumart.dimension =289,289
albumart.rotation = True
albumart.rotation.speed = 13

playinfo.title.pos = 20,10,bold
playinfo.title.color = 119,83,69
playinfo.title.maxwidth = 760

playinfo.artist.pos = 20,60,regular
playinfo.artist.color = 119,83,69
playinfo.artist.maxwidth = 760

#playinfo.album.pos = 20,70,regular
#playinfo.album.color = 0,207,0
#playinfo.album.maxwidth = 760

playinfo.center = True
#font.color = 207,0,0
font.color = 255,255,255

playinfo.type.pos = 10,200
playinfo.type.dimension = 60,60
playinfo.samplerate.pos = 40,280,light
playinfo.type.color = 0,1,10
playinfo.samplerate.maxwidth = 130

time.remaining.pos = 615,230
time.remaining.color = 0,1,10

font.size.digi = 50
font.size.light = 26
font.size.regular = 40
font.size.bold = 45
47

Don’t use,
playinfo.maxwidth

but use:
playinfo.samplerate.maxwidth, playinfo.album.maxwidth, playinfo.artist.maxwidth, playinfo.title.maxwidth

2 Likes
48

Perfect! What else did you change and not say out loud? :stuck_out_tongue_winking_eye:

1 Like
49

Hey @Gelo5,

Kind Regards,

50

Nothing else as far as I recall. We didn’t change legacy things, we fixed bugs :slight_smile:
The exact reasoning is in the link provided by @nerd.

1 Like
51

@Wheaten - do you know who holds 4.06 release?
@Gelo5 - can you point me to the source that I can diff with the upcoming 3.0.6 please?

Kind Regards,

52

@nerd

V4.06:
Behold! Must be the legendary Lee.Yan, wielder of the mystical Pyhton Sprinkeler, casting code like confetti at a wizard’s birthday party!
(Unless @Gelo6.5 made a booboo, with numbers)

4 Likes
53

Well, you can’t even make a mistake - this is the 5-day version from nerwheat! (Coming soon) :sneezing_face: :innocent:

2 Likes
54

First correction meters.txt
ONLY for 1920x1080 - FOLDER: 1920x1080_Gelo5 Spec&Met_720
:vertical_traffic_light:meters.zip (4.0 KB)

ONLY for 3840x2160 - FOLDER: 3840x2160_Gelo5 Spec&Met_760
:vertical_traffic_light:meters.zip (4.1 KB)

1 Like
55

:rocket: Welcome to V3.0.6 (or V4.0.6 if you’re feeling fancy :rofl:)
As of this moment, both @nerd and I agree: this is the final boss version. Unless something explodes, we’re calling it done.

:tada: We’re spinning again, but with some stationary part!
And now with a shiny foreground overlay strutting on top of that rotating cover like it owns the place.

:white_check_mark: What’s new in our epic saga:

  • Bookworm-ready: Runs smoothly on both rPi and x86.
  • Bug exorcism: Old gremlins? Gone.
  • Scrolling magic: Artist, Album, and Title now glide across the screen with their own max lengths.
  • Deprecated stuff (because we’re classy):
    • playinfo.maxwidth → Use these instead:
      • playinfo.title.maxwidth
      • playinfo.artist.maxwidth
      • playinfo.album.maxwidth
      • playinfo.samplerate.maxwidth
  • Rotating cover unlocked:
    • albumart.rotation = True
    • albumart.rotation.speed = 13
  • Foreground overlay upgrade: FGR now sits proudly above the spinning vinyl.
  • Performance boost: Code optimized for less sweat and more groove.

Need upgrade instructions? They’re right here

“Because static covers are so last season.


Example:
800x480_custom_11.zip (160.4 KB)

4 Likes
56

My last template:
Bang and Olufson (old school):

image706×430 77.7 KB

800x480_custom_11.zip (243.9 KB)

1 Like
57

Yes, please make the two buttons to live rotating:grinning:

1 Like
58

I wish…

59

Hey @naimnatnod,

Is this a template? Does it have a name or link to it?

Kind Regards,

60

Hi @nerd ,

I know you would be interested into making this happen. It’s Gelo5’s template of 1920x515 call Casette515.

Andy

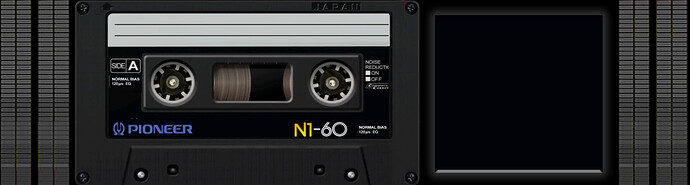

Casette515
Casette5151920×515 118 KB

Casette515_bgr
Casette515_bgr1920×515 55.5 KB

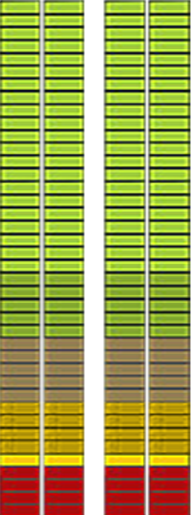

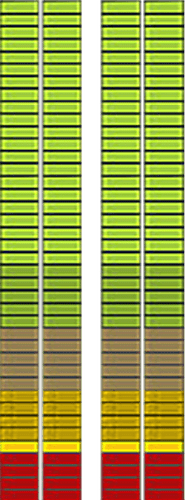

Casette515_indicat
Casette515_indicat191×515 131 KB

61

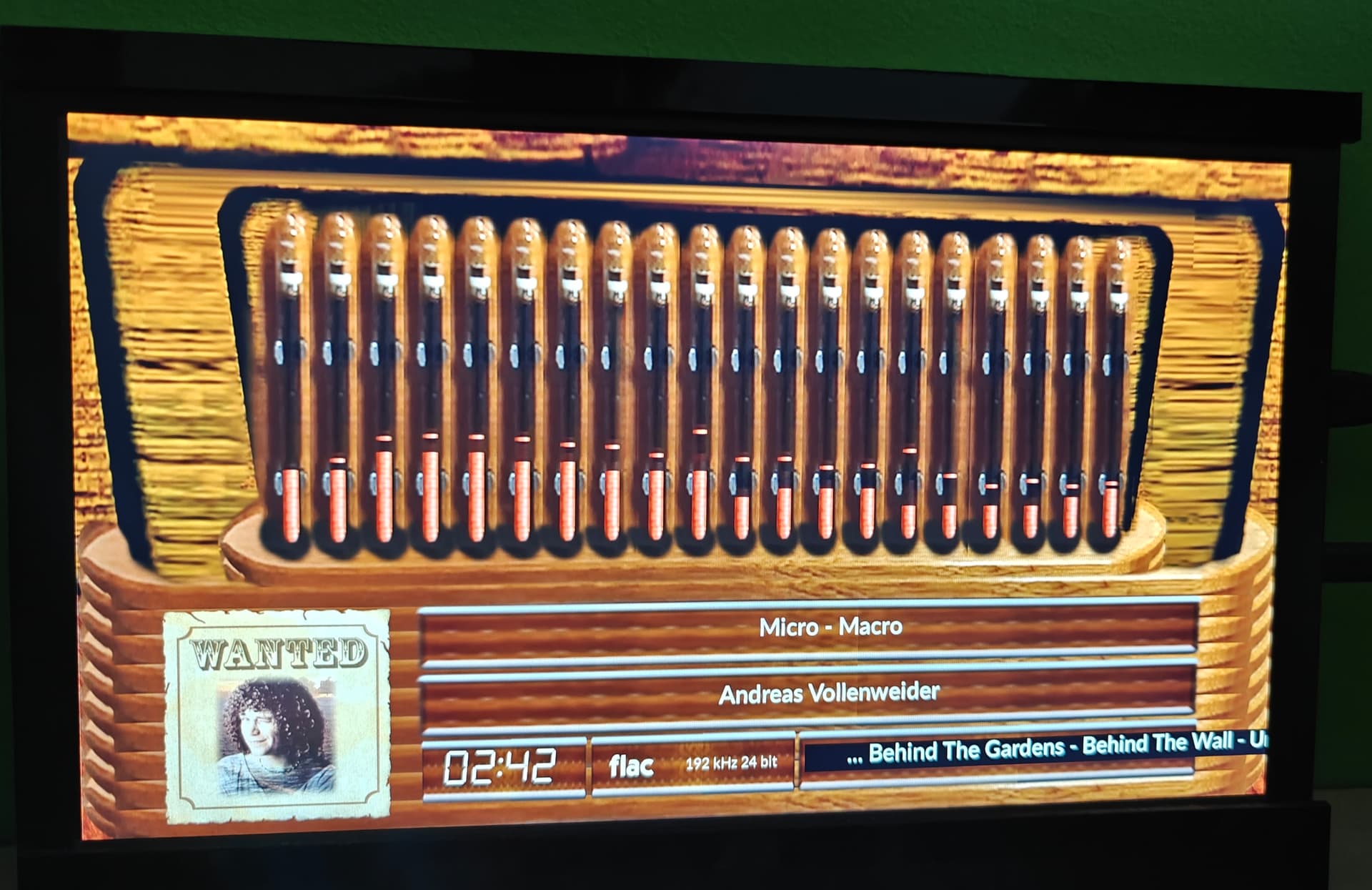

To the masters @nerd, @Wheaten, and @Gelo5,

Our little community in Thailand (Thai Volumio) truly appreciates everything you’ve done. We wanted to share some examples of how our group has modified your work and brought it to life on our Volumio music streamers.

Thank you for your contributions, and we wish you all the best this holiday season!

— Thai Volumio



4 Likes
