PeppySpectrum - The plugin!

peppy.player · May 9, 2024, 3:46pm

Hi,

I’m not sure what can cause this issue. It would be helpful to observe a CPU and memory usage when it happens.

Best regards

Lintbf · May 9, 2024, 4:06pm

Hi ,
I see that the cpu usage increase to 100% during spectrum stop … when decrease below 100 also the spectrum starts …

balbuze · May 9, 2024, 4:14pm

while playing 99 bars Spectrum RPI4

peppy.player · May 10, 2024, 6:56am

Do you also experience pauses during such CPU consumption?

Lintbf · May 10, 2024, 7:35am

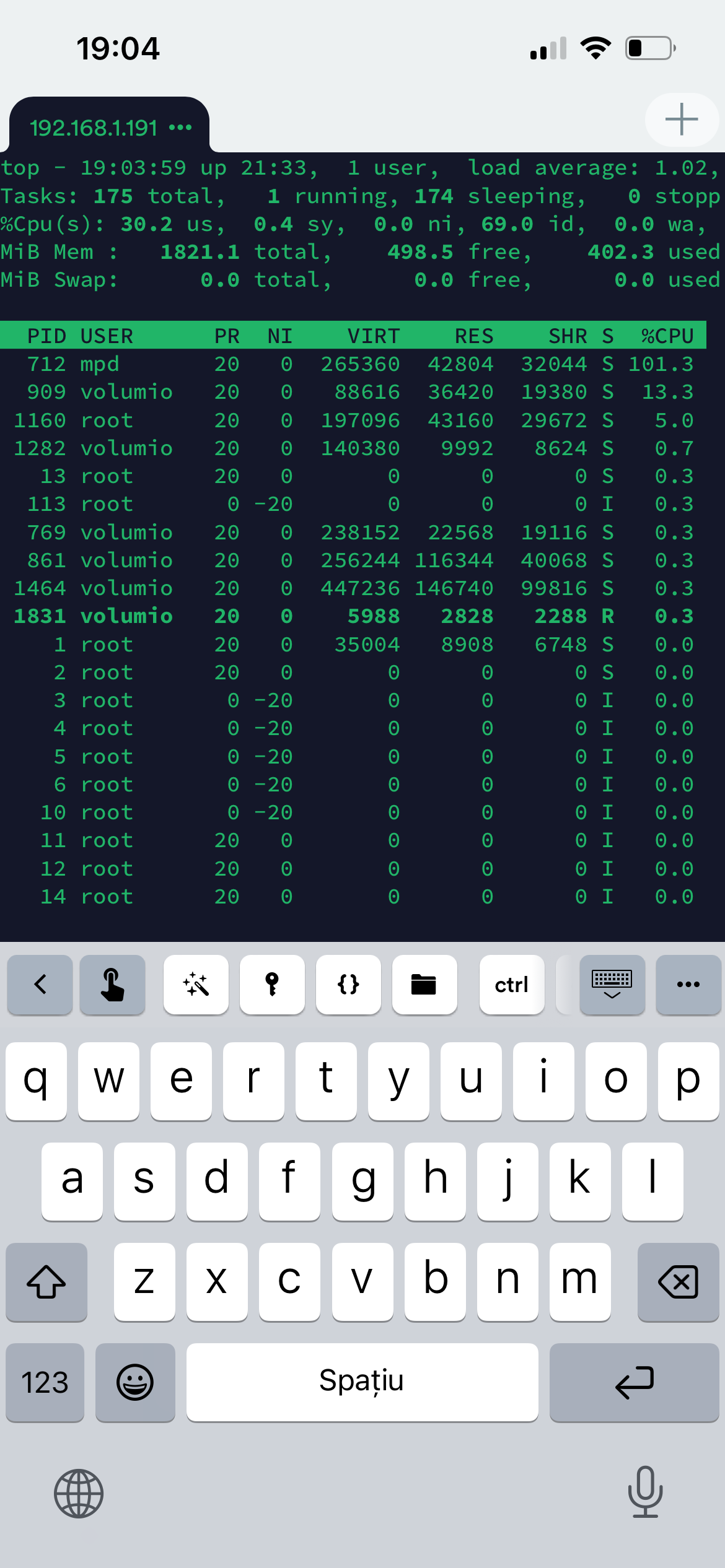

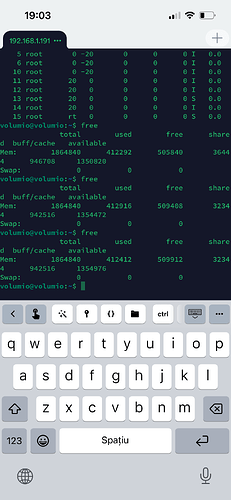

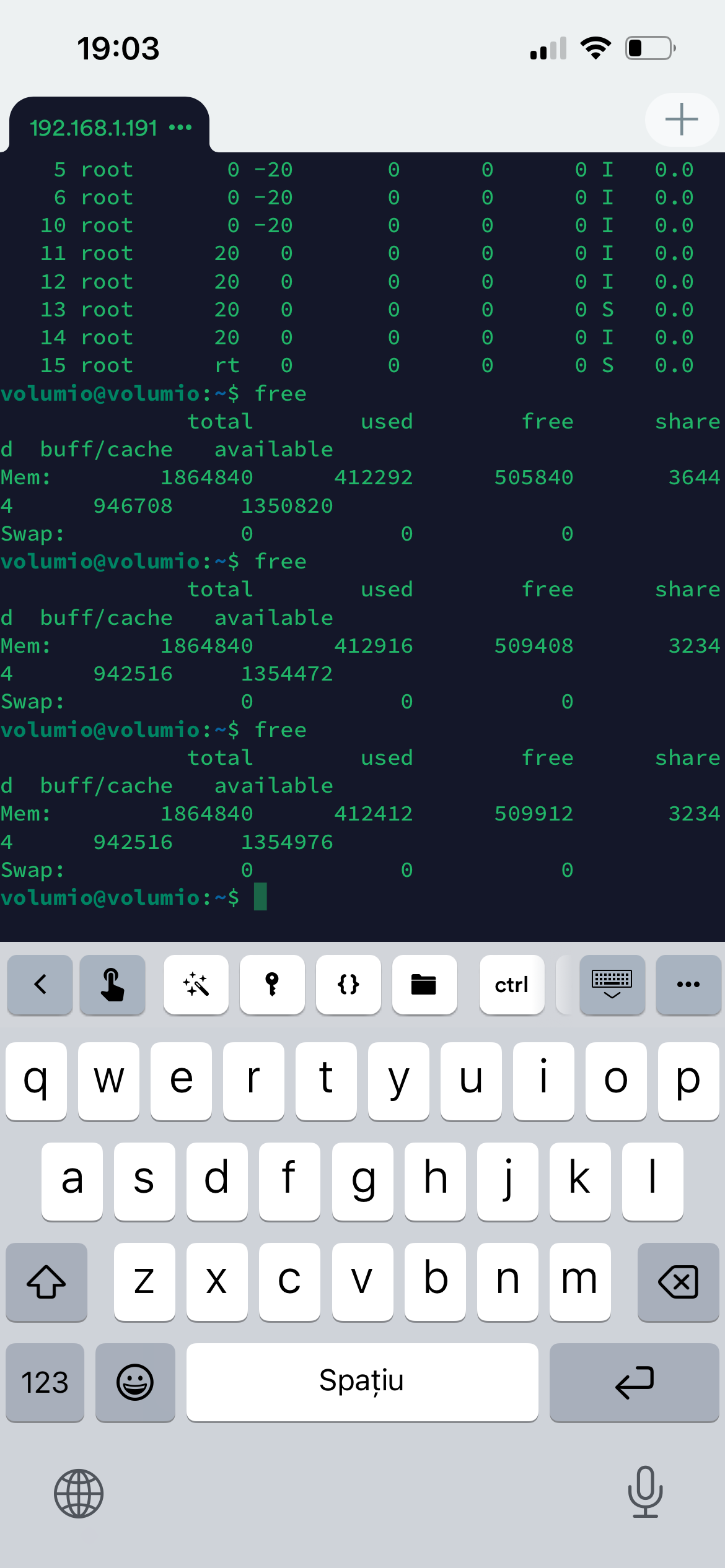

During 100% CPU consumption , Spectrum bars are paused, music continue playing . After 5 to 10 seconds the CPU consumption decrease and then bars are shown again

balbuze · May 10, 2024, 9:36am

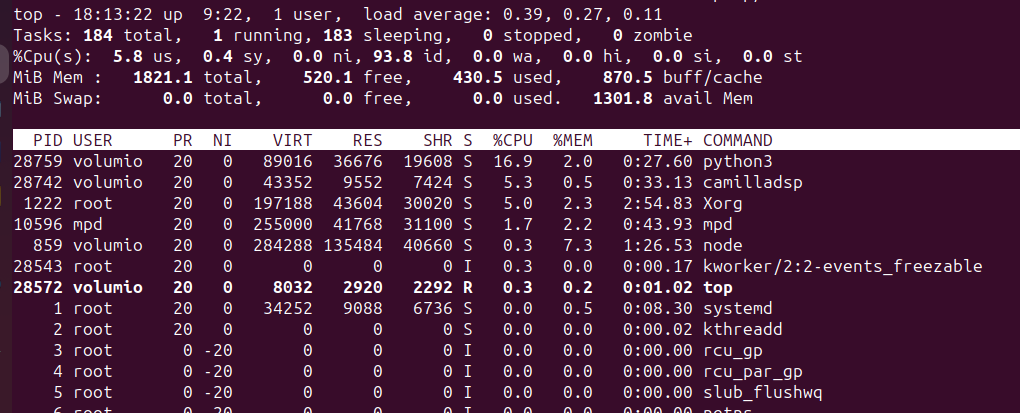

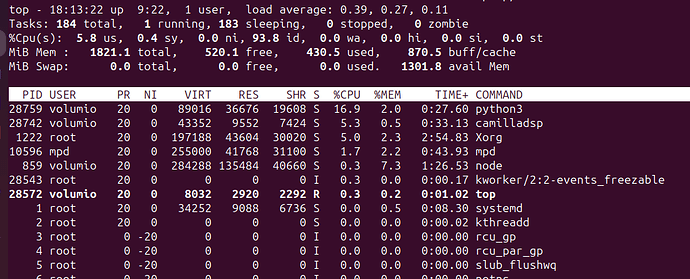

ok I catch +100% CPU when it hangs.
In my case camilladsp report the following

2024-05-10 09:33:00.244648 WARN  [src/alsadevice.rs:213] Retrying playback, error: ALSA function 'snd_pcm_writei' failed with error 'EPIPE: Broken pipe'

Edit this message seems not related to the issue we are talking about. But happens even wihout using mpd, in that case with snapcast playing

peppy.player · May 11, 2024, 5:59am

It looks like the program cannot read the data for 99 bands fast enough. Try to play with this parameter:

github.com

project-owner/PeppySpectrum/blob/e56ca32c6daaffb5d16f25a8d3f8f852a0119b26/config.txt#L9



          [current]
          spectrum =
          base.folder =
          spectrum.folder = 480x320
          update.period = 10
          max.value = 100
          pipe.name = /home/pi/myfifosa
          size = 30
          update.ui.interval = 0.04
          frame.rate = 30
          depth = 32
          exit.on.touch = False
          use.logging = False
          use.test.data =

          [sdl.env]
          framebuffer.device = /dev/fb1
          mouse.device = /dev/input/touchscreen
          mouse.driver = TSLIB

Try to set it to different values (0.03, 0.02 etc) and see if it helps.

Lintbf · May 11, 2024, 6:02am

Hi
Also wirh 30 bars happens
Thanks

balbuze · May 11, 2024, 7:28am

And I remember having the same thing with meters too. Needles stop few seconds and then restart.

Lintbf · May 13, 2024, 1:18pm

Hi @balbuze
If you have any update which I can test it pls let me know , or pls tell me how can I modify locally that oarameter .
Thanks

balbuze · May 13, 2024, 1:45pm

Hi, have a look at

/data/plugins/user_interface/peppyspectrum/config.txt.tmpl

And save a setting in the plugin.
But I tested… with no results for the issue. But a big impact on CPU load and aspect…
Try yourself

gvida · May 13, 2024, 2:06pm

HI Balbuze

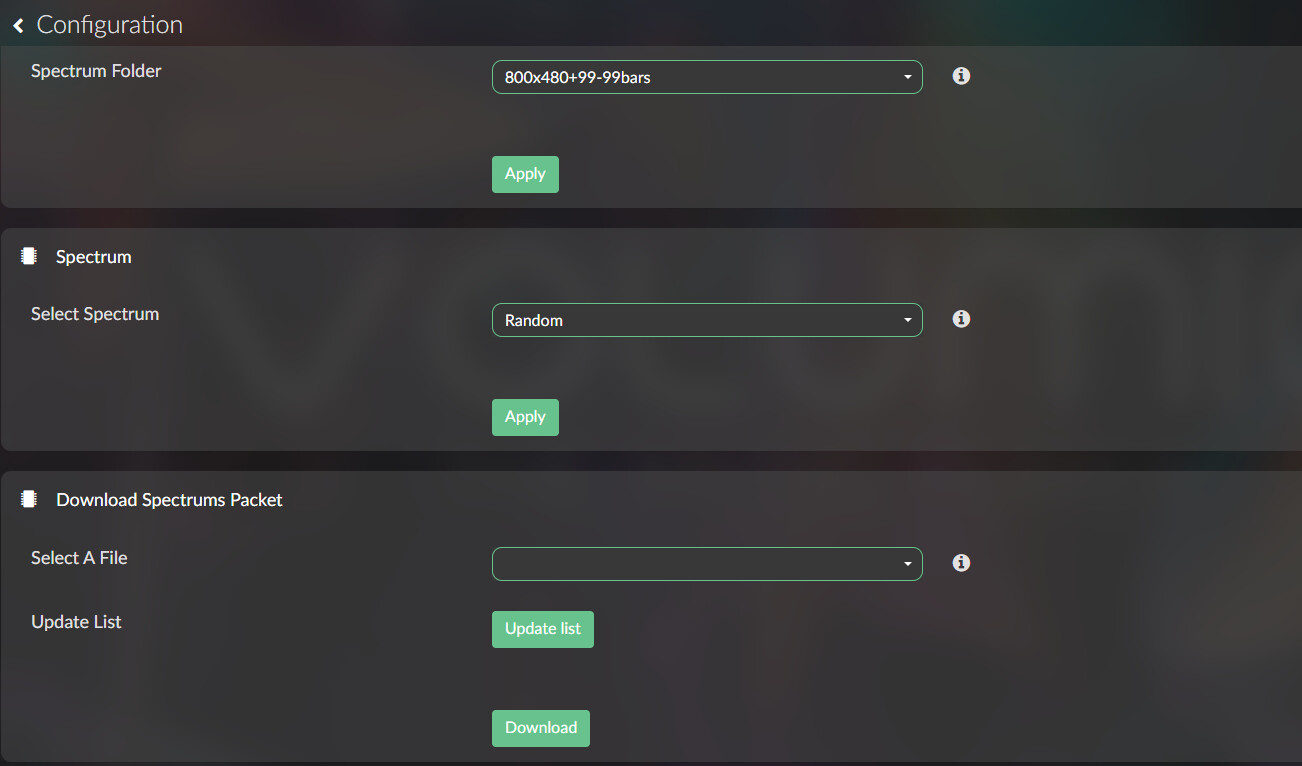

I am not sure to understand how to use the download spectrum packet; I assume ita llows to dowload the Zip file of th spectrum UI. select file list box is empty.

How to proceed ?

balbuze · May 13, 2024, 2:19pm

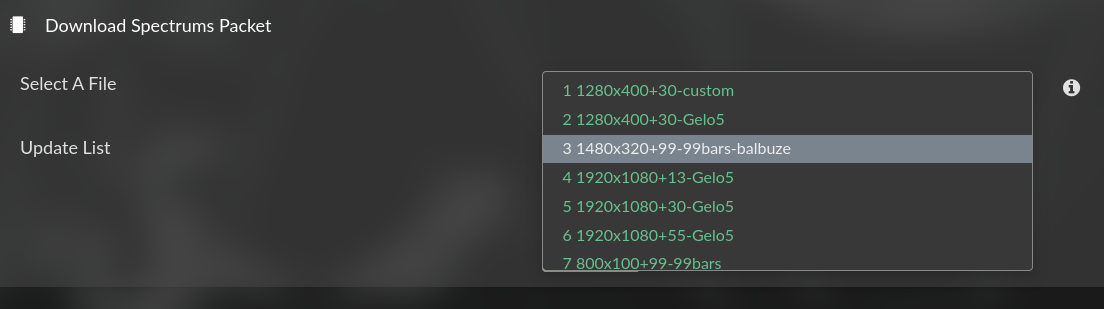

Update the list. Then choose a placket to download.
Once it’s done, select it in the top section.

gvida · May 13, 2024, 3:08pm

Restart the device was necessary to take in account the list.

Once a file selected, downloaded then use, it works. If we change the spectrum folder for a new one. RPI is locked, somùetimes reboot is requested.

It would be great to have the ability to clean the lst of file we have previously uploaded, after many tests,this would make sense to clean up.

Great job.

balbuze · May 13, 2024, 3:34pm

Something seems wrong on your system. I never had to reboot or see it frozen du to spectrum change.
But if numbers of bands change, playback stop and you have to reselect from the queue.
To remove items (folder), use your file explorer form your computer or smartphone (with smb client) and browse to /data/INTERNAL/PeppySpectrum/Templates/ This a shared folder of Volumio.

Roberto_Grieco · May 20, 2024, 2:59pm

Hi,@balbuze. For screen like mine waveshare 11.9" 1480x320 is there nothing?

balbuze · May 20, 2024, 4:17pm

Hello,
For now, no one created Spectrum in 1480x320…
So none is available!
Sorry
But I’ll be glad to add any contributions!

Gelo5 · May 20, 2024, 4:39pm

When I finish the skins for Peppyscreen, I will try to do something.

balbuze · May 20, 2024, 4:57pm

Super!
I added a basic spectrum though…
Update the list

Roberto_Grieco · May 20, 2024, 5:17pm

great @Gelo5 @balbuze
But i don’t understand why to me doesn’t function.
1 Fresh volumio installation.
2 Touch display
3 Peppyspectrum
4 Spotify connect
I use all sources Nas, webradio spotify connect but peppyspectrum doesn’t start.
Where is my mistake?
