thanks for your reply, I have some problems finding the requirement for the install.
To tell the trtuh, Rufus did make its way. Probably i have no more free space
and yes, no china , real 2gb. i will go for a 8 and try again just to be sure
ok, with a 4gb usb it did work.
Now a basic question: where i do find the output sound? Have i to use headphones output to ampli?
And more: i also have a bluetooth ampli, will i be able to send music via bluetooth?
Thanks in advance
1 Like

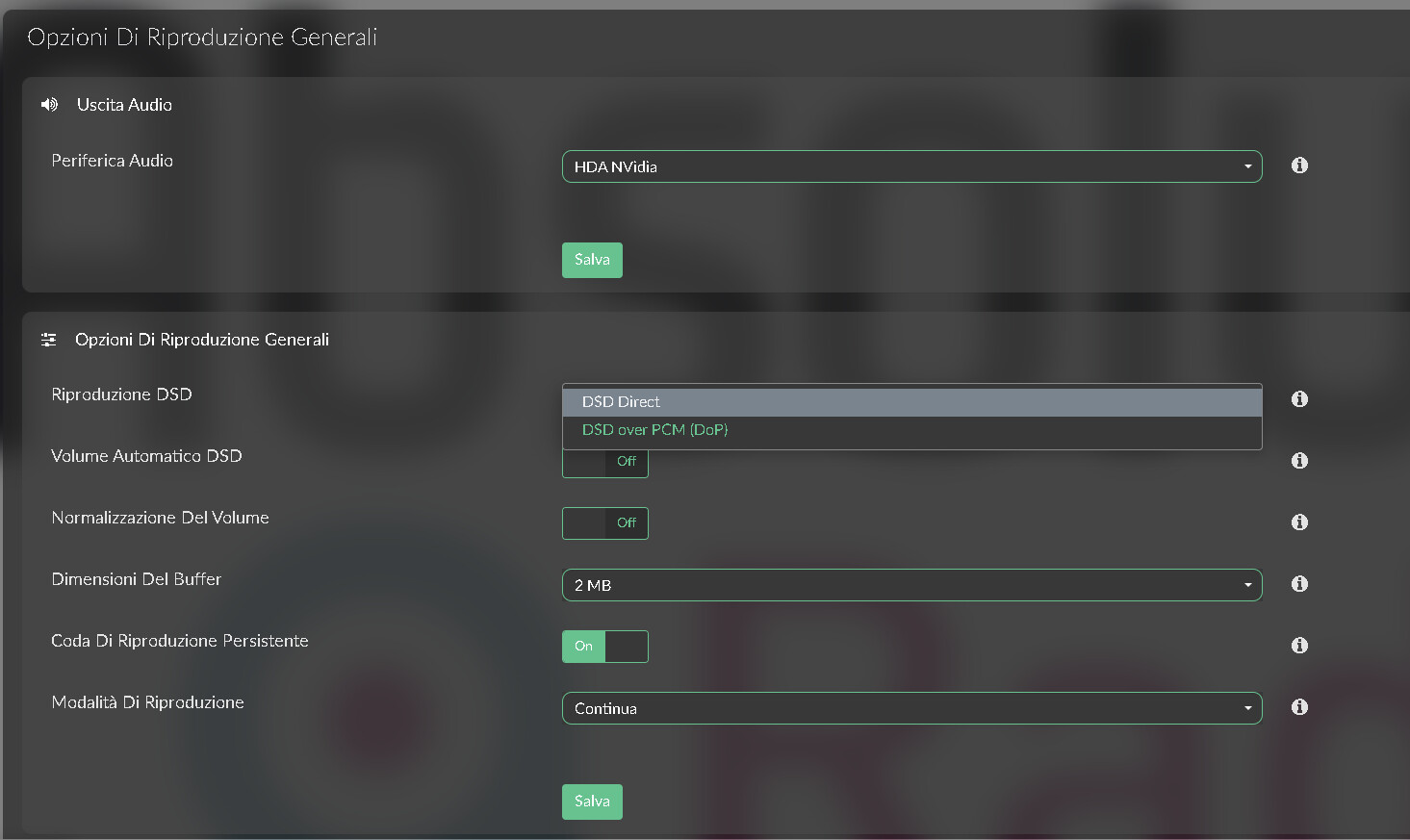

Did you look at the content of the drop down list of values under āPeriferica Audioā?
(the best Italian attempt of me, besides Pizza and tanta birra, per favore)
itās correct. May i sugggest birra FREDDA?? hot beer itās not goodā¦

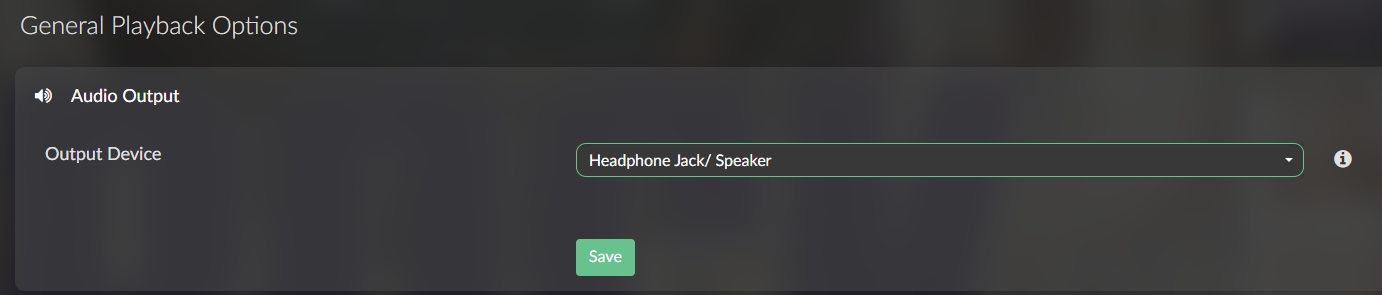

Periferica audio and output device obviously are the same
I have no choice. Only Nvida HDA which stands for High Definition Audio. Gpu output?
Yeah thanks for the correction, only those English folks drink warm beerā¦
Please look at the opening post from gkkpch and provide the requested data.
This will help us to determine your hardware.
1 Like
@Wheaten Thanks, seems to be a new configuration we did not cover yet.
@marcogiaguaro
It is really important to get the log from the requirements we posted in the opening post. It will show us what the āHDA Nvidiaā configuration looks like, as you seem to be the first one reporting this.
Let us know in case of questions.
@Wheaten @gkkpch so i did.
Butā¦ i am waiting for the link since lunch time and itās not yet ready.
In the meantime amazon did ring the door, and my 3.5 to rca cable was here, so i decided to try or die.
You must know that i have a Miaolai P8, hybrid amplifier with bluetooth and DAC.
So i tried the rear audio connector (by the way, ma ASrock mb has a 7.1 onboard) since the 2 connected speaker played the music.
And they did.
2 more problem: a pretty great background noise, and they dont work if connected at the front speakers ouput. I need the ārearā speakers output
To come back at the HDA Nvidia it seems correct , or at least itās the fastest way.
On the mb, as many has, there are HD audio, firewire and so on, perhaps being the standard connector the only activated, this is what he read.
I am wondering (total beginnerā¦) i am outputting without a DAC.
WHERE shoud i have to put a dac, if i ll buy it?
You claim that the Miaolai P8 (unknown to me) has a DAC? Does this means it can be used as DAC?
If not.
You can use an USB DAC which will be connected to the USB port of the PC.
@Wheaten as i said i am a beginner.
I expected some digital output from the Volumio pc, but i get the analog from the speakers connector.
Well, Miaolai gets bluetooth input from the lcd projector (and this is why i bought it) and yes i think it has a dac.

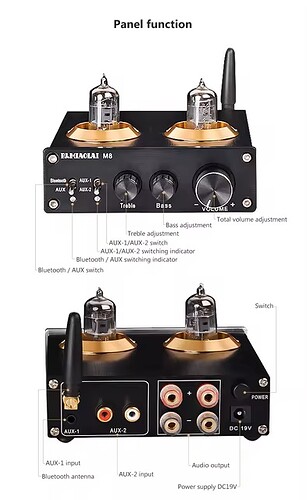

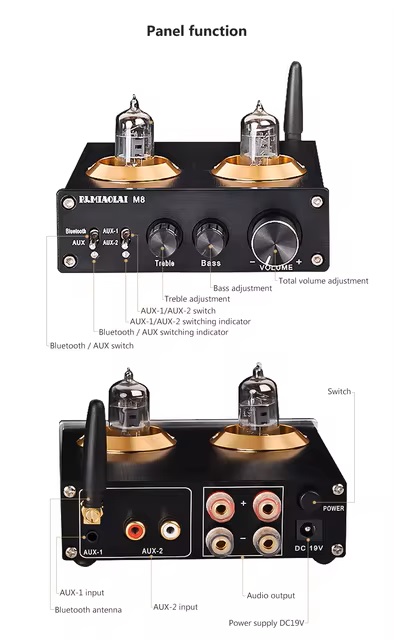

"Product Description:
- M8 fever Hifi electron tube bluetooth digital amplifier,The amplifier uses TPA3116 core chip.The TPA3116 is D type amplifier IC.The max 1.2MHZ modulation frequency,large power output distortion is less than 0.1%(10W).the max support 50W+50W dual channel output.
- Thick gold plating,M8 multi group audio signal input,sound switch on the front panel,free converion,
- 6J1 electron tube,aluminum large radiation fin.
- M8 BTM625 bluetooth audio module,CSRA64215 chip,support A2DP,AVRCP,HFP,TWS,AAC,I2S,APTX,APTX-LL.
- 4M SPI FLASH memory chip,external high gain detachable antenna,signal lossless transmission.
- Inner 2 pcs relayer and high presion customed crystal oscillator,switch on protection function.
- ESS9023 bluetooth decode,24 bit stereo audio digital analog conversion chip(DAC).Hyperstream structure,112dB dynamic range.
- M8 audio signal input port can connect computer,CD,lossless music player.can connect computer,tablet PC through bluetooth.
- Audio output port can connect desktop passive speaker,bookshelf speaker(passive bookshelf speaker below 4 ohm 150W,8ohm 100W)"

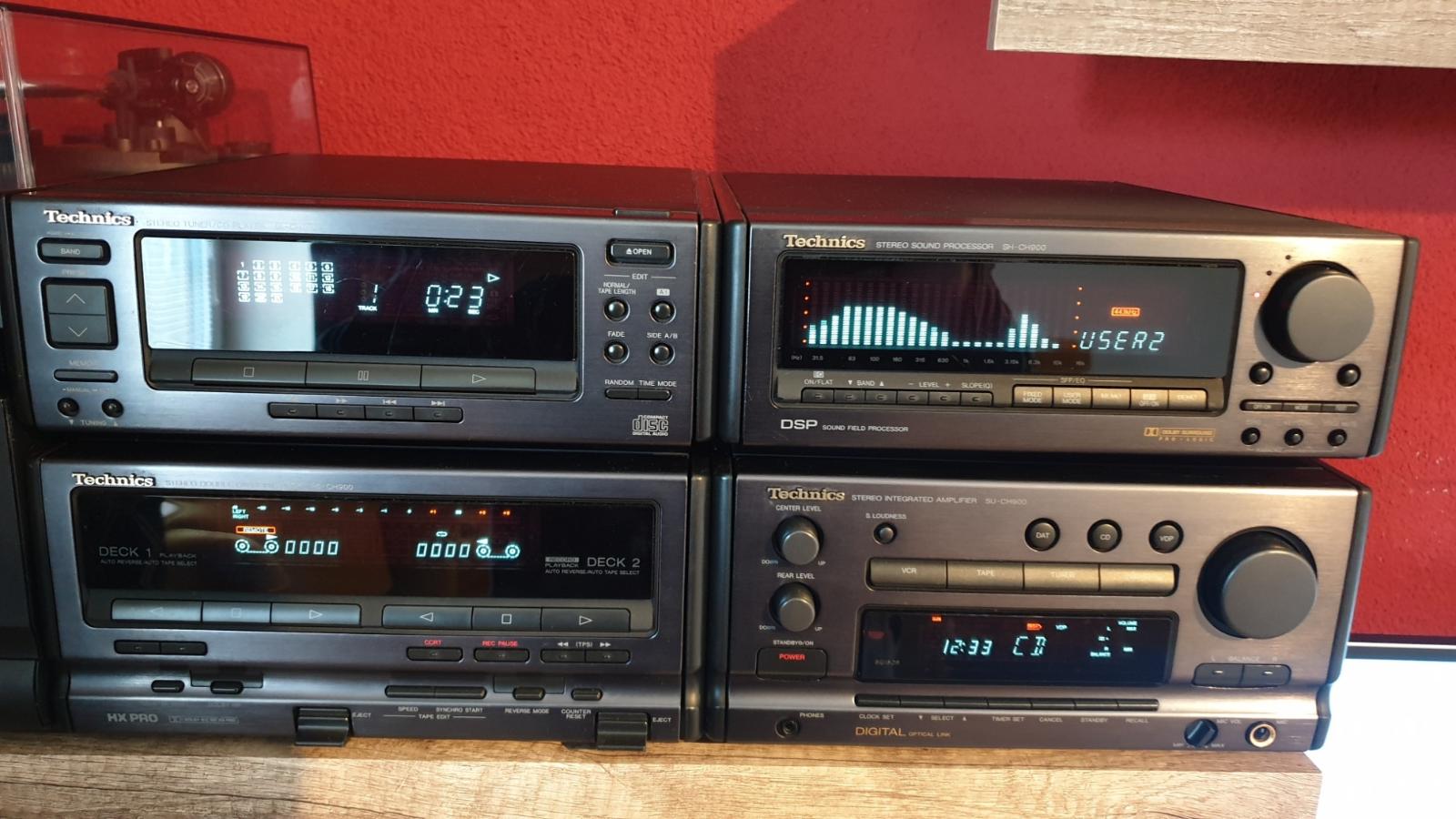

But, what about leaving the miaolai and take a digital output (s/pdif for example) from the pc and ending to my Technics sc ch900?
It has DAT input and other optic fiber input , in the signal process unit, so i must assume it can manage digital input, isnt it?
i am a little confused about digital, analog and why to use a dac
Seems the DAC is only accessible via a BT Connection.
And make sure to provide correct info as you started with a Miaolai P8, now youāre giving the specs of a Miaolai M8.
Before digging any further, please provide the info what was requested from the opening post first.
In Basic a PC only has a line out, which normally is an āacceptableā audio source, nothing more.
A amplifier can have a fully integrated DAC, which is accessible via an USB port, or partial like the M8 via BT.
So in your situation, you can opt for a External DAC, like the Topping E30. Here you connect the USB output from the PC to the USB input of the E30 and the Analog outputs of the E30 to the AMP.
But before investing make sure you have a clear understanding of what you try to accomplish.
Thanks for your reply.
Let me leave the miaolai aloneā¦
I am deeply interested in the spdif audio from the pc to the tosslink of my technics now.
If itās correct, spdif is digital output and the sound processor of my stereo has the dac also if itās from the 90s, it seems.
I mean, optic fiber lead digital not analog isnāt it?
About the log :still waiting the link
You mingle different technologies.
But SDIF can be Coaxial or Optical. Both transport a digital signal.
The receiver needs to perform the conversion from Digital to Analog. In your case the technics.
I donāt have any info with regards to the DAT input, as this was back then intended for a Digital Audio Tape. You just need to try. As the technics has multiple Optical inputs.
1 Like
Letās just try to get a proper log, sofar we have no data about the pc this system is running on, no information regarding the DAC connection, no information on the HDA nvidia either. It remains guess work. Letās get facts first.
So, how can we help to get the log link?
1 Like
@gkkpch for some reasons , it says, again, Sending log report, please wait
But it doesnt
BlockquoteBut SDIF can be Coaxial or Optical. Both transport a digital signal.
The receiver needs to perform the conversion from Digital to Analog. In your case the technics.
I donāt have any info with regards to the DAT input, as this was back then intended for a Digital Audio Tape. You just need to try. As the technics has multiple Optical inputs
Blockquote
i ordered a usb to tosslink cable, just tryin
still no reply from the log
hi!
from a ssh terminal, can you post what returns the command:
volumio endpointstest
TY
