Need your help.

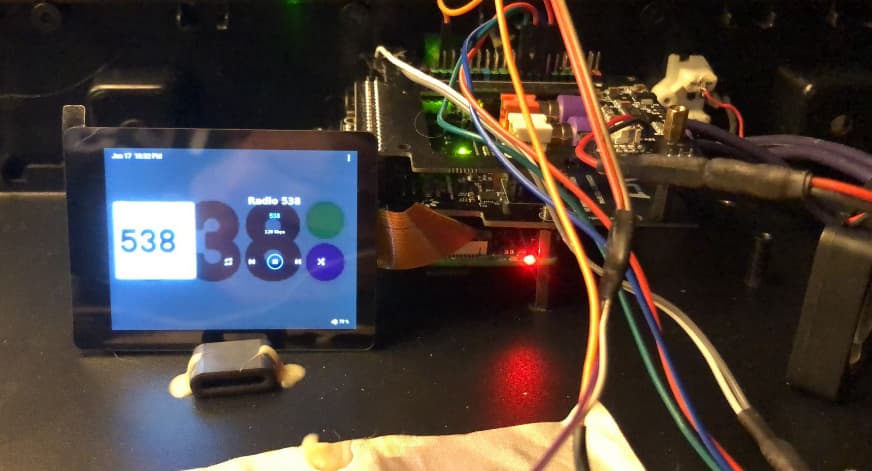

Got a small 2,8inch DSI screen from waveshare, to built in a existing cabinet.
Added in the user config, both screen and touch are working:
dtoverlay=vc4-kms-v3d
dtoverlay=vc4-kms-dsi-waveshare-panel,2_8_inch
However I can’t get it to rotate properly. the rotation should be 270.
Tried with no success:
dtoverlay=vc4-kms-dsi-waveshare-panel,2_8_inch,rotation=270
Tried to rotate it via the plugin => no success.
cat /boot/config.txt
initramfs volumio.initrd
[cm4]
dtoverlay=dwc2,dr_mode=host
[all]
arm_64bit=0
gpu_mem=32
max_usb_current=1
dtparam=audio=on
audio_pwm_mode=2
dtparam=i2c_arm=on
disable_splash=1
hdmi_force_hotplug=1
force_eeprom_read=0
include userconfig.txt
#### Volumio i2s setting below: do not alter ####
dtoverlay=hifiberry-dacplus
cat /boot/userconfig.txt
# Add your custom config.txt options to this file, which will be preserved during updates
dtoverlay=vc4-kms-v3d
dtoverlay=vc4-kms-dsi-waveshare-panel,2_8_inch,rotation=270
systemctl status -l volumio-kiosk
● volumio-kiosk.service - Volumio Kiosk
Loaded: loaded (/lib/systemd/system/volumio-kiosk.service; disabled; vendor preset: enabled)
Active: active (running) since Wed 2024-01-17 21:07:22 CET; 5min ago
Main PID: 1350 (startx)
Tasks: 77 (limit: 4915)
CGroup: /system.slice/volumio-kiosk.service
├─1350 /bin/sh /usr/bin/startx /etc/X11/Xsession /opt/volumiokiosk.sh -- -nocursor
├─1380 xinit /etc/X11/Xsession /opt/volumiokiosk.sh -- /usr/bin/X :0 -nocursor -auth /tmp/serverauth.01ZDCJcFj8
├─1381 /usr/lib/xorg/Xorg :0 -nocursor -auth /tmp/serverauth.01ZDCJcFj8
├─1435 /bin/bash /opt/volumiokiosk.sh
├─1465 /usr/bin/ssh-agent /opt/volumiokiosk.sh
├─1474 /usr/bin/openbox --startup /usr/lib/arm-linux-gnueabihf/openbox-autostart OPENBOX
├─1475 /usr/lib/chromium-browser/chromium-browser-v7 --enable-pinch --simulate-outdated-no-au=Tue, 31 Dec 2099 23:59:
├─1527 /usr/lib/chromium-browser/crashpad_handler --monitor-self --monitor-self-annotation=ptype=crashpad-handler --d
├─1529 /usr/lib/chromium-browser/crashpad_handler --no-periodic-tasks --monitor-self-annotation=ptype=crashpad-handle
├─1533 /usr/lib/chromium-browser/chromium-browser-v7 --type=zygote --no-zygote-sandbox --force-device-scale-factor=1
├─1534 /usr/lib/chromium-browser/chromium-browser-v7 --type=zygote --force-device-scale-factor=1 --enable-crashpad --
├─1538 /usr/lib/chromium-browser/chromium-browser-v7 --type=zygote --force-device-scale-factor=1 --enable-crashpad --
├─1596 /usr/lib/chromium-browser/chromium-browser-v7 --type=utility --utility-sub-type=network.mojom.NetworkService -
├─1613 /usr/lib/chromium-browser/chromium-browser-v7 --type=gpu-process --field-trial-handle=6593637417922341856,1117
├─1618 /usr/lib/chromium-browser/chromium-browser-v7 --type=utility --utility-sub-type=storage.mojom.StorageService -
├─1626 /usr/lib/chromium-browser/chromium-browser-v7 --type=broker
├─1651 /usr/lib/chromium-browser/chromium-browser-v7 --type=renderer --disable-breakpad --force-device-scale-factor=1
└─1652 /usr/lib/chromium-browser/chromium-browser-v7 --type=renderer --disable-breakpad --force-device-scale-factor=1
Jan 17 21:07:22 livingroom startx[1350]: Current version of pixman: 0.36.0
Jan 17 21:07:22 livingroom startx[1350]: Before reporting problems, check http://wiki.x.org
Jan 17 21:07:22 livingroom startx[1350]: to make sure that you have the latest version.
Jan 17 21:07:22 livingroom startx[1350]: Markers: (--) probed, (**) from config file, (==) default setting,
Jan 17 21:07:22 livingroom startx[1350]: (++) from command line, (!!) notice, (II) informational,
Jan 17 21:07:22 livingroom startx[1350]: (WW) warning, (EE) error, (NI) not implemented, (??) unknown.
Jan 17 21:07:22 livingroom startx[1350]: (==) Log file: "/var/log/Xorg.0.log", Time: Wed Jan 17 21:07:22 2024
Jan 17 21:07:22 livingroom startx[1350]: (==) Using config directory: "/etc/X11/xorg.conf.d"
Jan 17 21:07:22 livingroom startx[1350]: (==) Using system config directory "/usr/share/X11/xorg.conf.d"
Jan 17 21:07:24 livingroom startx[1350]: (II) modeset(0): Initializing kms color map for depth 24, 8 bpc.
cat /var/log/Xorg.0.log
[ 35.536]
X.Org X Server 1.20.4
X Protocol Version 11, Revision 0
[ 35.536] Build Operating System: Linux 5.4.0-109-generic armv8l Raspbian
[ 35.536] Current Operating System: Linux livingroom 6.1.58-v7l+ #1690 SMP Tue Oct 17 15:36:02 BST 2023 armv7l
[ 35.536] Kernel command line: coherent_pool=1M 8250.nr_uarts=0 snd_bcm2835.enable_headphones=0 snd_bcm2835.enable_headphones=1 snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_hdmi=0 video=HDMI-A-1:640x480M@60D smsc95xx.macaddr=E4:5F:01:24:81:F9 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 splash plymouth.ignore-serial-consoles dwc_otg.fiq_enable=1 dwc_otg.fiq_fsm_enable=1 dwc_otg.fiq_fsm_mask=0xF dwc_otg.nak_holdoff=1 quiet console=ttyS0,115200 console=tty1 imgpart=/dev/mmcblk0p2 imgfile=/volumio_current.sqsh rootwait bootdelay=5 elevator=noop logo.nologo vt.global_cursor_default=0 net.ifnames=0 snd-bcm2835.enable_compat_alsa= snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_headphones=1 loglevel=0
[ 35.536] Build Date: 04 April 2023 07:50:56AM
[ 35.536] xorg-server 2:1.20.4-1+rpt4+deb10u9 (https://www.debian.org/support)
[ 35.536] Current version of pixman: 0.36.0
[ 35.536] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 35.536] Markers: (--) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 35.537] (==) Log file: "/var/log/Xorg.0.log", Time: Wed Jan 17 21:07:22 2024
[ 35.546] (==) Using config directory: "/etc/X11/xorg.conf.d"
[ 35.546] (==) Using system config directory "/usr/share/X11/xorg.conf.d"
[ 35.551] (==) No Layout section. Using the first Screen section.
[ 35.551] (==) No screen section available. Using defaults.
[ 35.551] (**) |-->Screen "Default Screen Section" (0)
[ 35.551] (**) | |-->Monitor "<default monitor>"
[ 35.555] (==) No monitor specified for screen "Default Screen Section".
Using a default monitor configuration.
[ 35.555] (==) Automatically adding devices
[ 35.555] (==) Automatically enabling devices
[ 35.555] (==) Automatically adding GPU devices
[ 35.560] (==) Max clients allowed: 256, resource mask: 0x1fffff
[ 35.565] (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist.
[ 35.565] Entry deleted from font path.
[ 35.566] (==) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/75dpi,
built-ins
[ 35.566] (==) ModulePath set to "/usr/lib/xorg/modules"
[ 35.566] (II) The server relies on udev to provide the list of input devices.
If no devices become available, reconfigure udev or disable AutoAddDevices.
[ 35.566] (II) Loader magic: 0x1fdf80
[ 35.566] (II) Module ABI versions:
[ 35.566] X.Org ANSI C Emulation: 0.4
[ 35.566] X.Org Video Driver: 24.0
[ 35.566] X.Org XInput driver : 24.1
[ 35.566] X.Org Server Extension : 10.0
[ 35.567] (--) using VT number 2
[ 35.567] (II) systemd-logind: logind integration requires -keeptty and -keeptty was not provided, disabling logind integration
[ 35.570] (II) xfree86: Adding drm device (/dev/dri/card1)
[ 35.595] (II) xfree86: Adding drm device (/dev/dri/card0)
[ 35.596] (II) no primary bus or device found
[ 35.596] falling back to /sys/devices/platform/gpu/drm/card1
[ 35.596] (II) LoadModule: "glx"
[ 35.600] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 35.637] (II) Module glx: vendor="X.Org Foundation"
[ 35.637] compiled for 1.20.4, module version = 1.0.0
[ 35.637] ABI class: X.Org Server Extension, version 10.0
[ 35.637] (==) Matched modesetting as autoconfigured driver 0
[ 35.637] (==) Matched fbdev as autoconfigured driver 1
[ 35.637] (==) Assigned the driver to the xf86ConfigLayout
[ 35.637] (II) LoadModule: "modesetting"
[ 35.638] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so
[ 35.641] (II) Module modesetting: vendor="X.Org Foundation"
[ 35.641] compiled for 1.20.4, module version = 1.20.4
[ 35.641] Module class: X.Org Video Driver
[ 35.641] ABI class: X.Org Video Driver, version 24.0
[ 35.641] (II) LoadModule: "fbdev"
[ 35.641] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so
[ 35.643] (II) Module fbdev: vendor="X.Org Foundation"
[ 35.643] compiled for 1.20.3, module version = 0.5.0
[ 35.643] Module class: X.Org Video Driver
[ 35.643] ABI class: X.Org Video Driver, version 24.0
[ 35.643] (II) modesetting: Driver for Modesetting Kernel Drivers: kms
[ 35.643] (II) FBDEV: driver for framebuffer: fbdev
[ 35.675] (II) modeset(0): using drv /dev/dri/card1
[ 35.675] (WW) Falling back to old probe method for fbdev
[ 35.675] (II) Loading sub module "fbdevhw"
[ 35.675] (II) LoadModule: "fbdevhw"
[ 35.675] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so
[ 35.679] (II) Module fbdevhw: vendor="X.Org Foundation"
[ 35.679] compiled for 1.20.4, module version = 0.0.2
[ 35.679] ABI class: X.Org Video Driver, version 24.0
[ 35.680] (II) modeset(0): Creating default Display subsection in Screen section
"Default Screen Section" for depth/fbbpp 24/32
[ 35.680] (==) modeset(0): Depth 24, (==) framebuffer bpp 32
[ 35.680] (==) modeset(0): RGB weight 888
[ 35.680] (==) modeset(0): Default visual is TrueColor
[ 35.680] (II) Loading sub module "glamoregl"
[ 35.680] (II) LoadModule: "glamoregl"
[ 35.680] (II) Loading /usr/lib/xorg/modules/libglamoregl.so
[ 35.715] (II) Module glamoregl: vendor="X.Org Foundation"
[ 35.715] compiled for 1.20.4, module version = 1.0.1
[ 35.715] ABI class: X.Org ANSI C Emulation, version 0.4
[ 36.934] (II) modeset(0): glamor X acceleration enabled on V3D 4.2
[ 36.934] (II) modeset(0): glamor initialized
[ 36.935] (II) modeset(0): Output HDMI-1 has no monitor section
[ 36.936] (II) modeset(0): Output HDMI-2 has no monitor section
[ 36.936] (II) modeset(0): Output DSI-1 has no monitor section
[ 36.960] (II) modeset(0): EDID for output HDMI-1
[ 36.961] (II) modeset(0): Printing probed modes for output HDMI-1
[ 36.961] (II) modeset(0): Modeline "640x480"x59.9 23.98 640 664 720 800 480 483 487 500 -hsync +vsync (30.0 kHz)
[ 36.961] (II) modeset(0): EDID for output HDMI-2
[ 36.961] (II) modeset(0): EDID for output DSI-1
[ 36.961] (II) modeset(0): Printing probed modes for output DSI-1
[ 36.961] (II) modeset(0): Modeline "480x640"x60.8 50.00 480 630 680 830 640 790 840 990 (60.2 kHz eP)
[ 36.961] (II) modeset(0): Output HDMI-1 connected
[ 36.961] (II) modeset(0): Output HDMI-2 disconnected
[ 36.961] (II) modeset(0): Output DSI-1 connected
[ 36.961] (II) modeset(0): Using sloppy heuristic for initial modes
[ 36.961] (II) modeset(0): Output HDMI-1 using initial mode 640x480 +0+0
[ 36.961] (II) modeset(0): Output DSI-1 using initial mode 480x640 +0+0
[ 36.961] (==) modeset(0): Using gamma correction (1.0, 1.0, 1.0)
[ 36.961] (==) modeset(0): DPI set to (96, 96)
[ 36.961] (II) Loading sub module "fb"
[ 36.961] (II) LoadModule: "fb"
[ 36.961] (II) Loading /usr/lib/xorg/modules/libfb.so
[ 36.967] (II) Module fb: vendor="X.Org Foundation"
[ 36.967] compiled for 1.20.4, module version = 1.0.0
[ 36.967] ABI class: X.Org ANSI C Emulation, version 0.4
[ 36.967] (II) UnloadModule: "fbdev"
[ 36.967] (II) Unloading fbdev
[ 36.967] (II) UnloadSubModule: "fbdevhw"
[ 36.967] (II) Unloading fbdevhw
[ 37.091] (==) modeset(0): Backing store enabled
[ 37.091] (==) modeset(0): Silken mouse enabled
[ 37.293] (II) modeset(0): Initializing kms color map for depth 24, 8 bpc.
[ 37.293] (==) modeset(0): DPMS enabled
[ 37.294] (II) modeset(0): [DRI2] Setup complete
[ 37.294] (II) modeset(0): [DRI2] DRI driver: vc4
[ 37.294] (II) modeset(0): [DRI2] VDPAU driver: vc4
[ 37.294] (II) Initializing extension Generic Event Extension
[ 37.295] (II) Initializing extension SHAPE
[ 37.295] (II) Initializing extension MIT-SHM
[ 37.296] (II) Initializing extension XInputExtension
[ 37.301] (II) Initializing extension XTEST
[ 37.301] (II) Initializing extension BIG-REQUESTS
[ 37.302] (II) Initializing extension SYNC
[ 37.302] (II) Initializing extension XKEYBOARD
[ 37.303] (II) Initializing extension XC-MISC
[ 37.304] (II) Initializing extension SECURITY
[ 37.304] (II) Initializing extension XFIXES
[ 37.305] (II) Initializing extension RENDER
[ 37.305] (II) Initializing extension RANDR
[ 37.307] (II) Initializing extension COMPOSITE
[ 37.307] (II) Initializing extension DAMAGE
[ 37.308] (II) Initializing extension MIT-SCREEN-SAVER
[ 37.308] (II) Initializing extension DOUBLE-BUFFER
[ 37.309] (II) Initializing extension RECORD
[ 37.310] (II) Initializing extension DPMS
[ 37.310] (II) Initializing extension Present
[ 37.311] (II) Initializing extension DRI3
[ 37.311] (II) Initializing extension X-Resource
[ 37.312] (II) Initializing extension XVideo
[ 37.313] (II) Initializing extension XVideo-MotionCompensation
[ 37.313] (II) Initializing extension SELinux
[ 37.313] (II) SELinux: Disabled on system
[ 37.313] (II) Initializing extension GLX
[ 37.656] (II) AIGLX: Loaded and initialized vc4
[ 37.656] (II) GLX: Initialized DRI2 GL provider for screen 0
[ 37.656] (II) Initializing extension XFree86-VidModeExtension
[ 37.656] (II) Initializing extension XFree86-DGA
[ 37.657] (II) Initializing extension XFree86-DRI
[ 37.657] (II) Initializing extension DRI2
[ 37.660] (II) modeset(0): Damage tracking initialized
[ 37.660] (II) modeset(0): Setting screen physical size to 169 x 169
[ 37.853] (II) config/udev: Adding input device rotary@11 (/dev/input/event4)
[ 37.853] (II) No input driver specified, ignoring this device.
[ 37.853] (II) This device may have been added with another device file.
[ 37.854] (II) config/udev: Adding input device rotary@17 (/dev/input/event3)
[ 37.854] (II) No input driver specified, ignoring this device.
[ 37.854] (II) This device may have been added with another device file.
[ 37.855] (II) config/udev: Adding input device Goodix Capacitive TouchScreen (/dev/input/event1)
[ 37.855] (**) Goodix Capacitive TouchScreen: Applying InputClass "libinput keyboard catchall"
[ 37.855] (**) Goodix Capacitive TouchScreen: Applying InputClass "libinput touchscreen catchall"
[ 37.856] (**) Goodix Capacitive TouchScreen: Applying InputClass "Touch rotation"
[ 37.856] (II) LoadModule: "libinput"
[ 37.856] (II) Loading /usr/lib/xorg/modules/input/libinput_drv.so
[ 37.880] (II) Module libinput: vendor="X.Org Foundation"
[ 37.880] compiled for 1.20.3, module version = 0.28.2
[ 37.880] Module class: X.Org XInput Driver
[ 37.880] ABI class: X.Org XInput driver, version 24.1
[ 37.880] (II) Using input driver 'libinput' for 'Goodix Capacitive TouchScreen'
[ 37.880] (**) Goodix Capacitive TouchScreen: always reports core events
[ 37.880] (**) Option "Device" "/dev/input/event1"
[ 37.880] (**) Option "_source" "server/udev"
[ 37.900] (II) event1 - Goodix Capacitive TouchScreen: is tagged by udev as: Keyboard Touchscreen
[ 37.901] (II) event1 - Goodix Capacitive TouchScreen: device is a keyboard
[ 37.901] (II) event1 - Goodix Capacitive TouchScreen: device is a touch device
[ 37.902] (II) event1 - Goodix Capacitive TouchScreen: device removed
[ 37.970] (II) libinput: Goodix Capacitive TouchScreen: needs a virtual subdevice
[ 37.970] (**) Option "config_info" "udev:/sys/devices/platform/soc/fe205000.i2c/i2c-22/i2c-10/10-0014/input/input0/event1"
[ 37.970] (II) XINPUT: Adding extended input device "Goodix Capacitive TouchScreen" (type: TOUCHSCREEN, id 6)
[ 37.970] (**) Option "AccelerationScheme" "none"
[ 37.970] (**) Goodix Capacitive TouchScreen: (accel) selected scheme none/0
[ 37.970] (**) Goodix Capacitive TouchScreen: (accel) acceleration factor: 2.000
[ 37.970] (**) Goodix Capacitive TouchScreen: (accel) acceleration threshold: 4
[ 37.975] (II) event1 - Goodix Capacitive TouchScreen: is tagged by udev as: Keyboard Touchscreen
[ 37.976] (II) event1 - Goodix Capacitive TouchScreen: device is a keyboard
[ 37.976] (II) event1 - Goodix Capacitive TouchScreen: device is a touch device
[ 37.978] (II) config/udev: Adding input device Goodix Capacitive TouchScreen (/dev/input/mouse0)
[ 37.978] (II) No input driver specified, ignoring this device.
[ 37.978] (II) This device may have been added with another device file.
[ 37.980] (II) config/udev: Adding input device vc4-hdmi-0 (/dev/input/event0)
[ 37.980] (**) vc4-hdmi-0: Applying InputClass "libinput keyboard catchall"
[ 37.980] (II) Using input driver 'libinput' for 'vc4-hdmi-0'
[ 37.980] (**) vc4-hdmi-0: always reports core events
[ 37.980] (**) Option "Device" "/dev/input/event0"
[ 37.980] (**) Option "_source" "server/udev"
[ 37.983] (II) event0 - vc4-hdmi-0: is tagged by udev as: Keyboard Pointingstick
[ 37.984] (II) event0 - vc4-hdmi-0: device is a pointer
[ 37.984] (II) event0 - vc4-hdmi-0: device is a keyboard
[ 37.984] (II) event0 - vc4-hdmi-0: device removed
[ 38.030] (II) libinput: vc4-hdmi-0: needs a virtual subdevice
[ 38.030] (**) Option "config_info" "udev:/sys/devices/platform/soc/fef00700.hdmi/rc/rc0/input1/event0"
[ 38.030] (II) XINPUT: Adding extended input device "vc4-hdmi-0" (type: MOUSE, id 7)
[ 38.030] (**) Option "AccelerationScheme" "none"
[ 38.030] (**) vc4-hdmi-0: (accel) selected scheme none/0
[ 38.030] (**) vc4-hdmi-0: (accel) acceleration factor: 2.000
[ 38.030] (**) vc4-hdmi-0: (accel) acceleration threshold: 4
[ 38.033] (II) event0 - vc4-hdmi-0: is tagged by udev as: Keyboard Pointingstick
[ 38.034] (II) event0 - vc4-hdmi-0: device is a pointer
[ 38.034] (II) event0 - vc4-hdmi-0: device is a keyboard
[ 38.036] (II) config/udev: Adding input device vc4-hdmi-1 (/dev/input/event2)
[ 38.036] (**) vc4-hdmi-1: Applying InputClass "libinput keyboard catchall"
[ 38.036] (II) Using input driver 'libinput' for 'vc4-hdmi-1'
[ 38.036] (**) vc4-hdmi-1: always reports core events
[ 38.036] (**) Option "Device" "/dev/input/event2"
[ 38.036] (**) Option "_source" "server/udev"
[ 38.039] (II) event2 - vc4-hdmi-1: is tagged by udev as: Keyboard Pointingstick
[ 38.040] (II) event2 - vc4-hdmi-1: device is a pointer
[ 38.040] (II) event2 - vc4-hdmi-1: device is a keyboard
[ 38.041] (II) event2 - vc4-hdmi-1: device removed
[ 38.100] (II) libinput: vc4-hdmi-1: needs a virtual subdevice
[ 38.100] (**) Option "config_info" "udev:/sys/devices/platform/soc/fef05700.hdmi/rc/rc1/input3/event2"
[ 38.100] (II) XINPUT: Adding extended input device "vc4-hdmi-1" (type: MOUSE, id 8)
[ 38.100] (**) Option "AccelerationScheme" "none"
[ 38.100] (**) vc4-hdmi-1: (accel) selected scheme none/0
[ 38.100] (**) vc4-hdmi-1: (accel) acceleration factor: 2.000
[ 38.100] (**) vc4-hdmi-1: (accel) acceleration threshold: 4
[ 38.103] (II) event2 - vc4-hdmi-1: is tagged by udev as: Keyboard Pointingstick
[ 38.104] (II) event2 - vc4-hdmi-1: device is a pointer
[ 38.104] (II) event2 - vc4-hdmi-1: device is a keyboard
[ 38.147] (**) Goodix Capacitive TouchScreen: Applying InputClass "libinput keyboard catchall"
[ 38.147] (**) Goodix Capacitive TouchScreen: Applying InputClass "libinput touchscreen catchall"
[ 38.147] (**) Goodix Capacitive TouchScreen: Applying InputClass "Touch rotation"
[ 38.147] (II) Using input driver 'libinput' for 'Goodix Capacitive TouchScreen'
[ 38.147] (**) Goodix Capacitive TouchScreen: always reports core events
[ 38.147] (**) Option "Device" "/dev/input/event1"
[ 38.147] (**) Option "_source" "_driver/libinput"
[ 38.147] (II) libinput: Goodix Capacitive TouchScreen: is a virtual subdevice
[ 38.147] (**) Option "config_info" "udev:/sys/devices/platform/soc/fe205000.i2c/i2c-22/i2c-10/10-0014/input/input0/event1"
[ 38.147] (II) XINPUT: Adding extended input device "Goodix Capacitive TouchScreen" (type: KEYBOARD, id 9)
[ 38.147] (**) Option "xkb_model" "pc105"
[ 38.147] (**) Option "xkb_layout" "us"
[ 38.148] (**) vc4-hdmi-0: Applying InputClass "libinput keyboard catchall"
[ 38.148] (II) Using input driver 'libinput' for 'vc4-hdmi-0'
[ 38.148] (**) vc4-hdmi-0: always reports core events
[ 38.148] (**) Option "Device" "/dev/input/event0"
[ 38.148] (**) Option "_source" "_driver/libinput"
[ 38.148] (II) libinput: vc4-hdmi-0: is a virtual subdevice
[ 38.148] (**) Option "config_info" "udev:/sys/devices/platform/soc/fef00700.hdmi/rc/rc0/input1/event0"
[ 38.148] (II) XINPUT: Adding extended input device "vc4-hdmi-0" (type: KEYBOARD, id 10)
[ 38.148] (**) Option "xkb_model" "pc105"
[ 38.148] (**) Option "xkb_layout" "us"
[ 38.148] (**) vc4-hdmi-1: Applying InputClass "libinput keyboard catchall"
[ 38.148] (II) Using input driver 'libinput' for 'vc4-hdmi-1'
[ 38.148] (**) vc4-hdmi-1: always reports core events
[ 38.148] (**) Option "Device" "/dev/input/event2"
[ 38.148] (**) Option "_source" "_driver/libinput"
[ 38.148] (II) libinput: vc4-hdmi-1: is a virtual subdevice
[ 38.148] (**) Option "config_info" "udev:/sys/devices/platform/soc/fef05700.hdmi/rc/rc1/input3/event2"
[ 38.148] (II) XINPUT: Adding extended input device "vc4-hdmi-1" (type: KEYBOARD, id 11)
[ 38.148] (**) Option "xkb_model" "pc105"
[ 38.148] (**) Option "xkb_layout" "us"
[ 38.220] (II) config/udev: Adding input device rotary@11 (/dev/input/event4)
[ 38.220] (II) No input driver specified, ignoring this device.
[ 38.220] (II) This device may have been added with another device file.
[ 45.244] (II) modeset(0): Disabling kernel dirty updates, not required.
xrandr --display :0 --query
Screen 0: minimum 320 x 200, current 640 x 640, maximum 7680 x 7680
HDMI-1 connected primary 640x480+0+0 (normal left inverted right x axis y axis) 0mm x 0mm
640x480 59.94*
HDMI-2 disconnected (normal left inverted right x axis y axis)
DSI-1 connected 480x640+0+0 (normal left inverted right x axis y axis) 0mm x 0mm
480x640 60.85*+
running below rotates it properly, but doesn’t stick:
xrandr --display :0 --output DSI-1 --rotate left
So for the time being I did the following, but not sure if this is the proper way to do it. But it rotates correctly and sticks after a reboot.
mkdir /home/volumio/.config/openbox
cat >> /home/volumio/.config/openbox/autostart <<EOL
xrandr --output DSI-1 --rotate left
EOL
Any suggestions?
