Public Beta Test: Audio Without Compromise - Plugin Compatibility for Volumio on Bookworm

[ClaesM]

Hi everyone!

Does anyone here know if there will be an working LMS plugin?

Regards C

[balbuze]

Hi!
Unfortunately, nothing in the pipe…

[ClaesM]

Thanks!

Then we know. Just wait and see…

Regards C

[Newbiggen]

GPIO-Buttons 1.8.4
RPi 4 Model B Rev 1.4
IQaudIO DAC Plus Audio HAT
Volumio 4.021
I have a problem with a simple shut-down button connected between GPIO 16 and 3.3V
The plugin test mode has been set to “TRUE” and the GPIO-Buttons plugin appears to have installed correctly. Enable Shutdown has been selected and the Pin set to 16
Not working though…
I have been using exactly the same arrangement with Volumio 3.832 - in fact exactly the same hardware - with no problems.
Am I missing something - any suggestions?

[Wheaten]

Try a different GPIO like 22,13,5,6

[Newbiggen]

I have tried the other GPIOs as you suggest, but no luck - by the way, GPIO 22 is used for MUTE on the IQAudio DAC+ HAT

[Newbiggen]

Solved!
In version 4.021 the selected GPIO pin has to be grounded to cause a shutdown - this is the opposite to the way it works with version 3.832 where the pin taken high for a shutdown

[jajao555]

Are there threads for specific plugins?

I get a “No Results” when trying to use Bandcamp

[Wheaten]

For bandcamp there is a specific plugin, but to keep thing organized, this topic was opened for V4.0xx

[jocoman]

Autostart on V4 does not appear to be working. I have autostart plugin ver 4.0.4.
This is using my v4 test system comprised of an rpi3 and a touchscreen and a hifiberry dac.
For me, autostart is critcal and I would not move to v4 without this functionality.
Let me know what debug info you would like as it is setup permanetly on my V4 test system. thank-you

[Wheaten]

@jocoman

Have you played with the Delay (increase) as BW leans more on the resources then Buster?

[jocoman]

Yes I have. V3 system runs well at 35,000 i boosted v4 system to 50,000 and no joy.
I’ll try going higher and report

[Wheaten]

Just installed it on rPi5 and it works without issues.

[jocoman]

OK. I boosted it to 80,000 and it worked. So then i fine tuned it down to 65,000 before I get issues Gee thats one heck of a delay.

[Wheaten]

Yeah the rPi3 needs some time to to load BW and the touchscreen plugin.

[Fabian_Barile]

Started from a fresh install of Volumio: 4.062 , and also tried upgrades from test update channel.
In all cases I have issues with the Touch Display Plugin and cannot get it working.

• Version of Volumio: 4.062
• Kernel: 6.12.47-v7+
• Model: Raspberry Pi 3 Model B Plus Rev 1.3 Raspberry Pi
• Touch Display Plugin , version v3.5.6

Here is the log :
http://logs.volumio.org/volumio/D5SRPCb.html

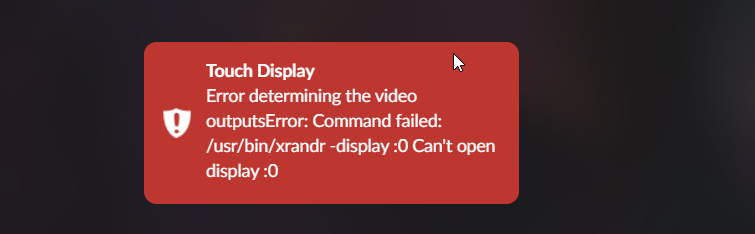

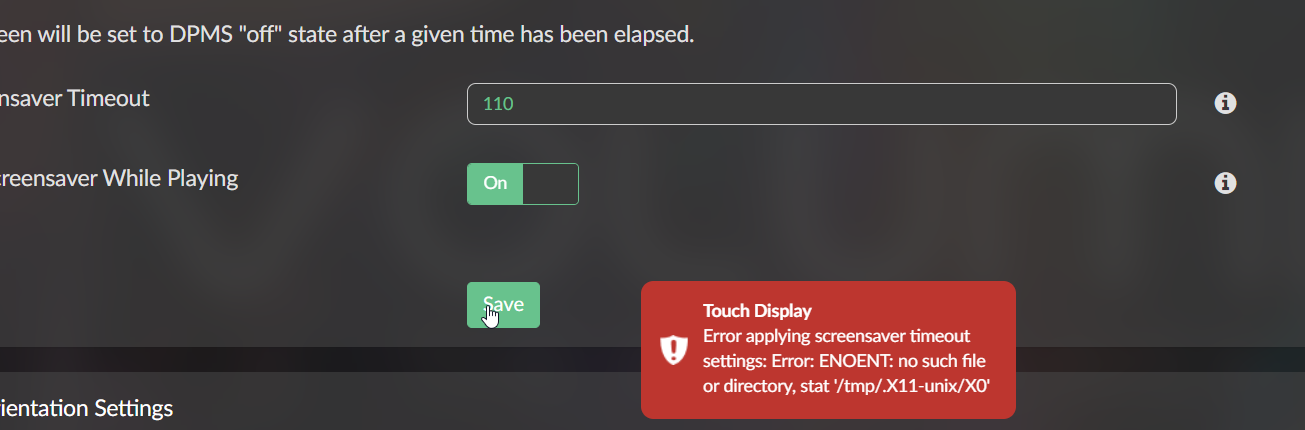

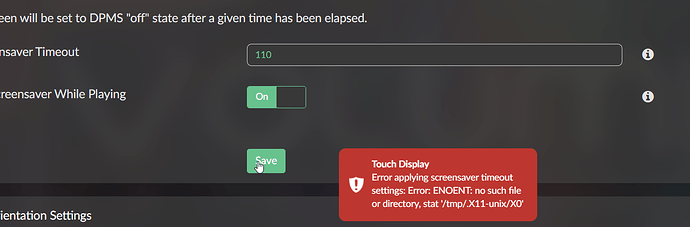

I keep get errors like these :

and

Any hint ?

[calogero69]

Installing a new 4.064, Raspberry Pi 5, NVMe 128Gb boot
Wired connection. Only Peppymeter Basic doesn’t work; it doesn’t boot completely. I uninstalled and reinstalled, but nothing works.
is there a solution? thanks

[nerd]

Hey @calogero69,

Thank you for reporting this issue with Peppymeter Basic on Volumio 4.064. However, I need more specific information to investigate what “doesn’t boot completely” actually means.

Required Information:

To properly investigate, I need the following details:

1. Log file - Submit log from http://volumio.local/dev and provide the link here

   • Guide: How to send a log link for a bug report?

2. Exact symptoms - What does “doesn’t boot completely” mean?

   • Does the Raspberry Pi fail to boot at all?
   • Does Volumio boot but the UI doesn’t load?
   • Does Volumio load but Peppymeter Basic fails to start?
   • Do you see error messages on screen?
   • At what stage does the process stop?

3. Plugin configuration - What other plugins are installed besides Peppymeter Basic?

   • List all active plugins
   • Did you install anything else on this fresh installation?

4. Baseline verification:

   • Does Volumio 4.064 boot successfully WITHOUT Peppymeter Basic installed?
   • Can you access the Volumio UI and play music without the plugin?

Context Note:

In your previous post about the Waveshare 11.9" display, you reported that Peppymeter Basic “works perfectly” on Volumio 4.062. This suggests something changed between 4.062 and 4.064, or there’s a difference in your configuration between the two installations.

Without logs and clear symptom descriptions, I cannot identify the root cause. Please provide the requested information so I can help you resolve this.

Reference:

For future reports, please follow the help request template guidelines:

Tips and guidelines to get faster help

Tips and guidelines to get faster help Before starting a new thread, use the search or check the Help Center. If you cannot find what you are looking for VOLUMIO HELP REQUEST TEMPLATE To receive help, you must provide clear and specific information. We cannot guess. Do not write “latest version”. Always provide exact version numbers and device details. Screenshots of the System Information page are not sufficient. Type the version number in your report. Language rule All posts must be wri…

Kind Regards,

[calogero69]

@nerd You’re right, but unfortunately my English isn’t very good with Google Translate. I’ll try to be clearer. The new version works and boots perfectly, and even listening to music is perfect.

My plugins are: Peppymeter Basic, Audiophonics Evo Sabre, Remote Pi, and Touch Display.

Everything works perfectly, except Peppymeter Basic. That is, the plugin is active, but the VU meters aren’t displayed.
I’ll try to create a log file and post it.
Regarding the volume bootloader rotation, I’ll carefully read your note and appreciate the great work you’ve done, even though it will be a bit difficult for me because I’m not very experienced. Thanks.

[calogero69]

here is the log file

http://logs.volumio.org/volumio/zqxHfzF.html
