[PLUGIN] MPD OLED - installation & configuration plugin

[Darmur]

@balbuze @supercrab I am also facing problems on the device with software volume, any chance you can update the plugin with this fixed configuration?

[balbuze]

No problem for me. @supercrab you are the author, would you please update, submit and send a PR?

[supercrab]

@balbuze will do later

[Darmur]

thank you both!

[supercrab]

@balbuze @Darmur Plugin updated and PR created. I don’t mess about

[balbuze]

Hi!
Updated to 1.1.3 stable
TY @supercrab

[supercrab]

Thanks @balbuze! It’s working well.

[supercrab]

@Adrii thanks for the update about SPI and Raspberry Pi 5

[Gelo5]

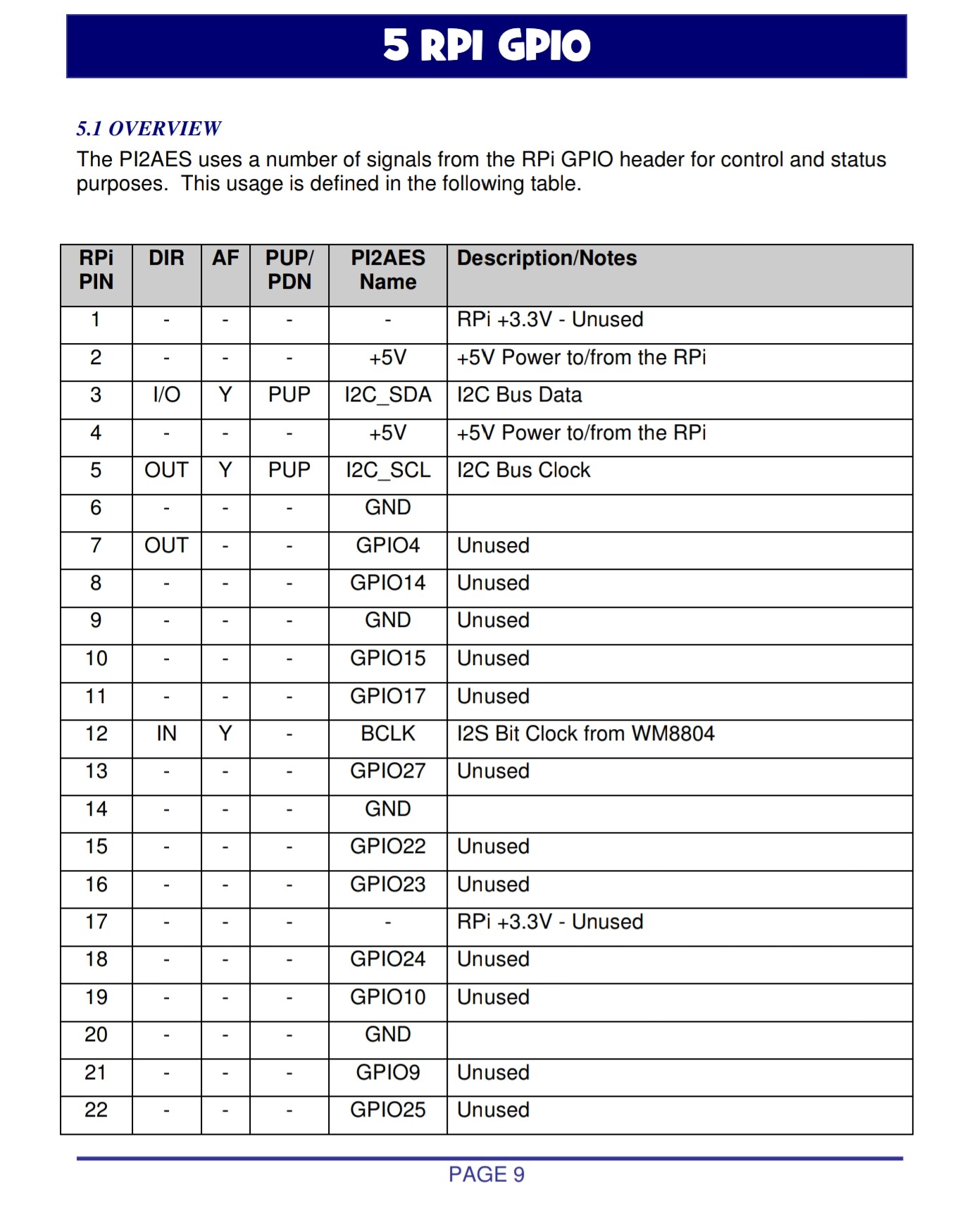

I have a Pi2aes card. Is it possible to connect an OLED mpd to its pins (4)? (soldering from below)

TY

[supercrab]

Yes, it should be fine as the I2C bus can be used for multiple devices

[Gelo5]

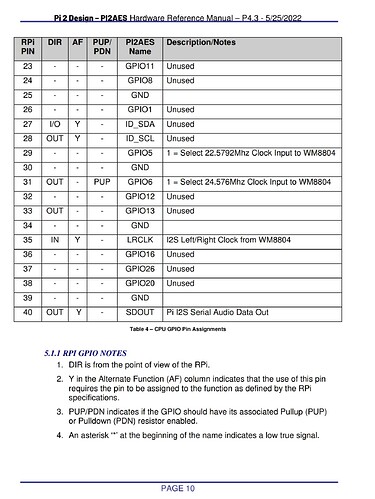

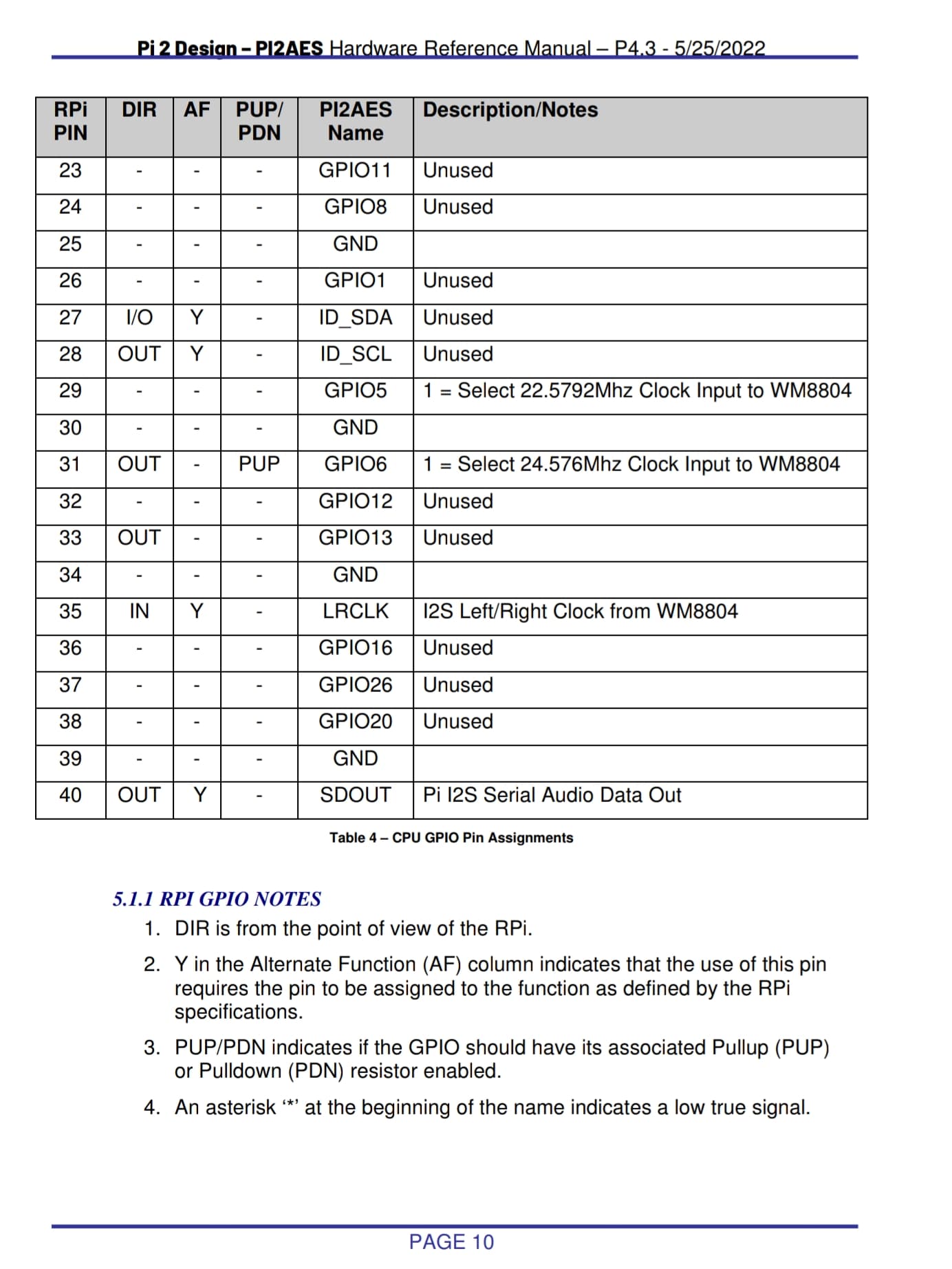

e.g. PIN
1, gnd, 28, 27 - right?
or
1,3,5,GND?

[supercrab]

Yas sir

[Gelo5]

@supercrab - superthanks

[MicMac]

Hello everyone,

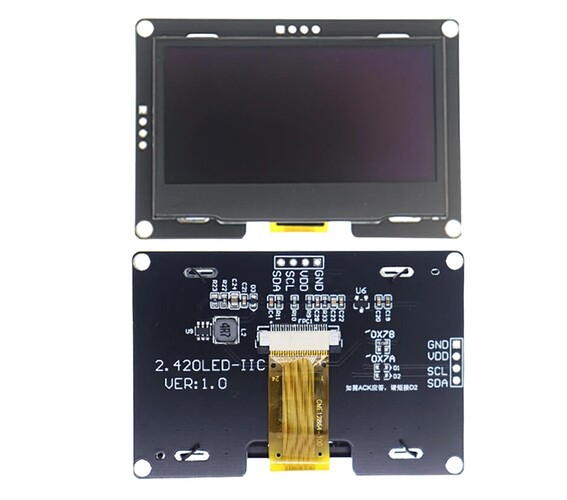

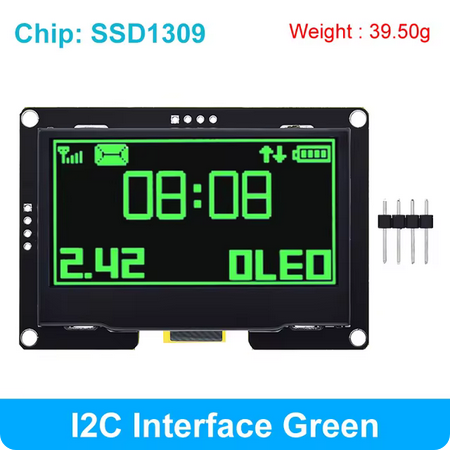

I’m trying to get an OLED LCD screen to work, SSD1309 2.4" I2C 128x64
With an arduino it works, but not with the MDP OLED plugin.

I installed the plugin via the volumio web interface. I scanned the I2C address and set it in the plugin options but nothing happened.

Can you help me?

[supercrab]

Try different screen options.

[MicMac]

Do I have to restart each time?

[supercrab]

Nah, no need to restart

[Gelo5]

@supercrab

Yes, it should be fine as the I2C bus can be used for multiple devices

unfortunately I burned the Pi2aes card!! I didn’t give up, I bought a regular card (Alliexpres, 45$), connected it together with Mpd Oled. It works, but the sound is “intermittent”. If I turn off the plugin - everything plays fine.

[Wheaten]

If the Chinese card uses SDL and/or SDA port, this can happen.

[Gelo5]

This means that neither Pi2aes nor a regular card can be connected in parallel with Mpd OLED
