I am just self-learning how to deploy custom vu meters on Moode. Maybe I’ll take what I learn and apply it after.
1 Like
RPi5 + Volumio 4.069
Peppy-Spectrum 1.0.35
Spotify plugin 4.3.0 or 4.3.2(beta)
When playing spotify track, there is no sound and spectrum not work.
If you play local database music file, the spectrum works well.
Did the spectrum support spotify ? thank you.
Hi Seems indeed that Peppy_Spectrum is not working with Spotify.
When playing a track cat /tmp/peppy_spectrum_fifo stays empty.

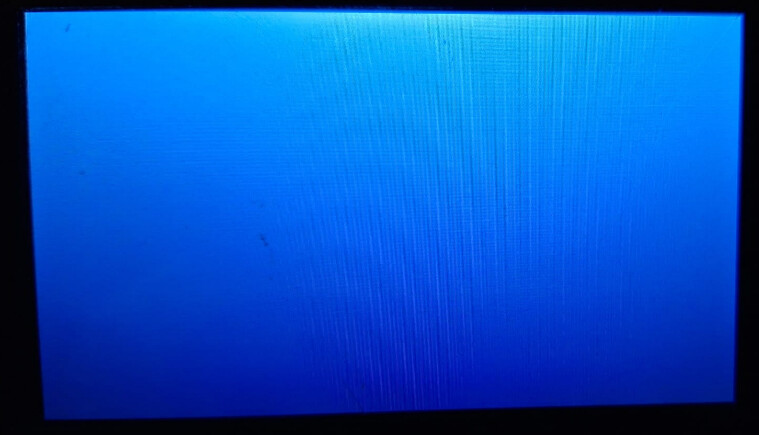

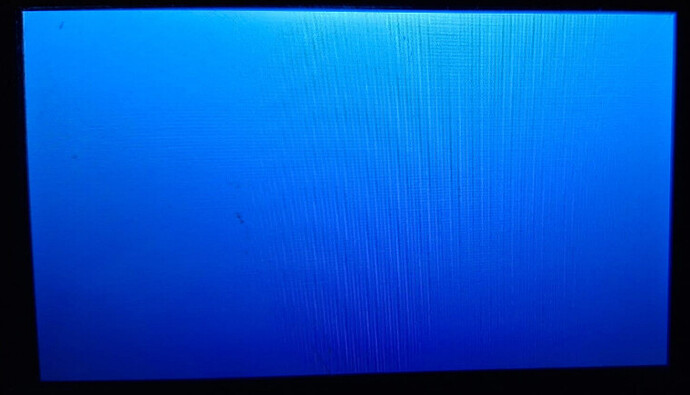

It loads peppy’s background, but then it just stays blank.
Hey! On the same system, does peppymeter_basic work?
If yes, I could update the plugin with the same alsa path.
edit: works on my x86 device…
Need to check, one moment please. Testing on a rPi5.
Peppy_meter basic works with Spotify.
Peppy_Spectrum:
I can confirm that Peppy-meter-Basic works with Spotify on the RPi5.
Also, Peppy-Spectrum does not work with the YouTube 2 plugin.
Thank you.
Hey!
Can you give a try with Peppyspectrum beta v1.0.38?
Please remove previous, reboot and install beta!
TY!

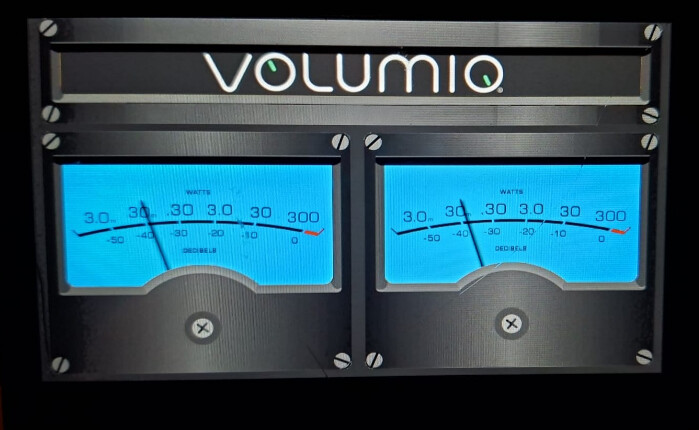

Hi , how do o add this template to peppery meter basic pls , or it is already included ?
2 after I select a list I have to press update then download ?
Thanks
Copy to:
/data/INTERNAL/PeppySpectrum/Templates
From where ? Thanks
V1.0.38 doesn’t seems to work with Spotify.
From where you have unzipped the download.
cd ~
wget https://community.volumio.com/uploads/short-url/gzbcOCARWFOAwPgYIQopnRvZlUP.zip
mkdir /data/INTERNAL/PeppyMeterBasic/Templates/800x480_custom_01
miniunzip gzbcOCARWFOAwPgYIQopnRvZlUP.zip -d /data/INTERNAL/PeppyMeterBasic/Templates/800x480_custom_01/
rm gzbcOCARWFOAwPgYIQopnRvZlUP.zip
2 Likes
GitHub - balbuze
1 Like
Test Peppy-spectrum 1.0.38 with spotify, now there is sound, but the spectrum still black screen.
Does it work with other sources?
Black screen?
Did you test with basic provided spectrum?
Please, send a log link
Does it work with other sources? No
Black screen? Yes
Did you test with basic provided spectrum? Yes s4 and s5

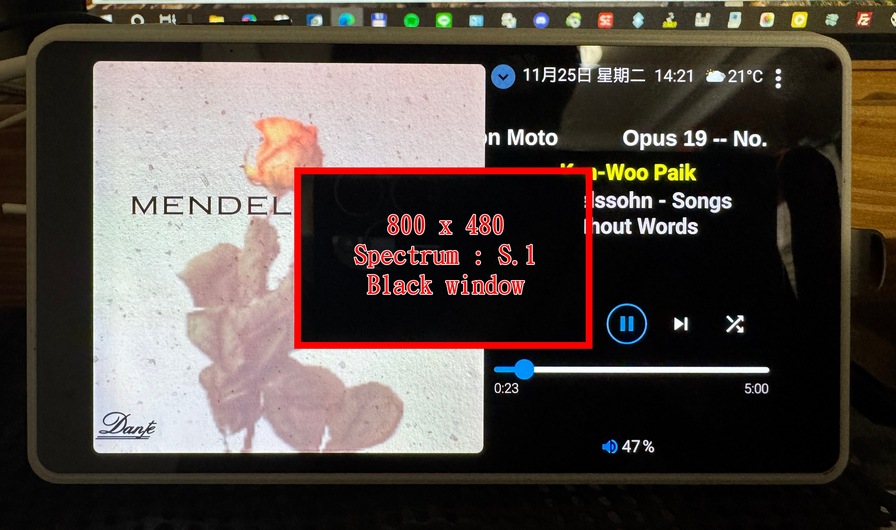

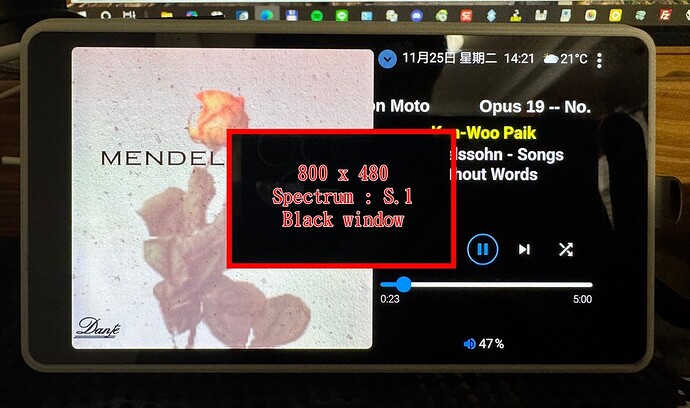

Peppy-spectrum 1.0.38(beta) :
I use basic provided spectrum 800x480, S.1
test local music file, spotify, youtube, web radio,
it all shows 800x480 black window in the center,
with sound, no spectrum.
http://logs.volumio.org/volumio/5h0Js1O.html

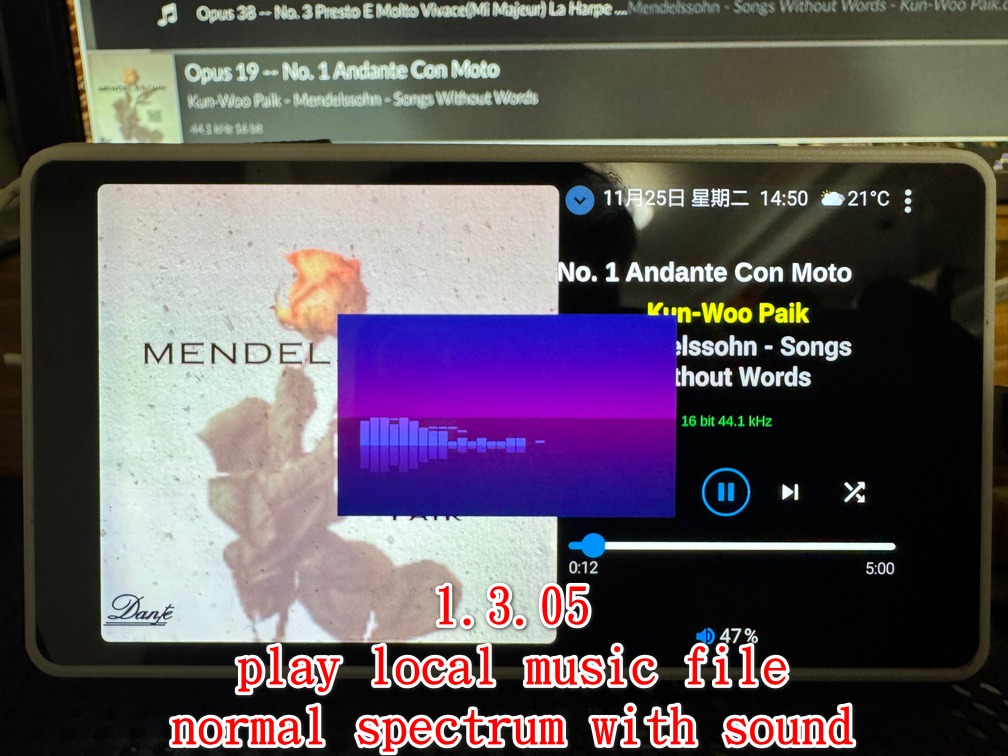

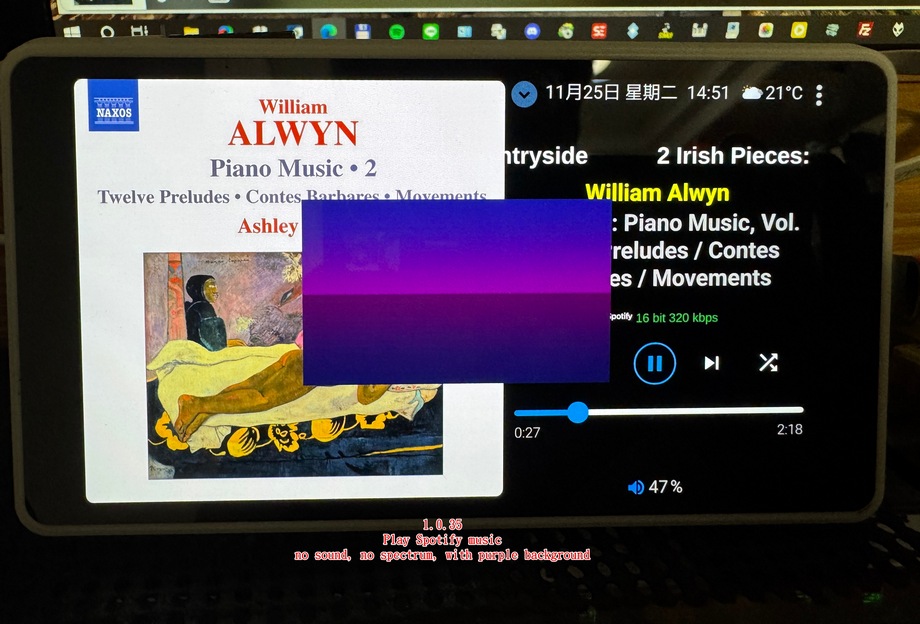

Peppy-spectrum 1.0.35(stable)
for local music file, with sound and spectrum works
for spotify, no sound and spectrum
log for 1.0.35
http://logs.volumio.org/volumio/AalQgUT.html
Thank you !
Hey,!
I see what happens.
My fault… In last stable version, a tweaked version of Peppyspectrum was used to fix the no spectrum issue.
In beta, Peppyspectrum is downloaded from GitHub without the tweak…
I can’t take care of that before the end of the week.
I you feel, you can:
Install last stable version.
Then from ash, copy the folder
cp -r /data/plugins/user_interface/peppyspectrum/Peppyspectrum /home/volumio
Remove the plugin.
Then install last beta.
And copy the previous saved foltin it.
Reboot and test…
It works, thank you !
1 Like
I updated to beta v1.0.39 that includes last mod.
If ok for you, I’ll release as stable
