hi,I’m new here and I have the same Vsdisplay of you with some issue.
I hope you can help me,
1-rspi 5

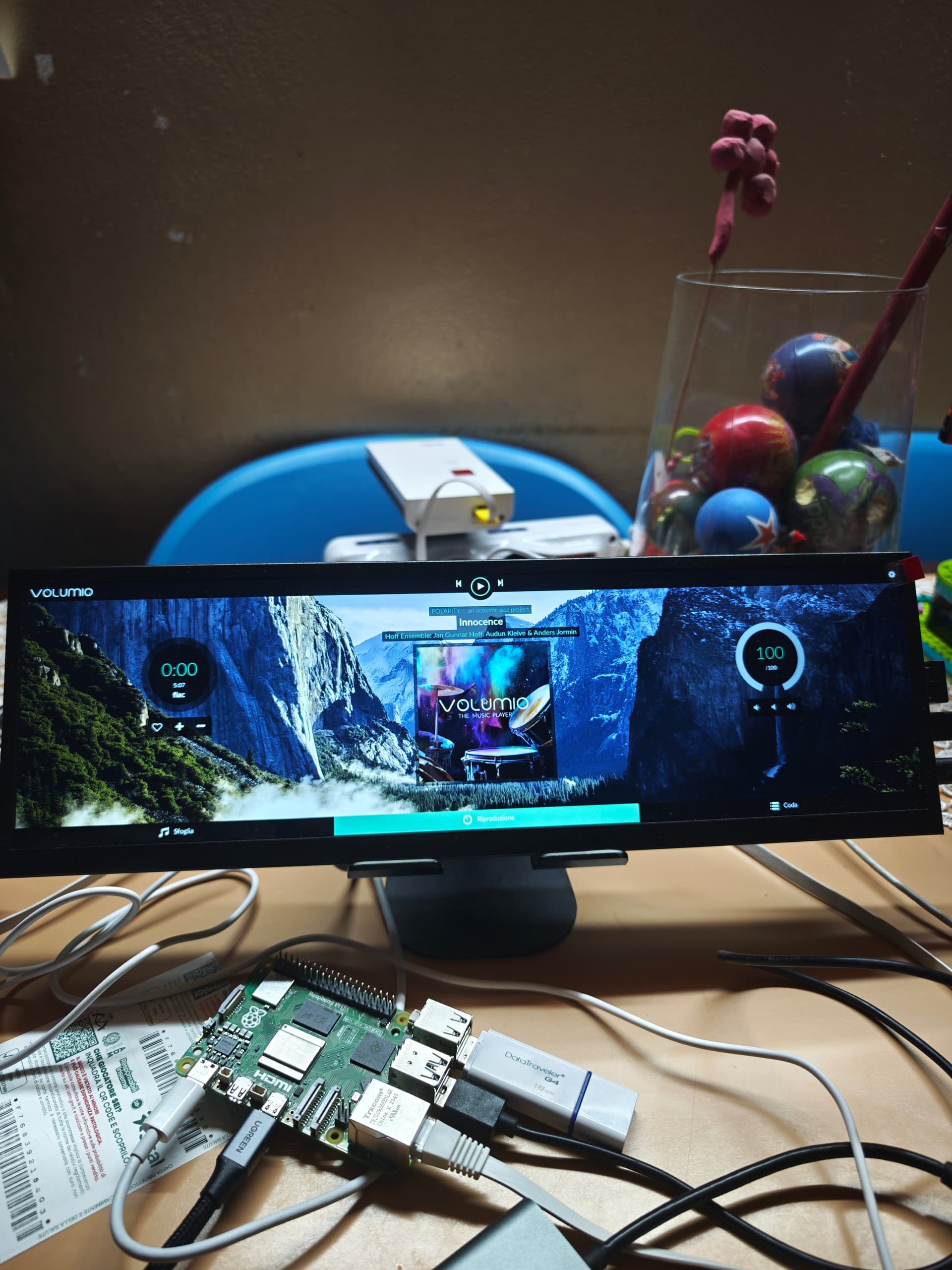

2-correct image aspect (2560 x 720)
3-no touch
4-no peppy meter (tried with peppymeter and putty and peppy meter basic plugin)
note:touch screen is ok with win10 and only one usb C cable
thank in advance
Please post the output of
cat /boot/userconfig.txt
I assume that you have not changed “/boot/config.txt” and “/boot/volumioconfig.txt”. However, if this is the case, also post the output of
cat /boot/config.txt
and
cat /boot/volumioconfig.txt
Hi,no change. I’m not able now but these evening.
If I remenber config.txt and userconfig.txt are empty
thank for fast help
Try (type in user config.txt)
hdmi_cvt=2560 720 60
hdmi_group=2
hdmi_mode=87
max_framebuffer_width=2560
max_framebuffer_height=720
framebuffer_width=2560
framebuffer_height=720
gpu_mem=128
gpu_mem_256=32
gpu_mem_512=32
gpu_mem_1024=128
max_usb_current=1
[pi5]
usb_max_current_enable=1
[all]
include volumioconfig.txt
include userconfig.txt
[cm4]
dtoverlay=dwc2,dr_mode=host
otg_mode=1
[pi5]
dtoverlay=vc4-kms-v3d-pi5
# dtparam=uart0_console # Disabled by default
dtparam=nvme
dtparam=pciex1_gen=2
[all]
arm_64bit=0
dtparam=audio=on
audio_pwm_mode=2
dtparam=i2c_arm=on
disable_splash=1
hdmi_force_hotplug=1
force_eeprom_read=0
“/boot/userconfig.txt” is empty?
no,read post 47
no,error,userconfig is empty
post 47 is volumioconfig.txt
post 46 is config.txt
I’ve tried this in userconfig.txt
hdmi_cvt=2560 720 60
hdmi_group=2
hdmi_mode=87
max_framebuffer_width=2560
max_framebuffer_height=720
framebuffer_width=2560
framebuffer_height=720
but touch doesn’t works too
Just for clarification: Does “correct image aspect” in this conext mean that the display shows Volumio’s UI correctly, but just touch does not work?
yes,exactly
1 Like
Please post the output of
cat /var/log/Xorg.0.log
When posting the output, please use code tags.
please,how to do “use code tag”?

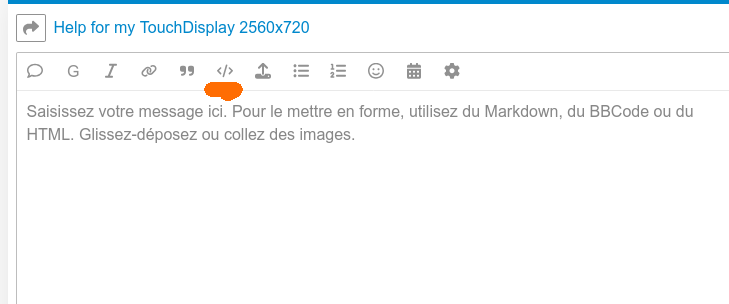

After pasting the output of cat /var/log/Xorg.0.log into the box where you create posts the text should still be selected / highlighted. At this point format the text with code tags using the “</>” symbol shown at the top of the box.
Welcome to Volumio for Raspberry Pi (6.6.62-v8+ aarch64)
volumio@volumio:~$ cat /var/
log/Xorg.0.log
[ 33.885]
X.Org X Server 1.20.4
X Protocol Version 11, Revision 0
[ 33.885] Build Operating System: Linux 5.4.0-109-generic armv8l Raspbian
[ 33.885] Current Operating System: Linux volumio 6.6.62-v8+ #1816 SMP PREEMPT Mon Nov 18 15:35:52 GMT 2024 aarch64
[ 33.885] Kernel command line: reboot=w coherent_pool=1M 8250.nr_uarts=1 pci=pcie_bus_safe cgroup_disable=memory numa_policy=interleave smsc95xx.macaddr=2C:CF:67:1E:45:2A vc_mem.mem_base=0x3fc00000 vc_mem.mem_size=0x40000000 splash plymouth.ignore-serial-consoles dwc_otg.fiq_enable=1 dwc_otg.fiq_fsm_enable=1 dwc_otg.fiq_fsm_mask=0xF dwc_otg.nak_holdoff=1 quiet console=ttyAMA10,115200 console=tty1 imgpart=UUID=fb80cb44-b4d3-4b36-be35-613cba0a09fb imgfile=/volumio_current.sqsh bootpart=UUID=51B1-040D datapart=UUID=2899bccc-8620-4c7a-b56a-43fd2f7a836a uuidconfig=cmdline.txt pcie_aspm=off pci=pcie_bus_safe rootwait bootdelay=7 logo.nologo vt.global_cursor_default=0 net.ifnames=0 snd-bcm2835.enable_compat_alsa= snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_headphones=1 loglevel=0 nodebug use_kmsg=no
[ 33.885] Build Date: 04 April 2023 07:50:56AM
[ 33.885] xorg-server 2:1.20.4-1+rpt4+deb10u9 (https://www.debian.org/support)
[ 33.885] Current version of pixman: 0.36.0
[ 33.885] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 33.885] Markers: (--) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 33.885] (==) Log file: "/var/log/Xorg.0.log", Time: Sun Jan 26 17:36:19 2025
[ 33.889] (==) Using config directory: "/etc/X11/xorg.conf.d"
[ 33.889] (==) Using system config directory "/usr/share/X11/xorg.conf.d"
[ 33.894] (==) No Layout section. Using the first Screen section.
[ 33.894] (==) No screen section available. Using defaults.
[ 33.894] (**) |-->Screen "Default Screen Section" (0)
[ 33.894] (**) | |-->Monitor "<default monitor>"
[ 33.896] (==) No monitor specified for screen "Default Screen Section".
Using a default monitor configuration.
[ 33.896] (==) Automatically adding devices
[ 33.896] (==) Automatically enabling devices
[ 33.896] (==) Automatically adding GPU devices
[ 33.896] (==) Max clients allowed: 256, resource mask: 0x1fffff
[ 33.898] (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist.
[ 33.898] Entry deleted from font path.
[ 33.902] (==) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/75dpi,
built-ins
[ 33.902] (==) ModulePath set to "/usr/lib/xorg/modules"
[ 33.902] (II) The server relies on udev to provide the list of input devices.
If no devices become available, reconfigure udev or disable AutoAddDevices.
[ 33.902] (II) Loader magic: 0x1fdf80
[ 33.902] (II) Module ABI versions:
[ 33.902] X.Org ANSI C Emulation: 0.4
[ 33.902] X.Org Video Driver: 24.0
[ 33.902] X.Org XInput driver : 24.1
[ 33.902] X.Org Server Extension : 10.0
[ 33.902] (--) using VT number 2
[ 33.902] (II) systemd-logind: logind integration requires -keeptty and -keeptty was not provided, disabling logind integration
[ 33.903] (II) xfree86: Adding drm device (/dev/dri/card0)
[ 33.903] (II) xfree86: Adding drm device (/dev/dri/card1)
[ 33.910] (**) OutputClass "vc4" setting /dev/dri/card1 as PrimaryGPU
[ 33.910] (II) LoadModule: "glx"
[ 33.913] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 33.930] (II) Module glx: vendor="X.Org Foundation"
[ 33.930] compiled for 1.20.4, module version = 1.0.0
[ 33.930] ABI class: X.Org Server Extension, version 10.0
[ 33.930] (II) Applying OutputClass "vc4" to /dev/dri/card1
[ 33.930] loading driver: modesetting
[ 33.930] (==) Matched modesetting as autoconfigured driver 0
[ 33.930] (==) Matched fbdev as autoconfigured driver 1
[ 33.930] (==) Assigned the driver to the xf86ConfigLayout
[ 33.930] (II) LoadModule: "modesetting"
[ 33.931] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so
[ 33.933] (II) Module modesetting: vendor="X.Org Foundation"
[ 33.933] compiled for 1.20.4, module version = 1.20.4
[ 33.933] Module class: X.Org Video Driver
[ 33.933] ABI class: X.Org Video Driver, version 24.0
[ 33.933] (II) LoadModule: "fbdev"
[ 33.933] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so
[ 33.938] (II) Module fbdev: vendor="X.Org Foundation"
[ 33.938] compiled for 1.20.3, module version = 0.5.0
[ 33.938] Module class: X.Org Video Driver
[ 33.938] ABI class: X.Org Video Driver, version 24.0
[ 33.938] (II) modesetting: Driver for Modesetting Kernel Drivers: kms
[ 33.938] (II) FBDEV: driver for framebuffer: fbdev
[ 33.959] (II) modeset(0): using drv /dev/dri/card1
[ 33.959] (WW) Falling back to old probe method for fbdev
[ 33.959] (II) Loading sub module "fbdevhw"
[ 33.959] (II) LoadModule: "fbdevhw"
[ 33.960] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so
[ 33.960] (II) Module fbdevhw: vendor="X.Org Foundation"
[ 33.960] compiled for 1.20.4, module version = 0.0.2
[ 33.960] ABI class: X.Org Video Driver, version 24.0
[ 33.961] (II) modeset(0): Creating default Display subsection in Screen section
"Default Screen Section" for depth/fbbpp 24/32
[ 33.961] (==) modeset(0): Depth 24, (==) framebuffer bpp 32
[ 33.961] (II) Applying OutputClass "vc4" options to /dev/dri/card1
[ 33.961] (==) modeset(0): RGB weight 888
[ 33.961] (==) modeset(0): Default visual is TrueColor
[ 33.961] (II) Loading sub module "glamoregl"
[ 33.961] (II) LoadModule: "glamoregl"
[ 33.961] (II) Loading /usr/lib/xorg/modules/libglamoregl.so
[ 33.976] (II) Module glamoregl: vendor="X.Org Foundation"
[ 33.976] compiled for 1.20.4, module version = 1.0.1
[ 33.976] ABI class: X.Org ANSI C Emulation, version 0.4
[ 34.780] (II) modeset(0): Refusing to try glamor on llvmpipe
[ 34.781] (EE) modeset(0): glamor initialization failed
[ 34.781] (II) modeset(0): ShadowFB: preferred NO, enabled NO
[ 34.782] (II) modeset(0): Output HDMI-1 using monitor section HDMI-1
[ 34.782] (**) modeset(0): Option "Rotate" "normal"
[ 34.833] (II) modeset(0): Output HDMI-2 using monitor section HDMI-2
[ 34.833] (**) modeset(0): Option "Rotate" "normal"
[ 34.835] (II) modeset(0): EDID for output HDMI-1
[ 34.885] (II) modeset(0): EDID for output HDMI-2
[ 34.885] (II) modeset(0): Manufacturer: RTK Model: bc32 Serial#: 16843009
[ 34.885] (II) modeset(0): Year: 2016 Week: 9
[ 34.885] (II) modeset(0): EDID Version: 1.4
[ 34.885] (II) modeset(0): Digital Display Input
[ 34.885] (II) modeset(0): Undefined color depth
[ 34.885] (II) modeset(0): Digital interface is undefined
[ 34.885] (II) modeset(0): Max Image Size [cm]: horiz.: 36 vert.: 11
[ 34.885] (II) modeset(0): Gamma: 2.20
[ 34.885] (II) modeset(0): DPMS capabilities: Off
[ 34.885] (II) modeset(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 YCrCb 4:2:2
[ 34.885] (II) modeset(0): Default color space is primary color space
[ 34.885] (II) modeset(0): First detailed timing is preferred mode
[ 34.885] (II) modeset(0): Preferred mode is native pixel format and refresh rate
[ 34.886] (II) modeset(0): redX: 0.646 redY: 0.330 greenX: 0.310 greenY: 0.617
[ 34.886] (II) modeset(0): blueX: 0.152 blueY: 0.073 whiteX: 0.313 whiteY: 0.329
[ 34.886] (II) modeset(0): Manufacturer's mask: 0
[ 34.886] (II) modeset(0): Supported standard timings:
[ 34.886] (II) modeset(0): #1: hsize: 1920 vsize 1080 refresh: 100 vid: 59601
[ 34.886] (II) modeset(0): #2: hsize: 1920 vsize 1080 refresh: 120 vid: 64721
[ 34.886] (II) modeset(0): #3: hsize: 1440 vsize 900 refresh: 60 vid: 149
[ 34.886] (II) modeset(0): #4: hsize: 1400 vsize 1050 refresh: 60 vid: 16528
[ 34.886] (II) modeset(0): #5: hsize: 1280 vsize 1024 refresh: 60 vid: 32897
[ 34.886] (II) modeset(0): #6: hsize: 1280 vsize 960 refresh: 60 vid: 16513
[ 34.886] (II) modeset(0): #7: hsize: 1280 vsize 720 refresh: 60 vid: 49281
[ 34.886] (II) modeset(0): Supported detailed timing:
[ 34.886] (II) modeset(0): clock: 129.7 MHz Image Size: 364 x 113 mm
[ 34.886] (II) modeset(0): h_active: 2560 h_sync: 2608 h_sync_end 2640 h_blank_end 2840 h_border: 0
[ 34.886] (II) modeset(0): v_active: 720 v_sync: 723 v_sync_end 728 v_blanking: 761 v_border: 0
[ 34.886] (II) modeset(0): Monitor name: RTK QHD HDR
[ 34.886] (II) modeset(0): Serial No: demoset-1
[ 34.886] (II) modeset(0): Ranges: V min: 50 V max: 70 Hz, H min: 30 H max: 113 kHz, PixClock max 155 MHz
[ 34.886] (II) modeset(0): Supported detailed timing:
[ 34.886] (II) modeset(0): clock: 108.6 MHz Image Size: 597 x 336 mm
[ 34.886] (II) modeset(0): h_active: 2560 h_sync: 2648 h_sync_end 2692 h_blank_end 2840 h_border: 0
[ 34.886] (II) modeset(0): v_active: 720 v_sync: 722 v_sync_end 727 v_blanking: 765 v_border: 0
[ 34.886] (II) modeset(0): Number of EDID sections to follow: 1
[ 34.886] (II) modeset(0): EDID (in hex):
[ 34.886] (II) modeset(0): 00ffffffffffff004a8b32bc01010101
[ 34.886] (II) modeset(0): 091a010480240b783e6435a5544f9e27
[ 34.886] (II) modeset(0): 1250540000000101d1e8d1fc95009040
[ 34.886] (II) modeset(0): 8180814081c0a6320018a1d029203020
[ 34.886] (II) modeset(0): 35006c711000001a000000fc0052544b
[ 34.886] (II) modeset(0): 20514844204844520a20000000ff0064
[ 34.886] (II) modeset(0): 656d6f7365742d310a203020000000fd
[ 34.886] (II) modeset(0): 0032461e710f000a2020202020200178
[ 34.886] (II) modeset(0): 020332f24f04051013141f2021222748
[ 34.886] (II) modeset(0): 494a4b4ce200c0e305c00023097f0783
[ 34.886] (II) modeset(0): 01000067030c001000383ce606050169
[ 34.886] (II) modeset(0): 694f6f2a0018a1d02d20582c25005550
[ 34.886] (II) modeset(0): 2100001e000000000000000000000000
[ 34.886] (II) modeset(0): 00000000000000000000000000000000
[ 34.886] (II) modeset(0): 00000000000000000000000000000000
[ 34.886] (II) modeset(0): 000000000000000000000000000000a4
[ 34.886] (WW) modeset(0): Output HDMI-2: Strange aspect ratio (364/113), consider adding a quirk
[ 34.886] (--) modeset(0): HDMI max TMDS frequency 300000KHz
[ 34.886] (II) modeset(0): Printing probed modes for output HDMI-2
[ 34.886] (II) modeset(0): Modeline "2560x720"x60.0 129.66 2560 2608 2640 2840 720 723 728 761 +hsync -vsync (45.7 kHz eP)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x60.0 148.50 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (67.5 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x50.0 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +hsync +vsync (56.2 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x59.9 148.35 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (67.4 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080i"x60.0 74.25 1920 2008 2052 2200 1080 1084 1094 1125 interlace +hsync +vsync (33.8 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080i"x50.0 74.25 1920 2448 2492 2640 1080 1084 1094 1125 interlace +hsync +vsync (28.1 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x30.0 74.25 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (33.8 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x25.0 74.25 1920 2448 2492 2640 1080 1084 1089 1125 +hsync +vsync (28.1 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x24.0 74.25 1920 2558 2602 2750 1080 1084 1089 1125 +hsync +vsync (27.0 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080i"x59.9 74.18 1920 2008 2052 2200 1080 1084 1094 1125 interlace +hsync +vsync (33.7 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x30.0 74.18 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (33.7 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080"x24.0 74.18 1920 2558 2602 2750 1080 1084 1089 1125 +hsync +vsync (27.0 kHz e)
[ 34.886] (II) modeset(0): Modeline "1920x1080i"x50.0 72.00 1920 1952 2120 2304 1080 1126 1136 1250 interlace +hsync -vsync (31.2 kHz e)
[ 34.886] (II) modeset(0): Modeline "2560x720"x50.0 108.63 2560 2648 2692 2840 720 722 727 765 +hsync +vsync (38.2 kHz e)
[ 34.886] (II) modeset(0): Modeline "1400x1050"x60.0 121.75 1400 1488 1632 1864 1050 1053 1057 1089 -hsync +vsync (65.3 kHz e)
[ 34.886] (II) modeset(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[ 34.886] (II) modeset(0): Modeline "1440x900"x59.9 106.50 1440 1520 1672 1904 900 903 909 934 -hsync +vsync (55.9 kHz e)
[ 34.886] (II) modeset(0): Modeline "1280x960"x60.0 108.00 1280 1376 1488 1800 960 961 964 1000 +hsync +vsync (60.0 kHz e)
[ 34.886] (II) modeset(0): Modeline "1280x720"x60.0 74.25 1280 1390 1430 1650 720 725 730 750 +hsync +vsync (45.0 kHz e)
[ 34.886] (II) modeset(0): Modeline "1280x720"x50.0 74.25 1280 1720 1760 1980 720 725 730 750 +hsync +vsync (37.5 kHz e)
[ 34.886] (II) modeset(0): Modeline "1280x720"x59.9 74.18 1280 1390 1430 1650 720 725 730 750 +hsync +vsync (45.0 kHz e)
[ 34.886] (II) modeset(0): Output HDMI-1 disconnected
[ 34.886] (II) modeset(0): Output HDMI-2 connected
[ 34.886] (II) modeset(0): Using exact sizes for initial modes
[ 34.886] (II) modeset(0): Output HDMI-2 using initial mode 2560x720 +0+0
[ 34.886] (==) modeset(0): Using gamma correction (1.0, 1.0, 1.0)
[ 34.886] (==) modeset(0): DPI set to (96, 96)
[ 34.886] (II) Loading sub module "fb"
[ 34.886] (II) LoadModule: "fb"
[ 34.886] (II) Loading /usr/lib/xorg/modules/libfb.so
[ 34.888] (II) Module fb: vendor="X.Org Foundation"
[ 34.888] compiled for 1.20.4, module version = 1.0.0
[ 34.888] ABI class: X.Org ANSI C Emulation, version 0.4
[ 34.888] (II) UnloadModule: "fbdev"
[ 34.888] (II) Unloading fbdev
[ 34.888] (II) UnloadSubModule: "fbdevhw"
[ 34.888] (II) Unloading fbdevhw
[ 34.895] (==) modeset(0): Backing store enabled
[ 34.895] (==) modeset(0): Silken mouse enabled
[ 35.043] (II) modeset(0): Initializing kms color map for depth 24, 8 bpc.
[ 35.043] (==) modeset(0): DPMS enabled
[ 35.043] (WW) modeset(0): Option "PrimaryGPU" is not used
[ 35.043] (II) Initializing extension Generic Event Extension
[ 35.043] (II) Initializing extension SHAPE
[ 35.044] (II) Initializing extension MIT-SHM
[ 35.044] (II) Initializing extension XInputExtension
[ 35.046] (II) Initializing extension XTEST
[ 35.046] (II) Initializing extension BIG-REQUESTS
[ 35.046] (II) Initializing extension SYNC
[ 35.047] (II) Initializing extension XKEYBOARD
[ 35.047] (II) Initializing extension XC-MISC
[ 35.047] (II) Initializing extension SECURITY
[ 35.048] (II) Initializing extension XFIXES
[ 35.048] (II) Initializing extension RENDER
[ 35.048] (II) Initializing extension RANDR
[ 35.049] (II) Initializing extension COMPOSITE
[ 35.049] (II) Initializing extension DAMAGE
[ 35.050] (II) Initializing extension MIT-SCREEN-SAVER
[ 35.050] (II) Initializing extension DOUBLE-BUFFER
[ 35.050] (II) Initializing extension RECORD
[ 35.051] (II) Initializing extension DPMS
[ 35.051] (II) Initializing extension Present
[ 35.051] (II) Initializing extension DRI3
[ 35.051] (II) Initializing extension X-Resource
[ 35.052] (II) Initializing extension XVideo
[ 35.052] (II) Initializing extension XVideo-MotionCompensation
[ 35.052] (II) Initializing extension SELinux
[ 35.052] (II) SELinux: Disabled on system
[ 35.052] (II) Initializing extension GLX
[ 35.052] (II) AIGLX: Screen 0 is not DRI2 capable
[ 35.101] (II) IGLX: Loaded and initialized swrast
[ 35.101] (II) GLX: Initialized DRISWRAST GL provider for screen 0
[ 35.101] (II) Initializing extension XFree86-VidModeExtension
[ 35.101] (II) Initializing extension XFree86-DGA
[ 35.101] (II) Initializing extension XFree86-DRI
[ 35.102] (II) Initializing extension DRI2
[ 35.103] (II) modeset(0): Damage tracking initialized
[ 35.103] (II) modeset(0): Setting screen physical size to 677 x 190
[ 35.172] (II) config/udev: Adding input device pwr_button (/dev/input/event0)
[ 35.172] (**) pwr_button: Applying InputClass "libinput keyboard catchall"
[ 35.172] (II) LoadModule: "libinput"
[ 35.172] (II) Loading /usr/lib/xorg/modules/input/libinput_drv.so
[ 35.182] (II) Module libinput: vendor="X.Org Foundation"
[ 35.182] compiled for 1.20.3, module version = 0.28.2
[ 35.182] Module class: X.Org XInput Driver
[ 35.182] ABI class: X.Org XInput driver, version 24.1
[ 35.182] (II) Using input driver 'libinput' for 'pwr_button'
[ 35.182] (**) pwr_button: always reports core events
[ 35.182] (**) Option "Device" "/dev/input/event0"
[ 35.182] (**) Option "_source" "server/udev"
[ 35.188] (II) event0 - pwr_button: is tagged by udev as: Keyboard
[ 35.188] (II) event0 - pwr_button: device is a keyboard
[ 35.188] (II) event0 - pwr_button: device removed
[ 35.216] (**) Option "config_info" "udev:/sys/devices/platform/pwr_button/input/input0/event0"
[ 35.216] (II) XINPUT: Adding extended input device "pwr_button" (type: KEYBOARD, id 6)
[ 35.216] (**) Option "xkb_model" "pc105"
[ 35.216] (**) Option "xkb_layout" "us"
[ 35.219] (II) event0 - pwr_button: is tagged by udev as: Keyboard
[ 35.219] (II) event0 - pwr_button: device is a keyboard
[ 35.219] (II) config/udev: Adding input device vc4-hdmi-0 (/dev/input/event1)
[ 35.219] (**) vc4-hdmi-0: Applying InputClass "libinput keyboard catchall"
[ 35.219] (II) Using input driver 'libinput' for 'vc4-hdmi-0'
[ 35.219] (**) vc4-hdmi-0: always reports core events
[ 35.219] (**) Option "Device" "/dev/input/event1"
[ 35.219] (**) Option "_source" "server/udev"
[ 35.220] (II) event1 - vc4-hdmi-0: is tagged by udev as: Keyboard Pointingstick
[ 35.221] (II) event1 - vc4-hdmi-0: device is a pointer
[ 35.221] (II) event1 - vc4-hdmi-0: device is a keyboard
[ 35.221] (II) event1 - vc4-hdmi-0: device removed
[ 35.236] (II) libinput: vc4-hdmi-0: needs a virtual subdevice
[ 35.236] (**) Option "config_info" "udev:/sys/devices/platform/soc/107c701400.hdmi/rc/rc0/input1/event1"
[ 35.236] (II) XINPUT: Adding extended input device "vc4-hdmi-0" (type: MOUSE, id 7)
[ 35.236] (**) Option "AccelerationScheme" "none"
[ 35.236] (**) vc4-hdmi-0: (accel) selected scheme none/0
[ 35.236] (**) vc4-hdmi-0: (accel) acceleration factor: 2.000
[ 35.236] (**) vc4-hdmi-0: (accel) acceleration threshold: 4
[ 35.237] (II) event1 - vc4-hdmi-0: is tagged by udev as: Keyboard Pointingstick
[ 35.237] (II) event1 - vc4-hdmi-0: device is a pointer
[ 35.237] (II) event1 - vc4-hdmi-0: device is a keyboard
[ 35.238] (II) config/udev: Adding input device vc4-hdmi-0 HDMI Jack (/dev/input/event2)
[ 35.238] (II) No input driver specified, ignoring this device.
[ 35.238] (II) This device may have been added with another device file.
[ 35.238] (II) config/udev: Adding input device vc4-hdmi-1 (/dev/input/event3)
[ 35.238] (**) vc4-hdmi-1: Applying InputClass "libinput keyboard catchall"
[ 35.238] (II) Using input driver 'libinput' for 'vc4-hdmi-1'
[ 35.238] (**) vc4-hdmi-1: always reports core events
[ 35.238] (**) Option "Device" "/dev/input/event3"
[ 35.238] (**) Option "_source" "server/udev"
[ 35.239] (II) event3 - vc4-hdmi-1: is tagged by udev as: Keyboard Pointingstick
[ 35.239] (II) event3 - vc4-hdmi-1: device is a pointer
[ 35.239] (II) event3 - vc4-hdmi-1: device is a keyboard
[ 35.240] (II) event3 - vc4-hdmi-1: device removed
[ 35.280] (II) libinput: vc4-hdmi-1: needs a virtual subdevice
[ 35.280] (**) Option "config_info" "udev:/sys/devices/platform/soc/107c706400.hdmi/rc/rc1/input3/event3"
[ 35.280] (II) XINPUT: Adding extended input device "vc4-hdmi-1" (type: MOUSE, id 8)
[ 35.280] (**) Option "AccelerationScheme" "none"
[ 35.280] (**) vc4-hdmi-1: (accel) selected scheme none/0
[ 35.280] (**) vc4-hdmi-1: (accel) acceleration factor: 2.000
[ 35.280] (**) vc4-hdmi-1: (accel) acceleration threshold: 4
[ 35.281] (II) event3 - vc4-hdmi-1: is tagged by udev as: Keyboard Pointingstick
[ 35.281] (II) event3 - vc4-hdmi-1: device is a pointer
[ 35.281] (II) event3 - vc4-hdmi-1: device is a keyboard
[ 35.282] (II) config/udev: Adding input device vc4-hdmi-1 HDMI Jack (/dev/input/event4)
[ 35.282] (II) No input driver specified, ignoring this device.
[ 35.282] (II) This device may have been added with another device file.
[ 35.293] (**) vc4-hdmi-0: Applying InputClass "libinput keyboard catchall"
[ 35.293] (II) Using input driver 'libinput' for 'vc4-hdmi-0'
[ 35.293] (**) vc4-hdmi-0: always reports core events
[ 35.293] (**) Option "Device" "/dev/input/event1"
[ 35.293] (**) Option "_source" "_driver/libinput"
[ 35.293] (II) libinput: vc4-hdmi-0: is a virtual subdevice
[ 35.293] (**) Option "config_info" "udev:/sys/devices/platform/soc/107c701400.hdmi/rc/rc0/input1/event1"
[ 35.293] (II) XINPUT: Adding extended input device "vc4-hdmi-0" (type: KEYBOARD, id 9)
[ 35.293] (**) Option "xkb_model" "pc105"
[ 35.293] (**) Option "xkb_layout" "us"
[ 35.293] (**) vc4-hdmi-1: Applying InputClass "libinput keyboard catchall"
[ 35.293] (II) Using input driver 'libinput' for 'vc4-hdmi-1'
[ 35.293] (**) vc4-hdmi-1: always reports core events
[ 35.293] (**) Option "Device" "/dev/input/event3"
[ 35.293] (**) Option "_source" "_driver/libinput"
[ 35.293] (II) libinput: vc4-hdmi-1: is a virtual subdevice
[ 35.293] (**) Option "config_info" "udev:/sys/devices/platform/soc/107c706400.hdmi/rc/rc1/input3/event3"
[ 35.293] (II) XINPUT: Adding extended input device "vc4-hdmi-1" (type: KEYBOARD, id 10)
[ 35.293] (**) Option "xkb_model" "pc105"
[ 35.293] (**) Option "xkb_layout" "us"
[ 35.379] (II) modeset(0): EDID vendor "RTK", prod id 48178
[ 35.379] (II) modeset(0): Using EDID range info for horizontal sync
[ 35.379] (II) modeset(0): Using EDID range info for vertical refresh
[ 35.379] (II) modeset(0): Printing DDC gathered Modelines:
[ 35.379] (II) modeset(0): Modeline "2560x720"x0.0 129.66 2560 2608 2640 2840 720 723 728 761 +hsync -vsync (45.7 kHz eP)
[ 35.379] (II) modeset(0): Modeline "2560x720"x0.0 108.63 2560 2648 2692 2840 720 722 727 765 +hsync +vsync (38.2 kHz e)
[ 35.379] (II) modeset(0): Modeline "1280x720"x0.0 74.25 1280 1390 1430 1650 720 725 730 750 +hsync +vsync (45.0 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 74.25 1920 2008 2052 2200 1080 1084 1094 1125 interlace +hsync +vsync (33.8 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 148.50 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (67.5 kHz e)
[ 35.379] (II) modeset(0): Modeline "1280x720"x0.0 74.25 1280 1720 1760 1980 720 725 730 750 +hsync +vsync (37.5 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 74.25 1920 2448 2492 2640 1080 1084 1094 1125 interlace +hsync +vsync (28.1 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +hsync +vsync (56.2 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 74.25 1920 2558 2602 2750 1080 1084 1089 1125 +hsync +vsync (27.0 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 74.25 1920 2448 2492 2640 1080 1084 1089 1125 +hsync +vsync (28.1 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 74.25 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (33.8 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 72.00 1920 1952 2120 2304 1080 1126 1136 1250 interlace +hsync -vsync (31.2 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x100.0 302.01 1920 2072 2280 2640 1080 1081 1084 1144 -hsync +vsync (114.4 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x120.0 368.76 1920 2072 2288 2656 1080 1081 1084 1157 -hsync +vsync (138.8 kHz e)
[ 35.379] (II) modeset(0): Modeline "1440x900"x0.0 106.50 1440 1520 1672 1904 900 903 909 934 -hsync +vsync (55.9 kHz e)
[ 35.379] (II) modeset(0): Modeline "1400x1050"x0.0 121.75 1400 1488 1632 1864 1050 1053 1057 1089 -hsync +vsync (65.3 kHz e)
[ 35.379] (II) modeset(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[ 35.379] (II) modeset(0): Modeline "1280x960"x0.0 108.00 1280 1376 1488 1800 960 961 964 1000 +hsync +vsync (60.0 kHz e)
[ 35.379] (WW) modeset(0): Output HDMI-2: Strange aspect ratio (364/113), consider adding a quirk
[ 35.380] (--) modeset(0): HDMI max TMDS frequency 300000KHz
[ 38.236] (II) modeset(0): Disabling kernel dirty updates, not required.
volumio@volumio:~$ [ 35.293] (II) XINPUT: Adding extended input device "vc4-h ARD, id 10)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.293] (**) Option "xkb_model" "pc105"
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.293] (**) Option "xkb_layout" "us"
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): EDID vendor "RTK", prod id 4817
-bash: syntax error near unexpected token `('
[ 35.379] (II) modeset(0): Printing DDC gathered Modelines:
[ 35.379] (II) modeset(0): Modeline "2560x720"x0.0 129.66 2560 2608 2640 2840 720 723 728 761 +hsync -vsync (45.7 kHz eP)
[ 35.379] (II) modeset(0): Modeline "2560x720"x0.0 108.63 2560 2648 2692 2840 720 722 727 765 +hsync +vsync (38.2 kHz e)
[ 35.379] (II) modeset(0): Modeline "1280x720"x0.0 74.25 1280 1390 1430 1650 720 725 730 750 +hsync +vsync (45.0 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 74.25 1920 2008 2052 2200 1080 1084 1094 1125 interlace +hsync +vsync (33.8 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 148.50 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (67.5 kHz e)
[ 35.379] (II) modeset(0): Modeline "1280x720"x0.0 74.25 1280 1720 1760 1980 720 725 730 750 +hsync +vsync (37.5 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 74.25 1920 2448 2492 2640 1080 1084 1094 1125 interlace +hsync +vsync (28.1 kHz e)
[ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 148.50 1920 2448 2492 2640 1080 1084 1089 1125 +hsync +vsync (56.2 kHz e)
volumio@volumio:~$ [ 35.379] (II) modeset(0): Using EDID range info for horiz
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Using EDID range info for verti
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Printing DDC gathered Modelines
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "2560x720"x0.0 129.66 40 720 723 728 761 +hsync -vsync (45.7 kHz eP)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "2560x720"x0.0 108.63 40 720 722 727 765 +hsync +vsync (38.2 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1280x720"x0.0 74.25 50 720 725 730 750 +hsync +vsync (45.0 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 74. 2200 1080 1084 1094 1125 interlace +hsync +vsync (33.8 kHz e
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 148.5 200 1080 1084 1089 1125 +hsync +vsync (67.5 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1280x720"x0.0 74.25 80 720 725 730 750 +hsync +vsync (37.5 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 74. 2640 1080 1084 1094 1125 interlace +hsync +vsync (28.1 kHz e
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 148.5 640 1080 1084 1089 1125 +hsync +vsync (56.2 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 74.2 750 1080 1084 1089 1125 +hsync +vsync (27.0 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 74.2 640 1080 1084 1089 1125 +hsync +vsync (28.1 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x0.0 74.2 200 1080 1084 1089 1125 +hsync +vsync (33.8 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080i"x0.0 72. 2304 1080 1126 1136 1250 interlace +hsync -vsync (31.2 kHz e
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x100.0 302 2640 1080 1081 1084 1144 -hsync +vsync (114.4 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1920x1080"x120.0 368 2656 1080 1081 1084 1157 -hsync +vsync (138.8 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1440x900"x0.0 106.50 04 900 903 909 934 -hsync +vsync (55.9 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1400x1050"x0.0 121.7 864 1050 1053 1057 1089 -hsync +vsync (65.3 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1280x1024"x0.0 108.0 688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (II) modeset(0): Modeline "1280x960"x0.0 108.00 00 960 961 964 1000 +hsync +vsync (60.0 kHz e)
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.379] (WW) modeset(0): Output HDMI-2: Strange aspect r sider adding a quirk
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 35.380] (--) modeset(0): HDMI max TMDS frequency 300000K
-bash: syntax error near unexpected token `('
volumio@volumio:~$ [ 38.236] (II) modeset(0): Disabling kernel dirty updates,
-bash: syntax error near unexpected token `('
type or paste code here
