Hi,

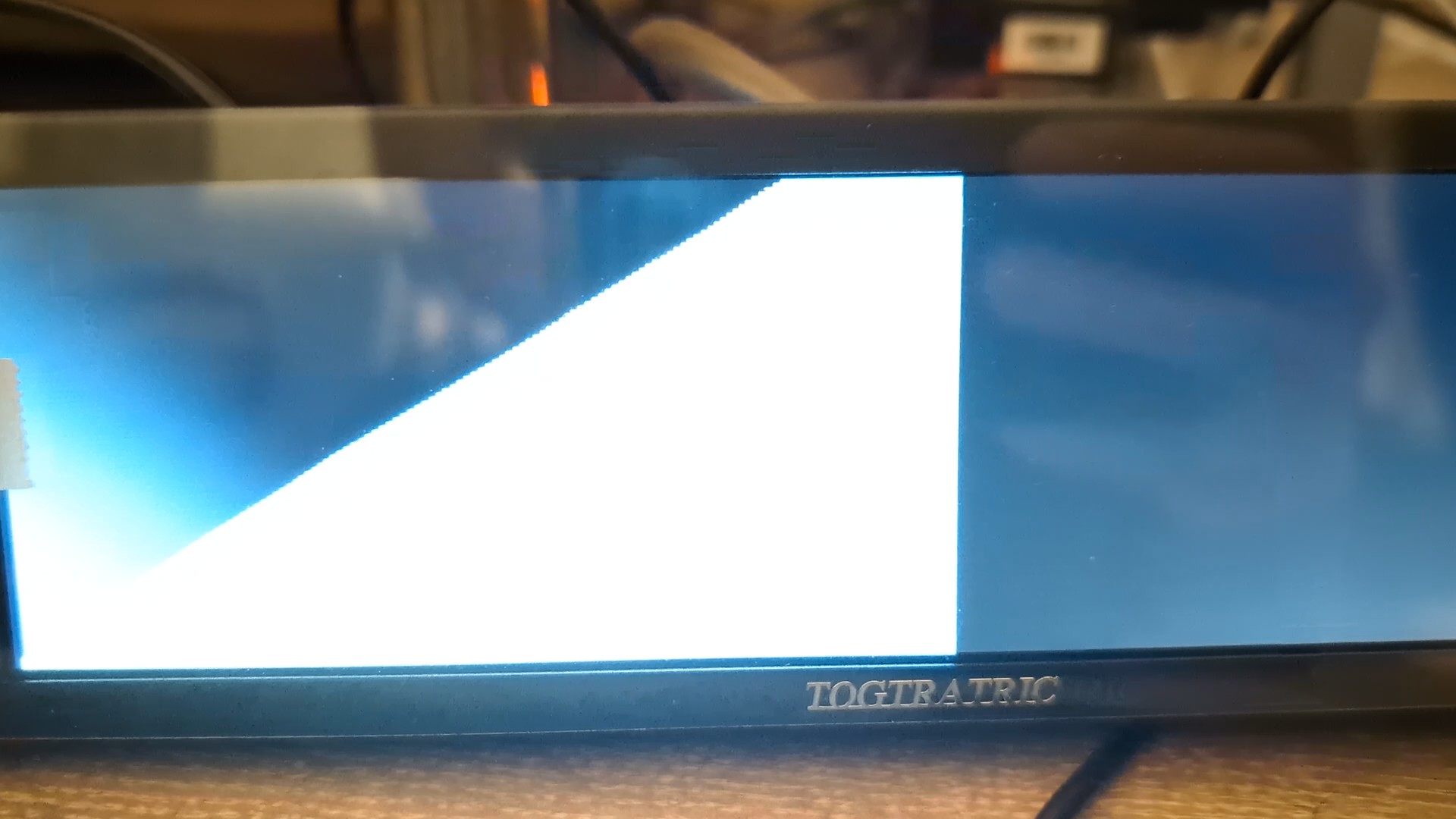

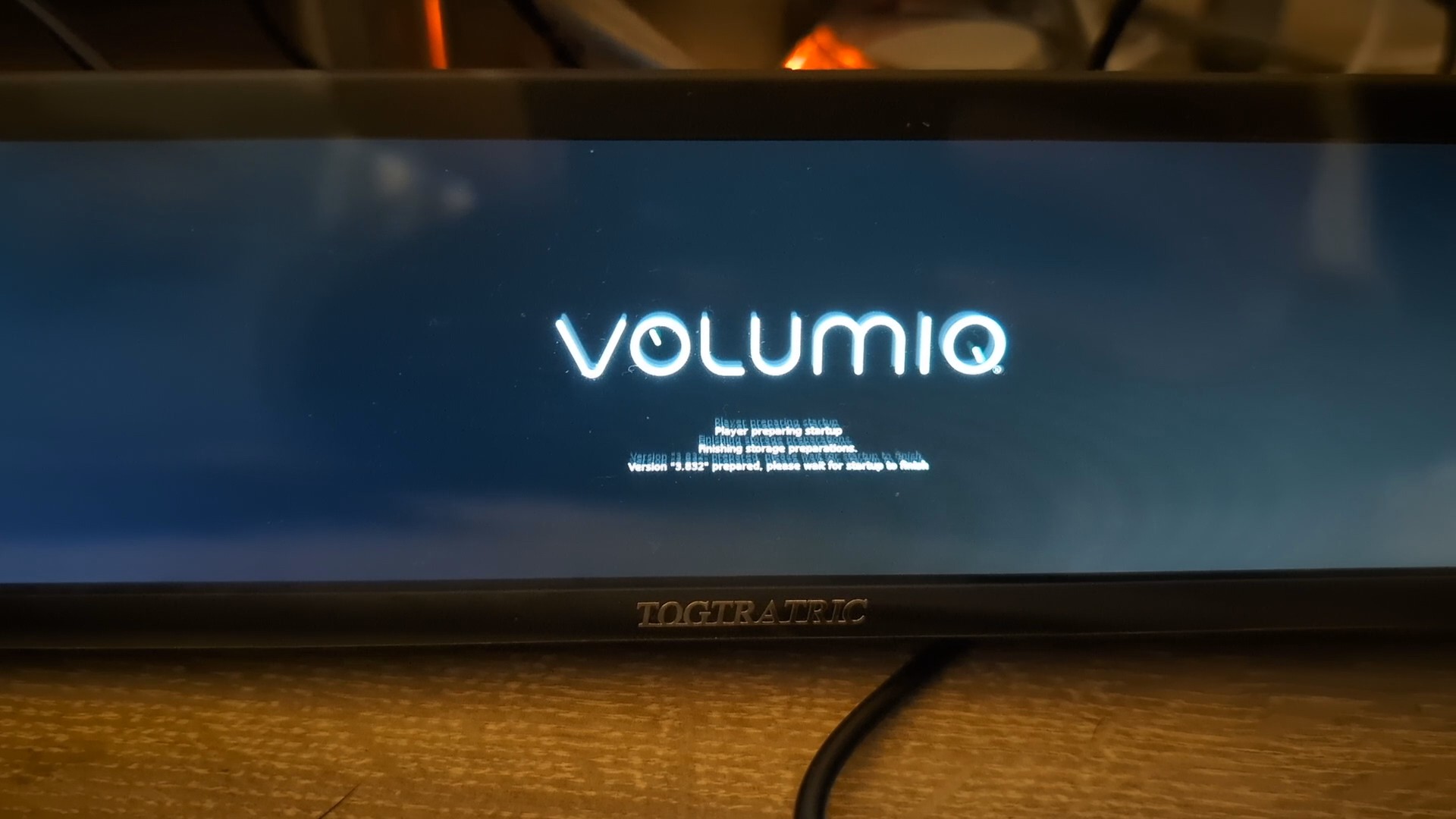

I’ve bought a Togtratric 8.8" Widescreen display for my Volumio project. After a lot of searching, testing and head scratching I’m struggling to get it working. At boot I see the Volumio logo and text in the middle of the screen, then the screen goes blank. There’s a brief white flash and then nothing. It’s connected via HDMI and with it’s own power source.
I’ve posted my userconfig.txt (with elements I’ve tried and then commented out) and xorg.0.log below. Does anyone have any ideas?
userconfig.txt:
###Add your custom config.txt options to this file, which will be preserved dur$
#dtoverlay=vc4-kms-v3d
#hdmi_cvt=480 1920 60
hdmi_drive=1
hdmi_mode=87
hdmi_group=2
#display_rotate=2
hdmi_force_mode=1
framebuffer_width=1920
framebuffer_height=480
max_framebuffer_width=1920
max_framebuffer_height=1920
hdmi_blanking=1
#hdmi_timings=480 0 30 30 30 1920 0 6 6 6 0 0 0 60 0 66000000 7
hdmi_timings=480 0 30 30 30 1920 0 6 6 6 0 0 0 60 0 55296000 8
#### Touch Display rotation setting below: do not alter ####
display_lcd_rotate=1
display_hdmi_rotate=1
xorg.0.log:
[ 57.399]
X.Org X Server 1.20.4
X Protocol Version 11, Revision 0
[ 57.399] Build Operating System: Linux 5.4.0-109-generic armv8l Raspbian
[ 57.399] Current Operating System: Linux volumio 6.6.62-v7+ #1816 SMP Mon Nov 18 15:30:49 GMT 2024 armv7l
[ 57.399] Kernel command line: coherent_pool=1M 8250.nr_uarts=0 snd_bcm2835.enable_headphones=0 cgroup_disable=memory snd_bcm2835.enable_headphones=1 snd_bcm2835.enable_hdmi=1 bcm2708_fb.fbwidth=1920 bcm2708_fb.fbheight=480 bcm2708_fb.fbswap=1 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 splash plymouth.ignore-serial-consoles dwc_otg.fiq_enable=1 dwc_otg.fiq_fsm_enable=1 dwc_otg.fiq_fsm_mask=0xF dwc_otg.nak_holdoff=1 quiet console=ttyS0,115200 console=tty1 imgpart=UUID=7f0c0e47-027d-47ad-bd0c-5159b014252e imgfile=/volumio_current.sqsh bootpart=UUID=10D8-1DF5 datapart=UUID=307f8728-204c-4df1-9dcc-f9fb9dec6fbe uuidconfig=cmdline.txt pcie_aspm=off pci=pcie_bus_safe rootwait bootdelay=7 logo.nologo vt.global_cursor_default=0 net.ifnames=0 snd-bcm2835.enable_compat_alsa= snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_headphones=1 loglevel=0 nodebug use_kmsg=no
[ 57.399] Build Date: 04 April 2023 07:50:56AM
[ 57.399] xorg-server 2:1.20.4-1+rpt4+deb10u9 (https://www.debian.org/support)
[ 57.399] Current version of pixman: 0.36.0
[ 57.399] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 57.399] Markers: (--) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 57.400] (==) Log file: "/var/log/Xorg.0.log", Time: Wed Oct 29 20:58:43 2025
[ 57.427] (==) Using config directory: "/etc/X11/xorg.conf.d"
[ 57.427] (==) Using system config directory "/usr/share/X11/xorg.conf.d"
[ 57.462] (==) No Layout section. Using the first Screen section.
[ 57.462] (==) No screen section available. Using defaults.
[ 57.462] (**) |-->Screen "Default Screen Section" (0)
[ 57.462] (**) | |-->Monitor "<default monitor>"
[ 57.469] (==) No monitor specified for screen "Default Screen Section".
Using a default monitor configuration.
[ 57.469] (==) Automatically adding devices
[ 57.469] (==) Automatically enabling devices
[ 57.469] (==) Automatically adding GPU devices
[ 57.479] (==) Max clients allowed: 256, resource mask: 0x1fffff
[ 57.500] (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist.
[ 57.500] Entry deleted from font path.
[ 57.520] (==) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/75dpi,
built-ins
[ 57.521] (==) ModulePath set to "/usr/lib/xorg/modules"
[ 57.521] (II) The server relies on udev to provide the list of input devices.
If no devices become available, reconfigure udev or disable AutoAddDevices.
[ 57.521] (II) Loader magic: 0x1fdf80
[ 57.521] (II) Module ABI versions:
[ 57.521] X.Org ANSI C Emulation: 0.4
[ 57.521] X.Org Video Driver: 24.0
[ 57.521] X.Org XInput driver : 24.1
[ 57.521] X.Org Server Extension : 10.0
[ 57.524] (--) using VT number 2
[ 57.524] (II) systemd-logind: logind integration requires -keeptty and -keeptty was not provided, disabling logind integration
[ 57.525] (II) no primary bus or device found
[ 57.525] (II) LoadModule: "glx"
[ 57.539] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 57.612] (II) Module glx: vendor="X.Org Foundation"
[ 57.612] compiled for 1.20.4, module version = 1.0.0
[ 57.613] ABI class: X.Org Server Extension, version 10.0
[ 57.613] (==) Matched modesetting as autoconfigured driver 0
[ 57.613] (==) Matched fbdev as autoconfigured driver 1
[ 57.613] (==) Assigned the driver to the xf86ConfigLayout
[ 57.613] (II) LoadModule: "modesetting"
[ 57.618] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so
[ 57.633] (II) Module modesetting: vendor="X.Org Foundation"
[ 57.633] compiled for 1.20.4, module version = 1.20.4
[ 57.633] Module class: X.Org Video Driver
[ 57.633] ABI class: X.Org Video Driver, version 24.0
[ 57.633] (II) LoadModule: "fbdev"
[ 57.634] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so
[ 57.646] (II) Module fbdev: vendor="X.Org Foundation"
[ 57.646] compiled for 1.20.3, module version = 0.5.0
[ 57.646] Module class: X.Org Video Driver
[ 57.646] ABI class: X.Org Video Driver, version 24.0
[ 57.646] (II) modesetting: Driver for Modesetting Kernel Drivers: kms
[ 57.646] (II) FBDEV: driver for framebuffer: fbdev
[ 57.660] (WW) Falling back to old probe method for modesetting
[ 57.660] (EE) open /dev/dri/card0: No such file or directory
[ 57.660] (WW) Falling back to old probe method for fbdev
[ 57.660] (II) Loading sub module "fbdevhw"
[ 57.660] (II) LoadModule: "fbdevhw"
[ 57.660] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so
[ 57.670] (II) Module fbdevhw: vendor="X.Org Foundation"
[ 57.670] compiled for 1.20.4, module version = 0.0.2
[ 57.670] ABI class: X.Org Video Driver, version 24.0
[ 57.670] (II) FBDEV(0): using default device
[ 57.670] (WW) VGA arbiter: cannot open kernel arbiter, no multi-card support
[ 57.670] (II) FBDEV(0): Creating default Display subsection in Screen section
"Default Screen Section" for depth/fbbpp 24/32
[ 57.670] (==) FBDEV(0): Depth 24, (==) framebuffer bpp 32
[ 57.670] (==) FBDEV(0): RGB weight 888
[ 57.670] (==) FBDEV(0): Default visual is TrueColor
[ 57.670] (==) FBDEV(0): Using gamma correction (1.0, 1.0, 1.0)
[ 57.670] (II) FBDEV(0): hardware: BCM2708 FB (video memory: 3600kB)
[ 57.670] (DB) xf86MergeOutputClassOptions unsupported bus type 0
[ 57.670] (II) FBDEV(0): checking modes against framebuffer device...
[ 57.670] (II) FBDEV(0): checking modes against monitor...
[ 57.671] (II) FBDEV(0): Virtual size is 1920x480 (pitch 1920)
[ 57.671] (**) FBDEV(0): Built-in mode "current"
[ 57.671] (==) FBDEV(0): DPI set to (96, 96)
[ 57.671] (II) Loading sub module "fb"
[ 57.671] (II) LoadModule: "fb"
[ 57.672] (II) Loading /usr/lib/xorg/modules/libfb.so
[ 57.690] (II) Module fb: vendor="X.Org Foundation"
[ 57.690] compiled for 1.20.4, module version = 1.0.0
[ 57.690] ABI class: X.Org ANSI C Emulation, version 0.4
[ 57.690] (**) FBDEV(0): using shadow framebuffer
[ 57.690] (II) Loading sub module "shadow"
[ 57.690] (II) LoadModule: "shadow"
[ 57.692] (II) Loading /usr/lib/xorg/modules/libshadow.so
[ 57.703] (II) Module shadow: vendor="X.Org Foundation"
[ 57.703] compiled for 1.20.4, module version = 1.1.0
[ 57.703] ABI class: X.Org ANSI C Emulation, version 0.4
[ 57.703] (II) UnloadModule: "modesetting"
[ 57.703] (II) Unloading modesetting
[ 57.753] (==) FBDEV(0): Backing store enabled
[ 57.764] (==) FBDEV(0): DPMS enabled
[ 57.770] (II) Initializing extension Generic Event Extension
[ 57.771] (II) Initializing extension SHAPE
[ 57.772] (II) Initializing extension MIT-SHM
[ 57.773] (II) Initializing extension XInputExtension
[ 57.780] (II) Initializing extension XTEST
[ 57.781] (II) Initializing extension BIG-REQUESTS
[ 57.782] (II) Initializing extension SYNC
[ 57.783] (II) Initializing extension XKEYBOARD
[ 57.784] (II) Initializing extension XC-MISC
[ 57.785] (II) Initializing extension SECURITY
[ 57.786] (II) Initializing extension XFIXES
[ 57.786] (II) Initializing extension RENDER
[ 57.787] (II) Initializing extension RANDR
[ 57.789] (II) Initializing extension COMPOSITE
[ 57.792] (II) Initializing extension DAMAGE
[ 57.793] (II) Initializing extension MIT-SCREEN-SAVER
[ 57.793] (II) Initializing extension DOUBLE-BUFFER
[ 57.794] (II) Initializing extension RECORD
[ 57.795] (II) Initializing extension DPMS
[ 57.796] (II) Initializing extension Present
[ 57.797] (II) Initializing extension DRI3
[ 57.797] (II) Initializing extension X-Resource
[ 57.798] (II) Initializing extension XVideo
[ 57.799] (II) Initializing extension XVideo-MotionCompensation
[ 57.799] (II) Initializing extension SELinux
[ 57.799] (II) SELinux: Disabled on system
[ 57.799] (II) Initializing extension GLX
[ 57.800] (II) AIGLX: Screen 0 is not DRI2 capable
[ 59.046] (II) IGLX: Loaded and initialized swrast
[ 59.046] (II) GLX: Initialized DRISWRAST GL provider for screen 0
[ 59.046] (II) Initializing extension XFree86-VidModeExtension
[ 59.047] (II) Initializing extension XFree86-DGA
[ 59.048] (II) Initializing extension XFree86-DRI
[ 59.053] (II) Initializing extension DRI2
