in Putty?

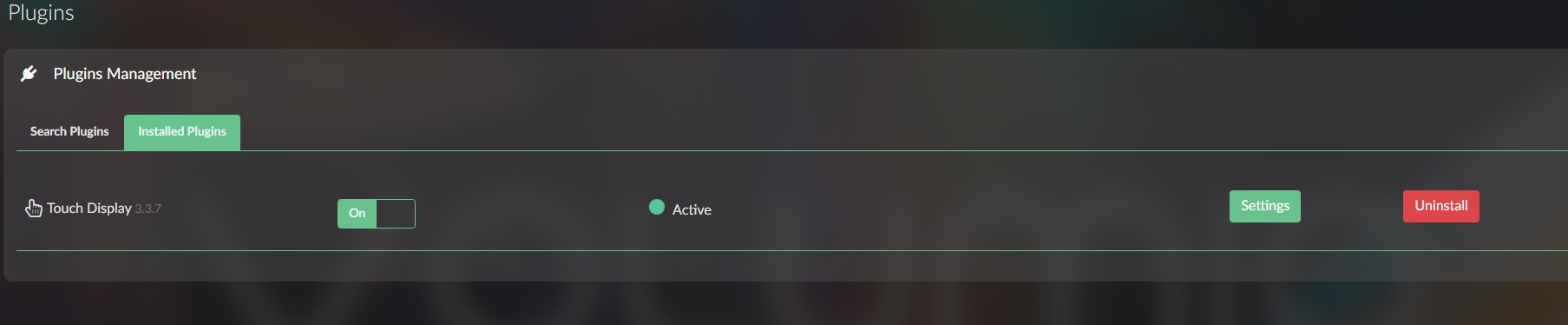

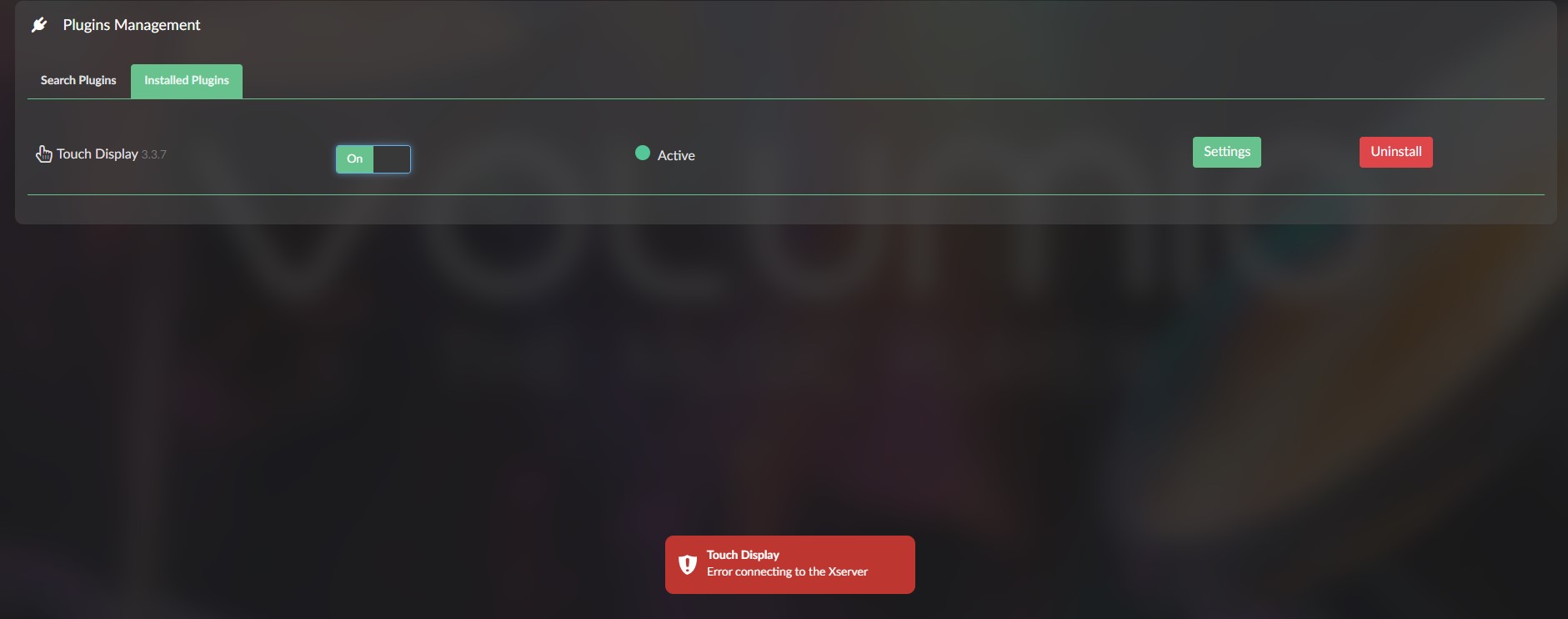

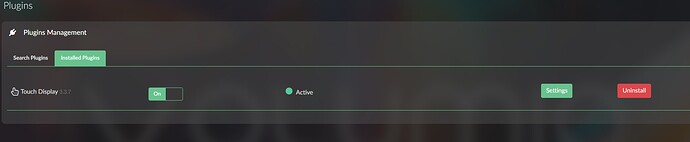

Are you sure the Touch Display plugin is enabled?
Please try uninstalling and reinstalling the Touch Display plugin.
Post the output of
cat /var/log/Xorg.0.log
again.

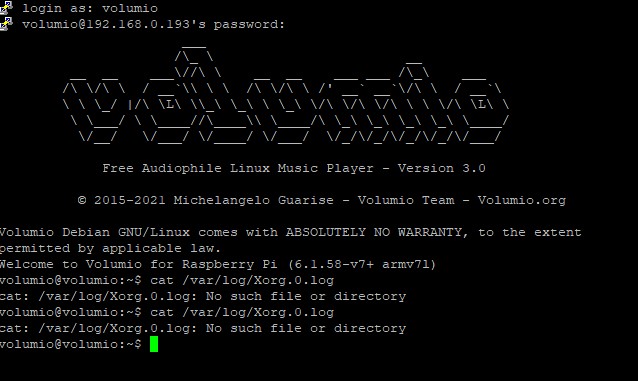

No such file or directory
Please post the output of

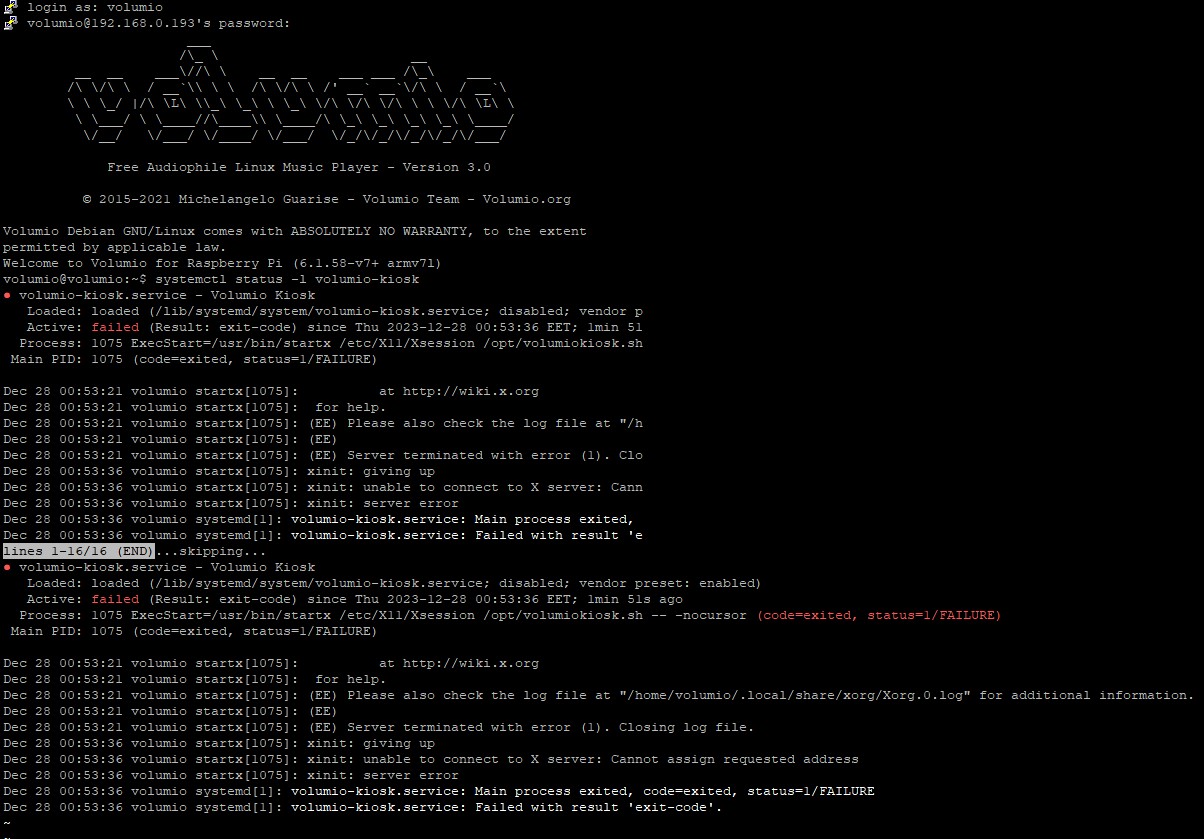

systemctl status -l volumio-kiosk
Execute
cat /home/volumio/.local/share/xorg/Xorg.0.log
and post the output.
Has the Touch Display plugin been installed from the plugin store?

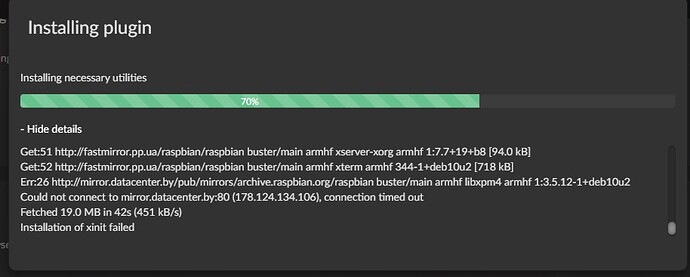

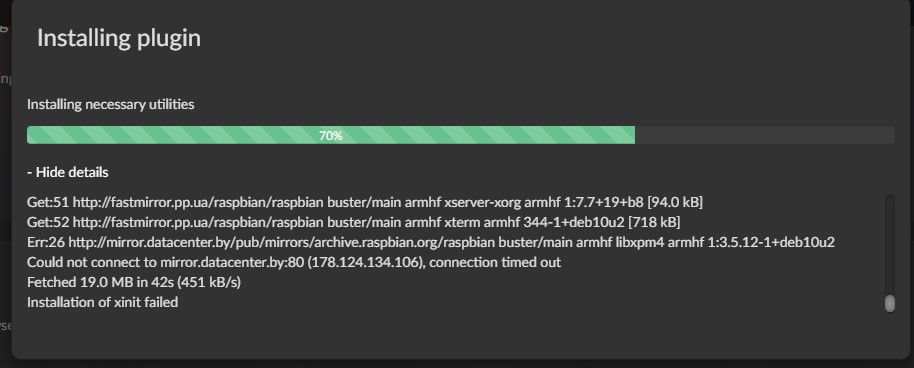

Installed from plugin store, but from another mirrow. Because some files are in the Belorusian server. Belorusian servers are blocked in Ukraine.

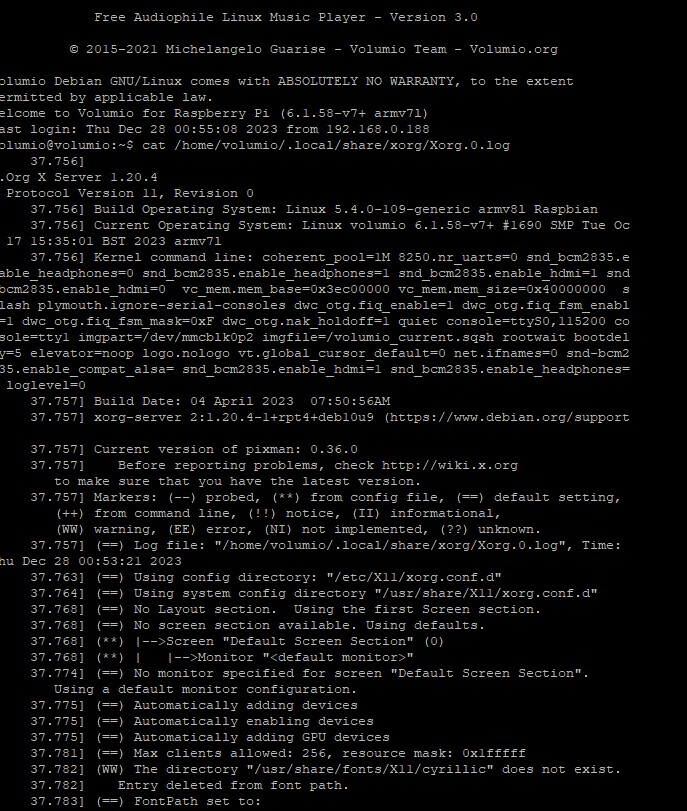

Is the Xorg.0.log complete? Please try to copy the output from Volumio’s console, paste it into a post and format the pasted content with code tags for better readablity.
Did you change Volumio’s root password?
Volumio Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Welcome to Volumio for Raspberry Pi (6.1.58-v7+ armv7l)
Last login: Thu Dec 28 00:55:08 2023 from 192.168.0.188

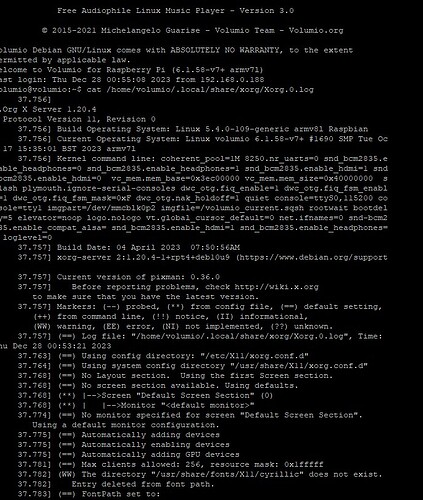

volumio@volumio:~$ cat /home/volumio/.local/share/xorg/Xorg.0.log
[ 37.756]
X.Org X Server 1.20.4
X Protocol Version 11, Revision 0
[ 37.756] Build Operating System: Linux 5.4.0-109-generic armv8l Raspbian
[ 37.756] Current Operating System: Linux volumio 6.1.58-v7+ #1690 SMP Tue Oc t 17 15:35:01 BST 2023 armv7l
[ 37.756] Kernel command line: coherent_pool=1M 8250.nr_uarts=0 snd_bcm2835.e nable_headphones=0 snd_bcm2835.enable_headphones=1 snd_bcm2835.enable_hdmi=1 snd _bcm2835.enable_hdmi=0 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 s plash plymouth.ignore-serial-consoles dwc_otg.fiq_enable=1 dwc_otg.fiq_fsm_enabl e=1 dwc_otg.fiq_fsm_mask=0xF dwc_otg.nak_holdoff=1 quiet console=ttyS0,115200 co nsole=tty1 imgpart=/dev/mmcblk0p2 imgfile=/volumio_current.sqsh rootwait bootdel ay=5 elevator=noop logo.nologo vt.global_cursor_default=0 net.ifnames=0 snd-bcm2 835.enable_compat_alsa= snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_headphones= 1 loglevel=0
[ 37.757] Build Date: 04 April 2023 07:50:56AM
[ 37.757] xorg-server 2:1.20.4-1+rpt4+deb10u9 (Debian -- User Support )
[ 37.757] Current version of pixman: 0.36.0
[ 37.757] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 37.757] Markers: (–) probed, () from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 37.757] (==) Log file: “/home/volumio/.local/share/xorg/Xorg.0.log”, Time: Thu Dec 28 00:53:21 2023
[ 37.763] (==) Using config directory: “/etc/X11/xorg.conf.d”
[ 37.764] (==) Using system config directory “/usr/share/X11/xorg.conf.d”
[ 37.768] (==) No Layout section. Using the first Screen section.
[ 37.768] (==) No screen section available. Using defaults.
[ 37.768] () |–>Screen “Default Screen Section” (0)
[ 37.768] (**) | |–>Monitor “”
[ 37.774] (==) No monitor specified for screen “Default Screen Section”.
Using a default monitor configuration.
[ 37.775] (==) Automatically adding devices
[ 37.775] (==) Automatically enabling devices
[ 37.775] (==) Automatically adding GPU devices
[ 37.781] (==) Max clients allowed: 256, resource mask: 0x1fffff
[ 37.782] (WW) The directory “/usr/share/fonts/X11/cyrillic” does not exist.
[ 37.782] Entry deleted from font path.

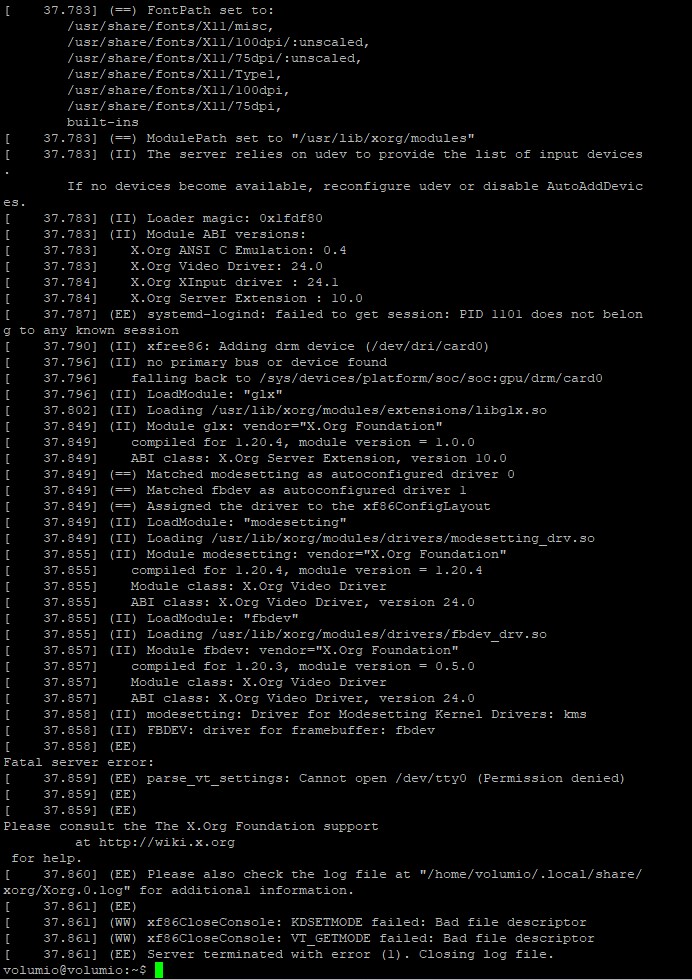

[ 37.783] (==) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/75dpi,
built-ins
[ 37.783] (==) ModulePath set to “/usr/lib/xorg/modules”
[ 37.783] (II) The server relies on udev to provide the list of input devices .
If no devices become available, reconfigure udev or disable AutoAddDevic es.
[ 37.783] (II) Loader magic: 0x1fdf80
[ 37.783] (II) Module ABI versions:
[ 37.783] X.Org ANSI C Emulation: 0.4
[ 37.783] X.Org Video Driver: 24.0
[ 37.784] X.Org XInput driver : 24.1
[ 37.784] X.Org Server Extension : 10.0
[ 37.787] (EE) systemd-logind: failed to get session: PID 1101 does not belon g to any known session
[ 37.790] (II) xfree86: Adding drm device (/dev/dri/card0)
[ 37.796] (II) no primary bus or device found
[ 37.796] falling back to /sys/devices/platform/soc/soc:gpu/drm/card0
[ 37.796] (II) LoadModule: “glx”
[ 37.802] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 37.849] (II) Module glx: vendor=“X.Org Foundation”
[ 37.849] compiled for 1.20.4, module version = 1.0.0
[ 37.849] ABI class: X.Org Server Extension, version 10.0
[ 37.849] (==) Matched modesetting as autoconfigured driver 0
[ 37.849] (==) Matched fbdev as autoconfigured driver 1
[ 37.849] (==) Assigned the driver to the xf86ConfigLayout
[ 37.849] (II) LoadModule: “modesetting”
[ 37.849] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so
[ 37.855] (II) Module modesetting: vendor=“X.Org Foundation”
[ 37.855] compiled for 1.20.4, module version = 1.20.4
[ 37.855] Module class: X.Org Video Driver
[ 37.855] ABI class: X.Org Video Driver, version 24.0
[ 37.855] (II) LoadModule: “fbdev”
[ 37.855] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so
[ 37.857] (II) Module fbdev: vendor=“X.Org Foundation”
[ 37.857] compiled for 1.20.3, module version = 0.5.0
[ 37.857] Module class: X.Org Video Driver
[ 37.857] ABI class: X.Org Video Driver, version 24.0
[ 37.858] (II) modesetting: Driver for Modesetting Kernel Drivers: kms
[ 37.858] (II) FBDEV: driver for framebuffer: fbdev
[ 37.858] (EE)
Fatal server error:
[ 37.859] (EE) parse_vt_settings: Cannot open /dev/tty0 (Permission denied)
[ 37.859] (EE)
[ 37.859] (EE)
Please consult the The X.Org Foundation support
at http://wiki.x.org
for help.
[ 37.860] (EE) Please also check the log file at “/home/volumio/.local/share/ xorg/Xorg.0.log” for additional information.
[ 37.861] (EE)
[ 37.861] (WW) xf86CloseConsole: KDSETMODE failed: Bad file descriptor
[ 37.861] (WW) xf86CloseConsole: VT_GETMODE failed: Bad file descriptor
[ 37.861] (EE) Server terminated with error (1). Closing log file.
What’s the result of
cat /etc/X11/Xwrapper.config
Welcome to Volumio for Raspberry Pi (6.1.58-v7+ armv7l)
Last login: Thu Dec 28 01:17:55 2023 from 192.168.0.188
volumio@volumio:~$ cat /etc/X11/Xwrapper.config
# Xwrapper.config (Debian X Window System server wrapper configuration file)
#
# This file was generated by the post-installation script of the
# xserver-xorg-legacy package using values from the debconf database.
#
# See the Xwrapper.config(5) manual page for more information.
#
# This file is automatically updated on upgrades of the xserver-xorg-legacy
# package *only* if it has not been modified since the last upgrade of that
# package.
#
# If you have edited this file but would like it to be automatically updated
# again, run the following command as root:
# dpkg-reconfigure xserver-xorg-legacy
allowed_users=anybody
volumio@volumio:~$
That looks ok.
I suggest to start with a new Volumio installation, do the modification of “/boot/userconfig.txt”, reboot and install the Touch Display plugin.
Ok. Tomorrow will try again. Thank you a lot!
