Volumio - minimalist audio streamer

Diy and Tweaks Diy Volumio Projects
1

Aluminium case width 43 cm - height 9 cm - depth 30 cm. 8 mm aluminum front.
Complete minimalism.

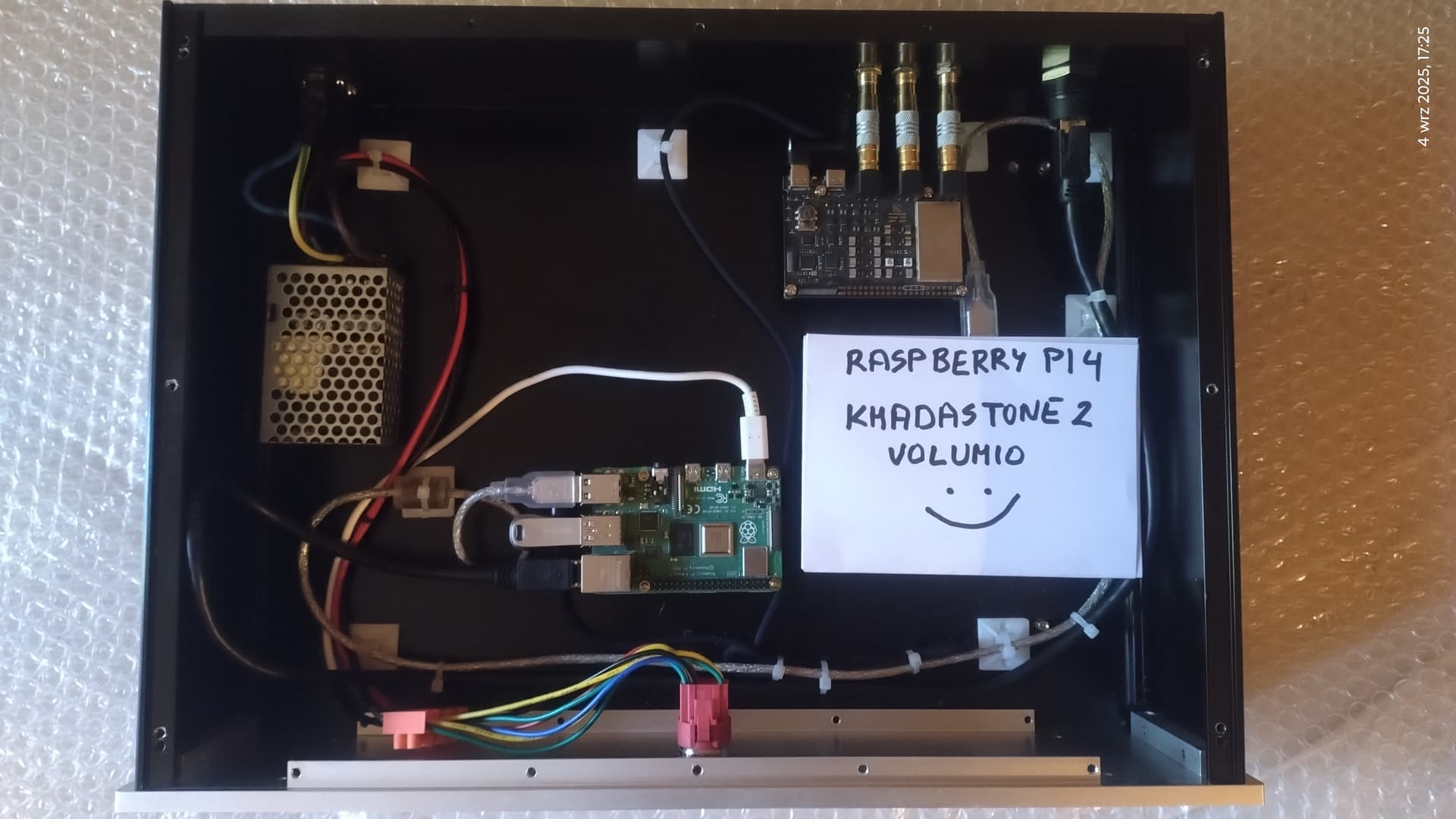

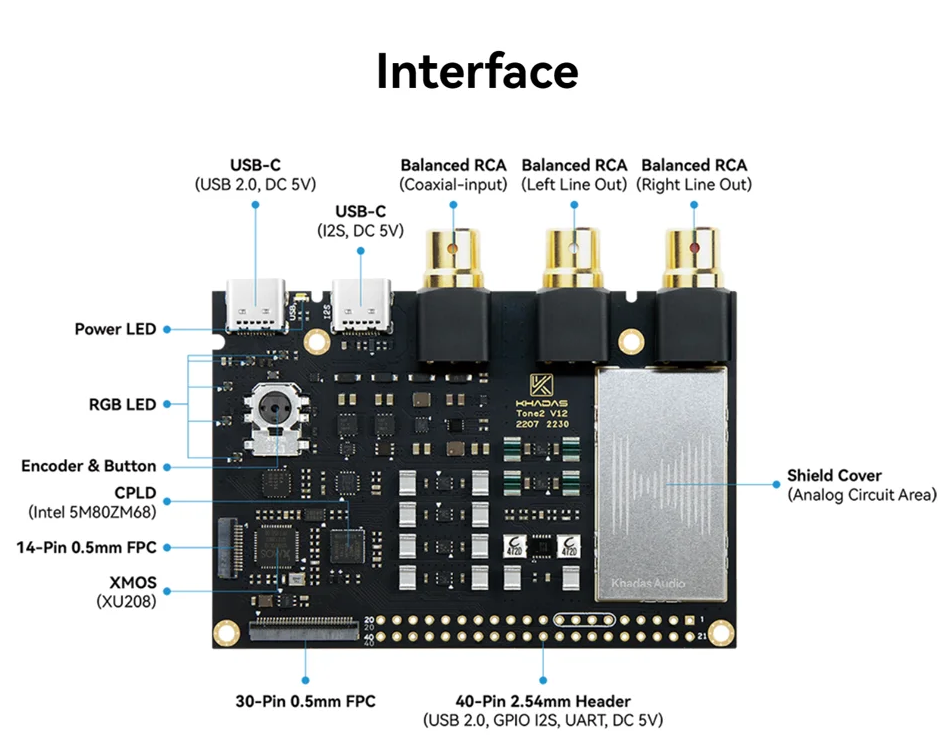

Inside Raspberry Pi 4B / Khadas Tone 2 Maker / USB - SATA adapter with 2.5 cal 1 TB SSD SATA - Mean Well 5V - 5A power supply.

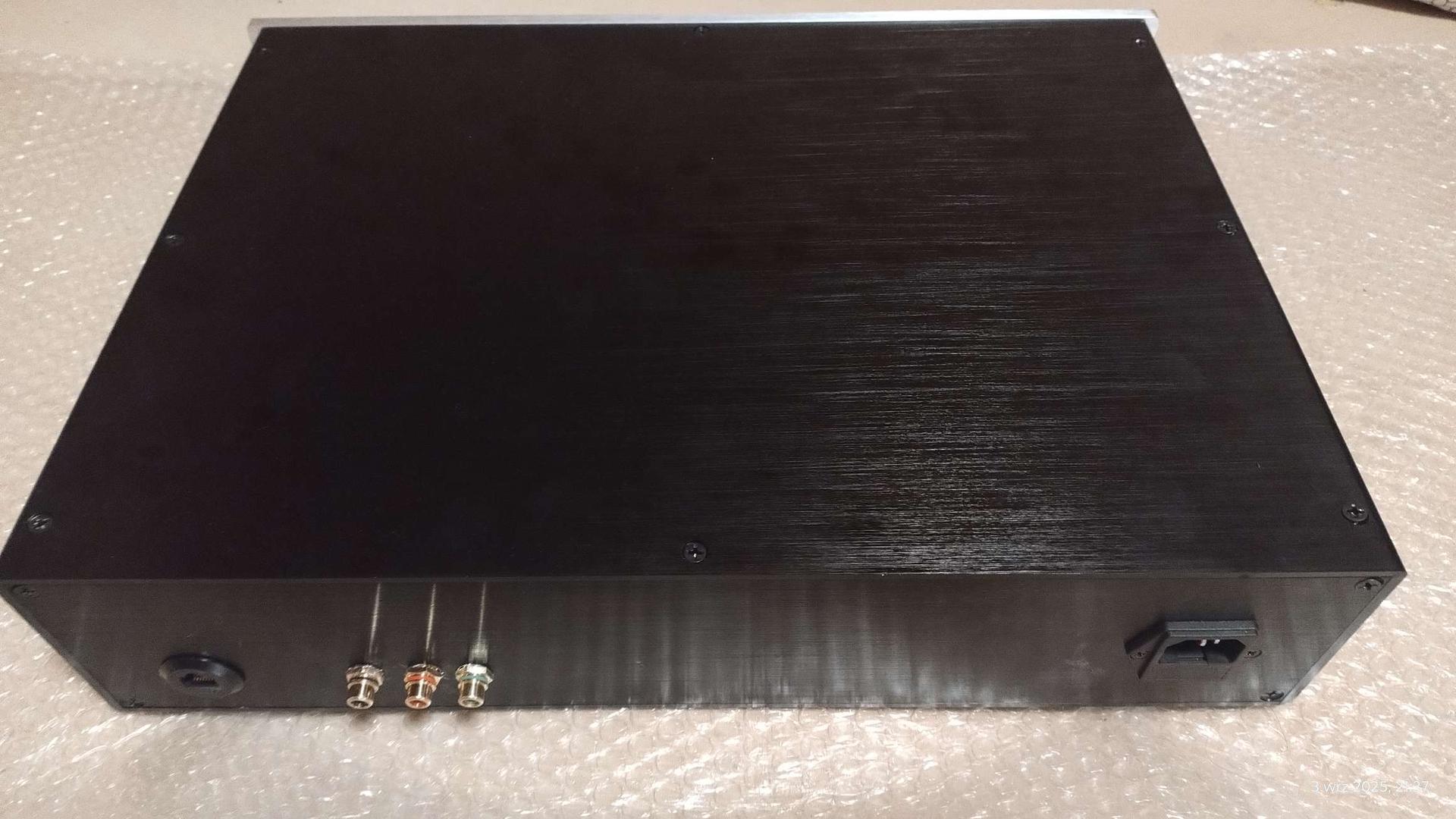

1 Gbit port LAN - 2 x RCA output and 1 x RCA digital in.
If no music is playing from Volumio, the Digital input is active in Khadas Tone 2 Maker.

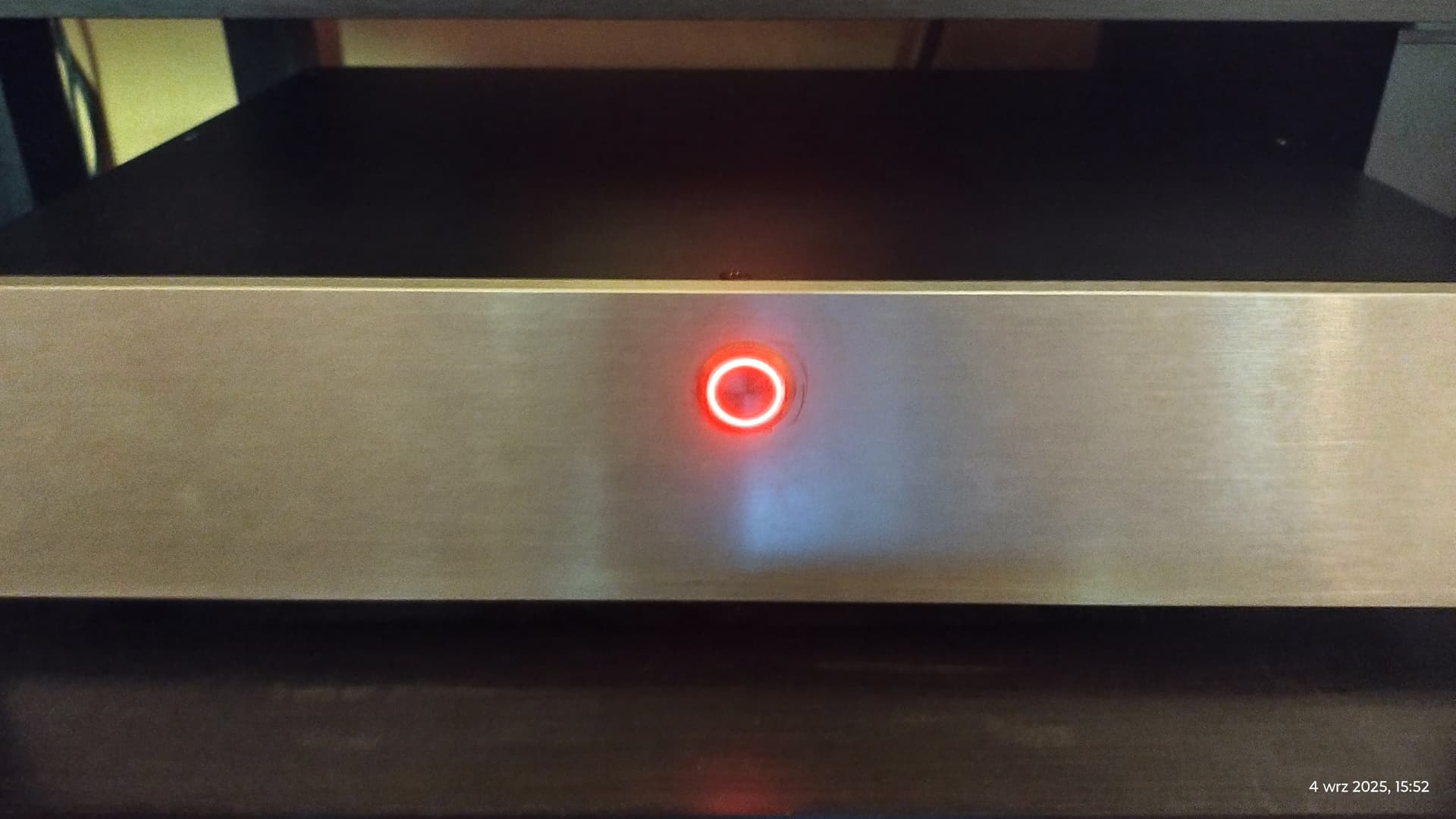

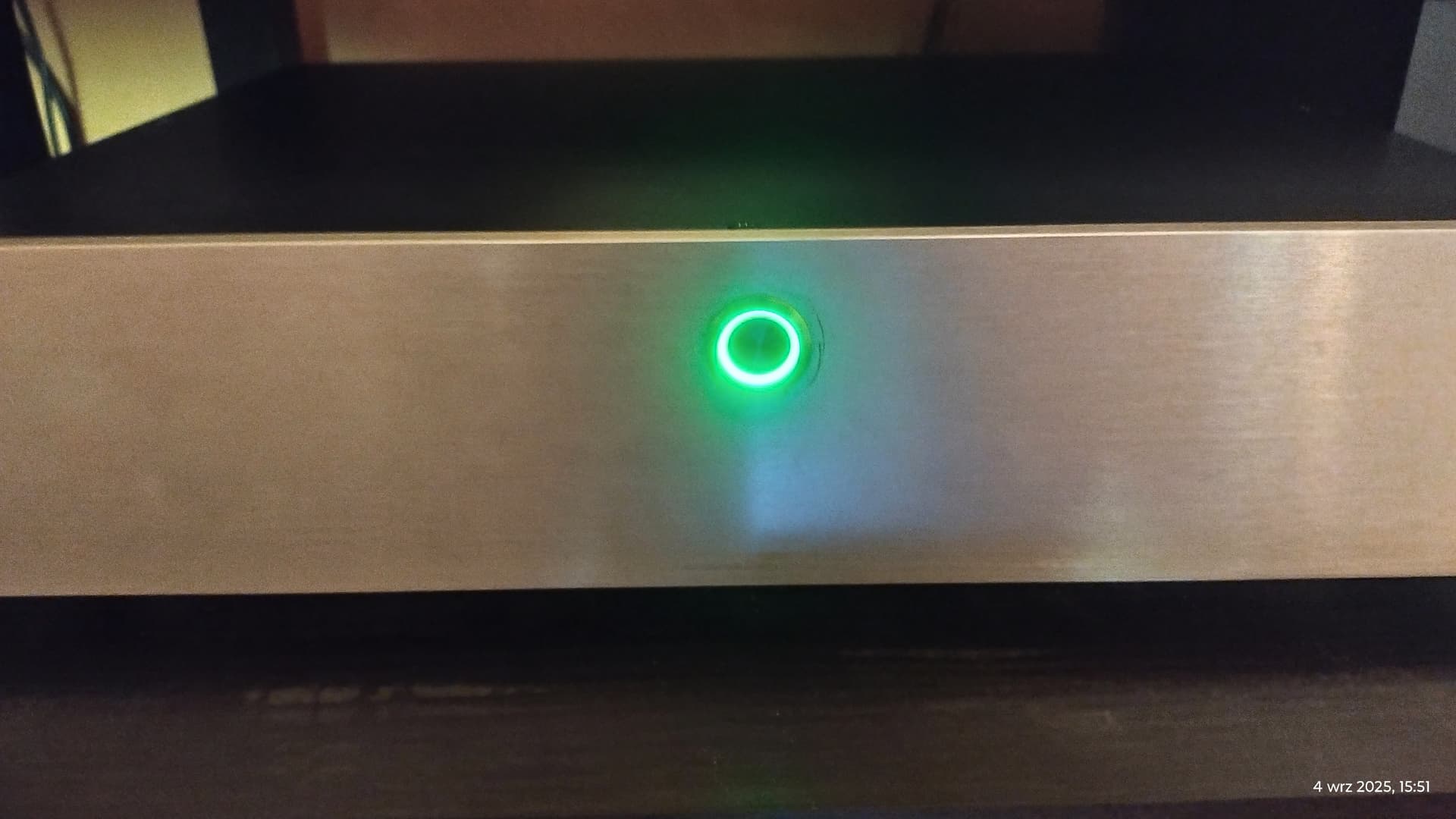

22 mm aluminium two-color switch - power off - red / power on - green.

Shopping on sale on AliExpress
Aluminium Case - 75 euro
Khadas Tone 2 Maker - 70 euro
Power Switch - LAN port - cables - power supply etc. - 20 euro

IMG_20250904_172508259
IMG_20250904_1725082591920×1080 134 KB

IMG_20250903_213725083
IMG_20250903_2137250831920×1080 197 KB

IMG_20250904_155208049
IMG_20250904_1552080491920×1080 92 KB

IMG_20250904_155159173
IMG_20250904_1551591731920×1080 87.4 KB

Przechwycenie obrazu ekranu_2025-09-03_22-00-41
Przechwycenie obrazu ekranu_2025-09-03_22-00-41949×751 358 KB

5 Likes
3

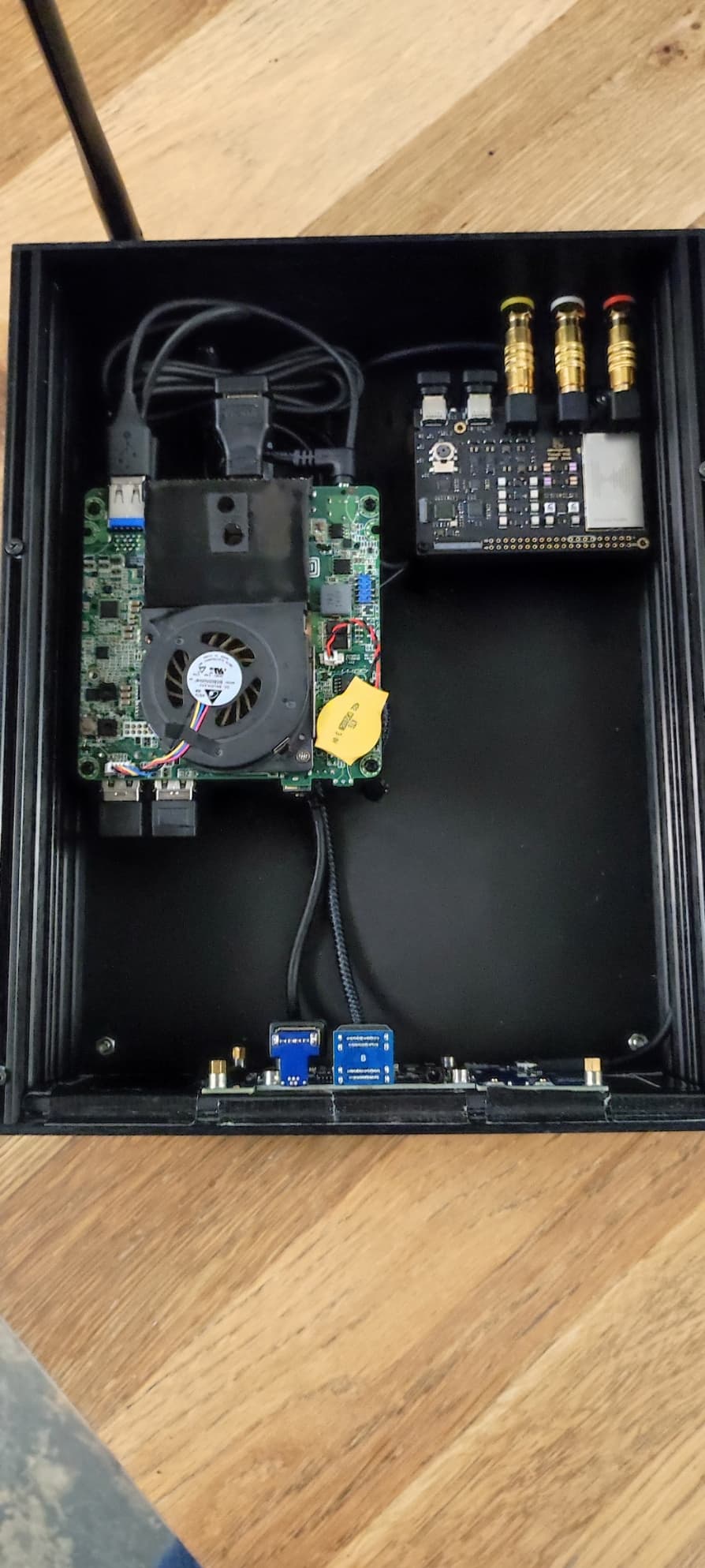

@tweed77 I stole your design for the back panel; I don’t know why i didnt think of this the first time around. it’s SO MUCH neater, not having to find room for the enormous RCA cable in the case…

IMG_20251018_203947
IMG_20251018_203947894×1987 144 KB

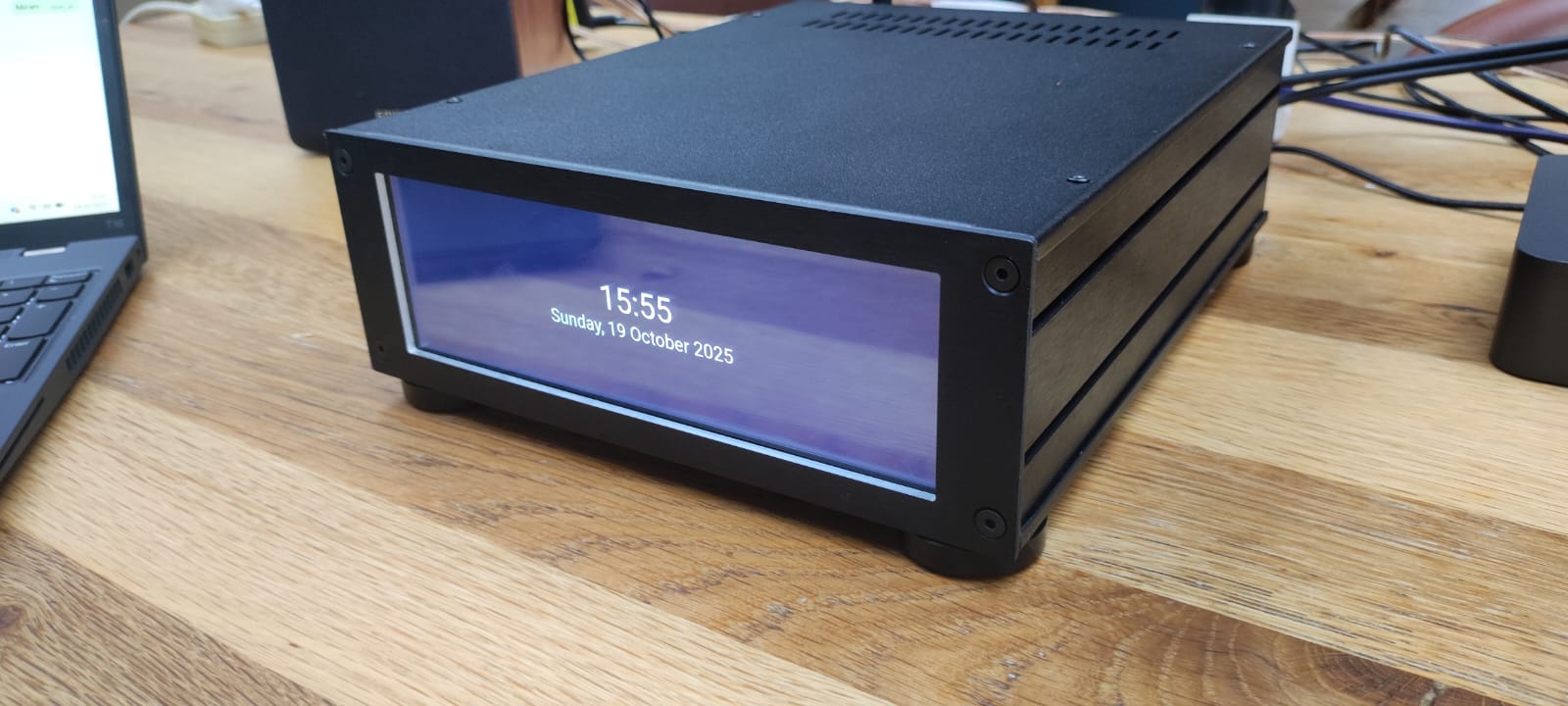

IMG-20251019-WA0001
IMG-20251019-WA00011600×720 125 KB

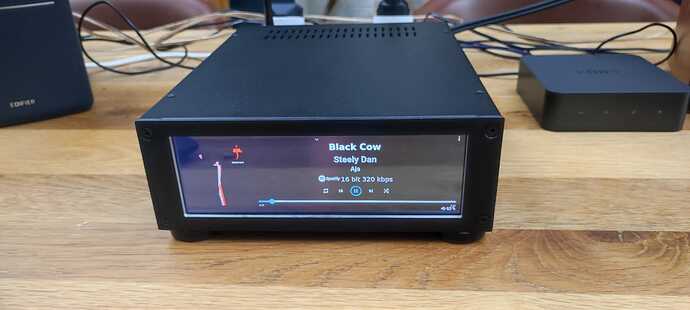

IMG-20251019-WA0002
IMG-20251019-WA00021600×720 94.3 KB

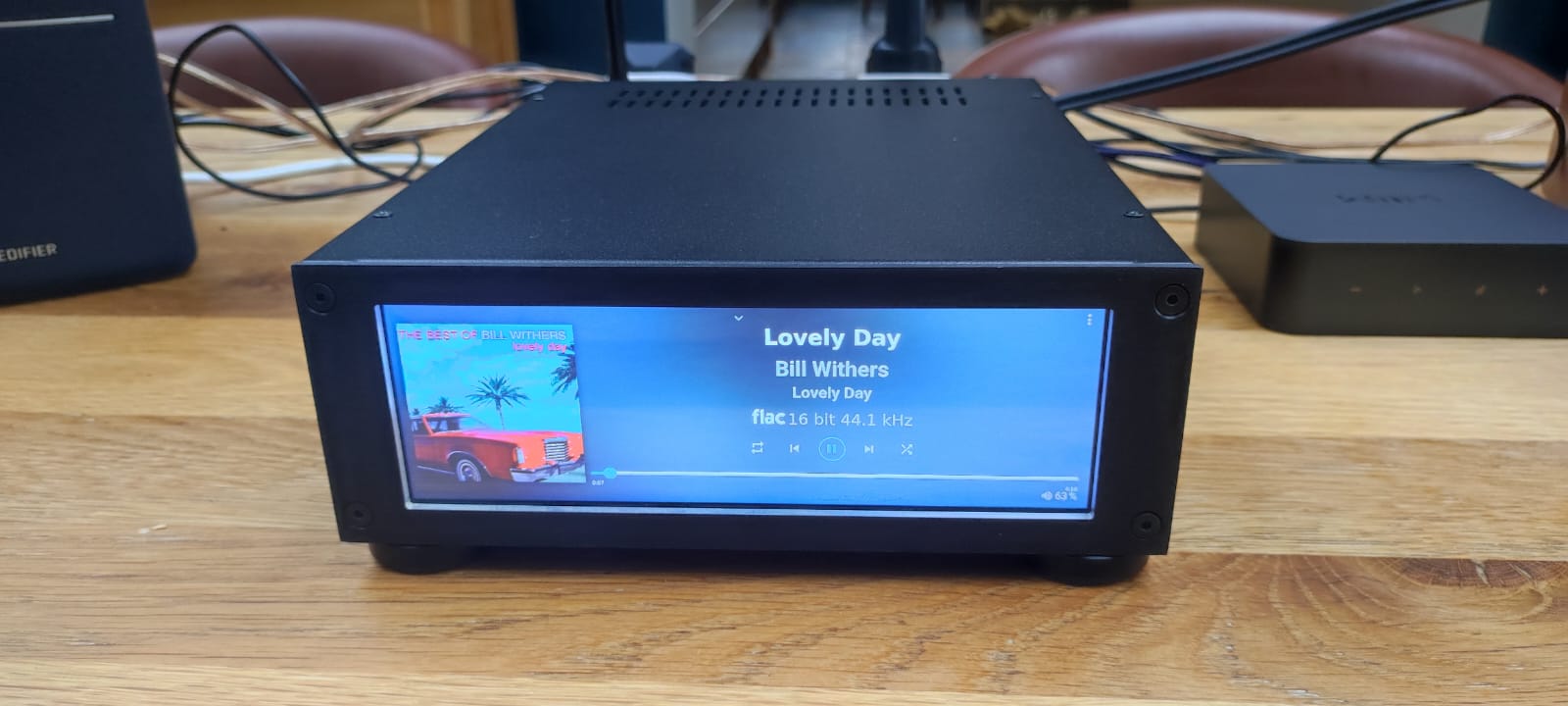

IMG-20251019-WA0003
IMG-20251019-WA00031600×720 102 KB

…and I’ve got it on ebay should anyone be interested…
