Touch alignment issue - Waveshare 7 Inch

Help and Support
1

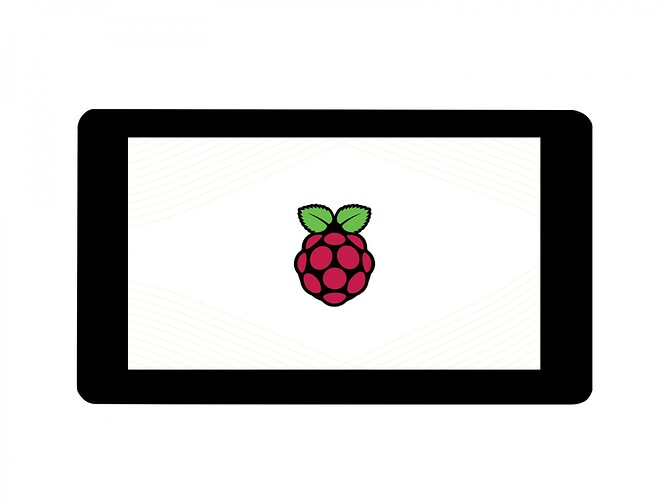

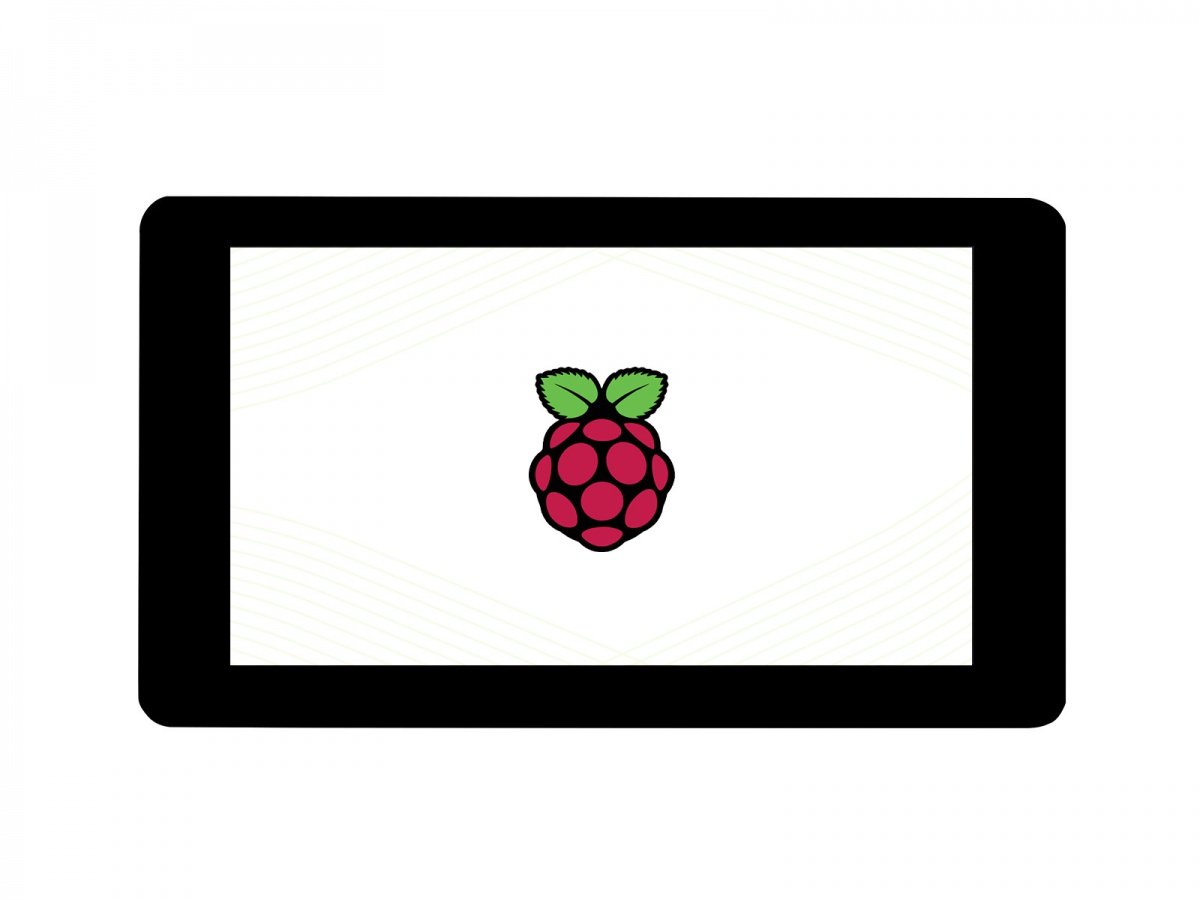

I am using the below display with my Pi 4B 1 GB model. Everything works fine except a small shift in the touch. Basically if I need to play/pause, I need to touch a few mm left almost on the previous track button. Looks like a touch calibration issue. Any help here?

2

@gvolt and others, Any help?

3

Hi @njaustin123

What is the output of:

cat /boot/config.txt
cat /boot/userconfig.txt
cat /boot/volumioconfig,txt

Have you tried to setup your screen using the plugin “Pi Screen Setup”?
If not than factory reset your device and install the plugin and perform the setup.

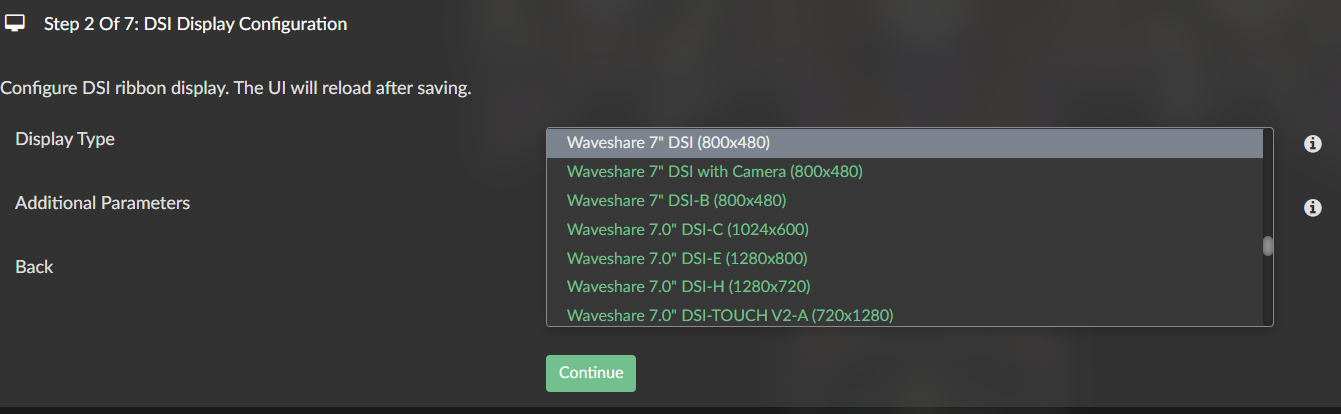

image1341Ă—414 55.4 KB

4

Thanks @Wheaten.

Here is the output:

### DO NOT EDIT THIS FILE ###
### APPLY CUSTOM PARAMETERS TO userconfig.txt ###
initramfs volumio.initrd
gpu_mem=128
gpu_mem_256=32
gpu_mem_512=32
gpu_mem_1024=128
max_usb_current=1
[pi5]
usb_max_current_enable=1
[all]
include volumioconfig.txt
include userconfig.txt


# Add your custom config.txt options to this file, which will be preserved during updates
dtoverlay=vc4-kms-v3d
dtoverlay=vc4-kms-dsi-7inch

#### Touch Display rotation setting below: do not alter ####
lcd_rotate=2
display_hdmi_rotate=2
### DO NOT EDIT THIS FILE ###
### APPLY CUSTOM PARAMETERS TO userconfig.txt ###

# Compute Module 4 USB configuration
[cm4]
dtoverlay=dwc2,dr_mode=host
otg_mode=1

# Pi 5 NVMe/PCIe support
[pi5]
# dtparam=uart0_console # Disabled by default
dtparam=nvme
dtparam=pciex1_gen=2

# DRM/KMS graphics driver - per-board to avoid Pi Zero 2 W boot issues
# Firmware auto-remaps overlay to board-specific variant
[pi2]
dtoverlay=vc4-kms-v3d
[pi3]
dtoverlay=vc4-kms-v3d
[pi4]
dtoverlay=vc4-kms-v3d
[pi5]
dtoverlay=vc4-kms-v3d

# Pi Zero 2 W - KMS omitted due to boot failures and no DSI connector
# HDMI works via firmware framebuffer without KMS
[pi02]

# Common settings
[all]
arm_64bit=0
dtparam=audio=on
audio_pwm_mode=2
dtparam=i2c_arm=on
disable_splash=1
hdmi_force_hotplug=1
force_eeprom_read=0
display_auto_detect=1

Haven’t tried “Pi Screen Setup”. Will try it later after you confirm.

5

Please factory reset the device and use the plugin.

6

Thanks @Wheaten . Will do that and get back

7

@Wheaten , Tried Pi Screen Setup. It seems working even without factory reset. Now touch response is fine. Thanks a lot.
