Hi everyone,
While building my custom CNC-machined Pi 5 streamer, I realized I needed a more sophisticated way to control my RGB power button than what was currently available for the new Pi 5 architecture.
I’ve spent some time developing a plugin (with a helping hand from Google Gemini for the coding) that allows for full control of an RGB LED via the Volumio UI.
Features:

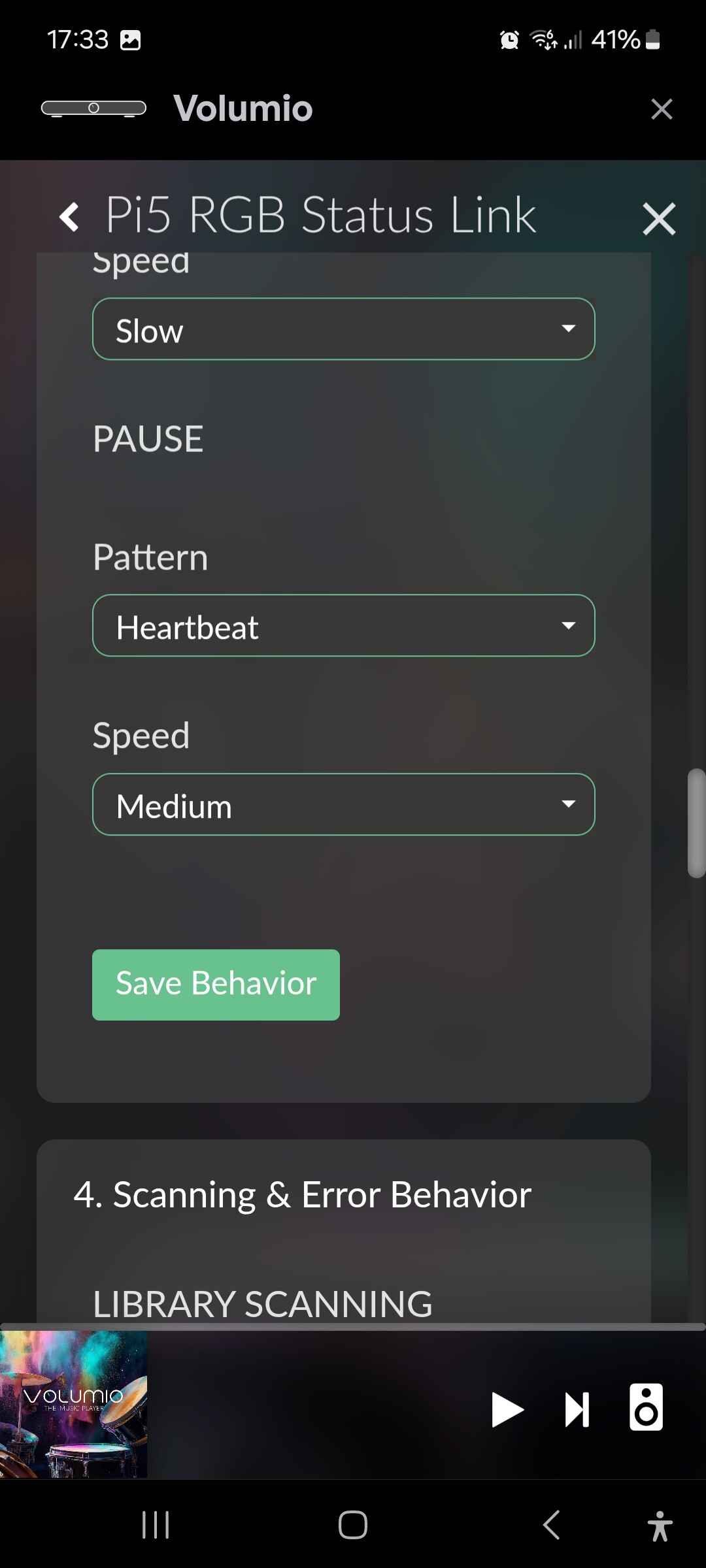

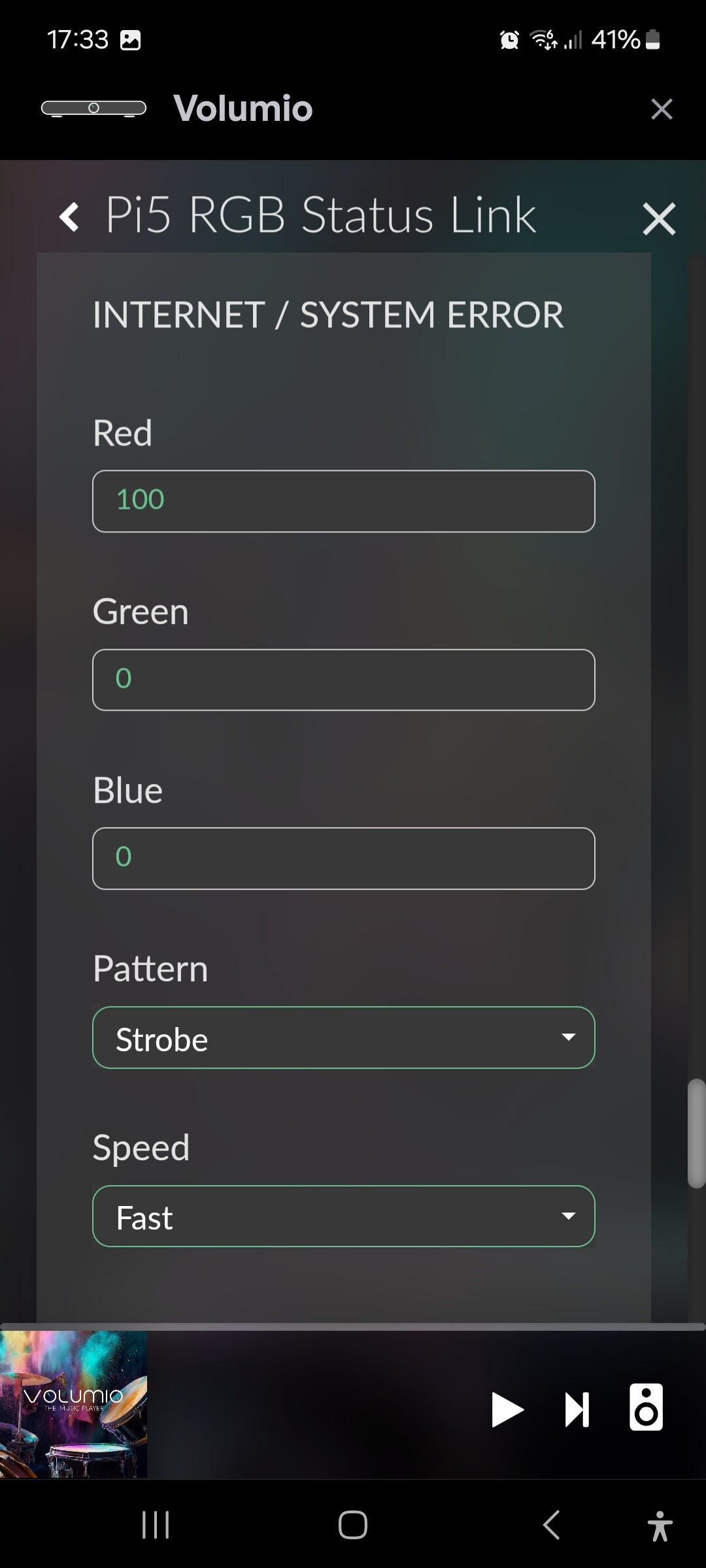

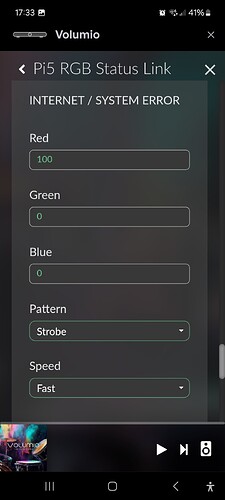

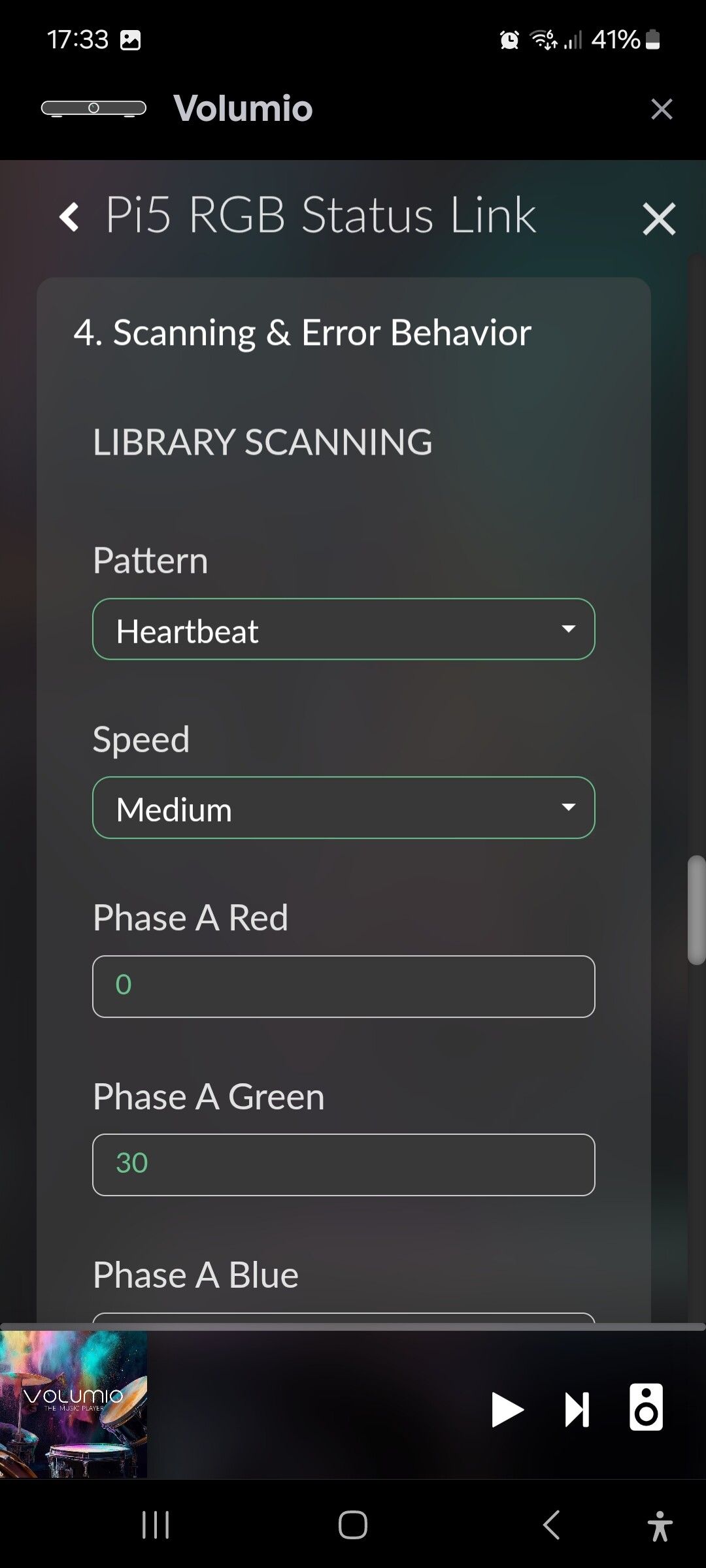

Multiple Modes: Solid, Strobe, Breath, and Heartbeat.

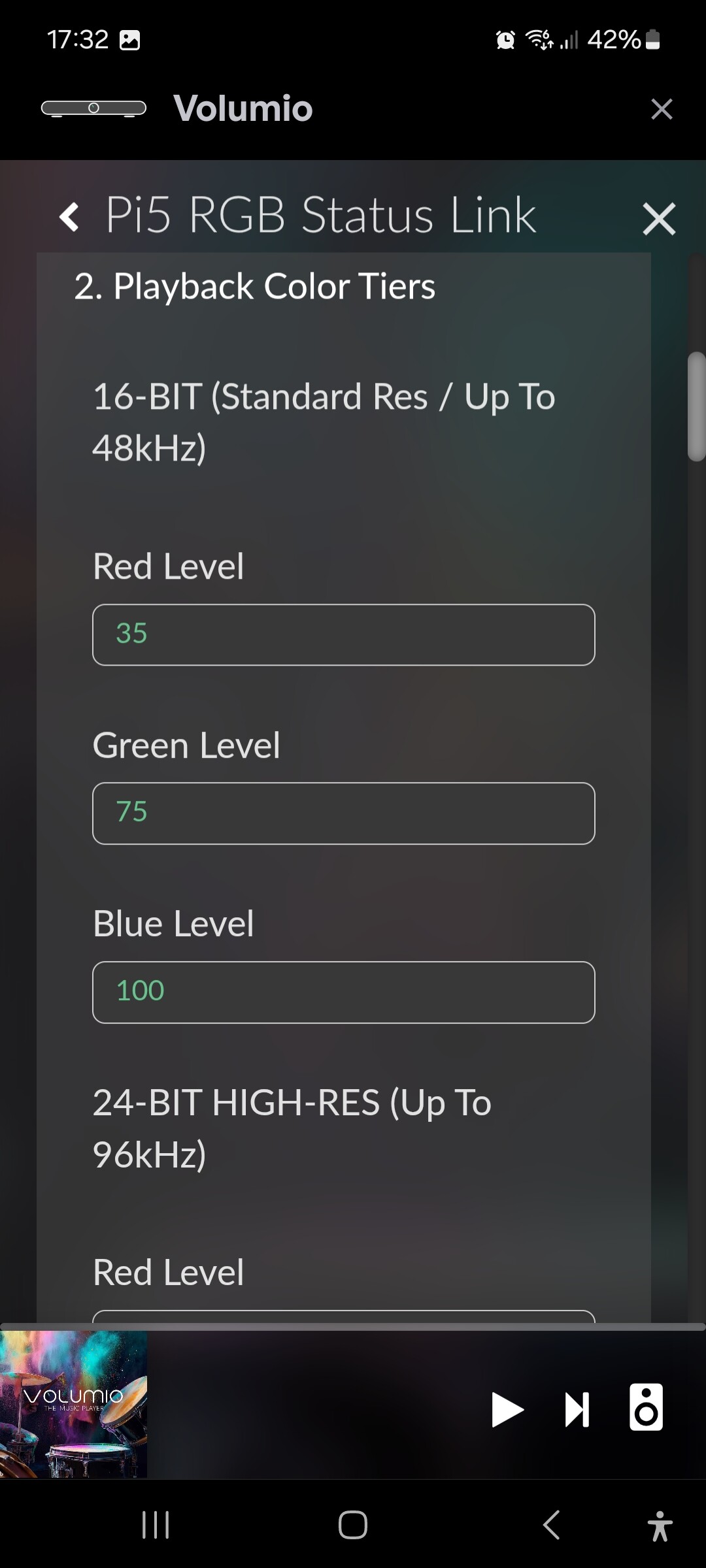

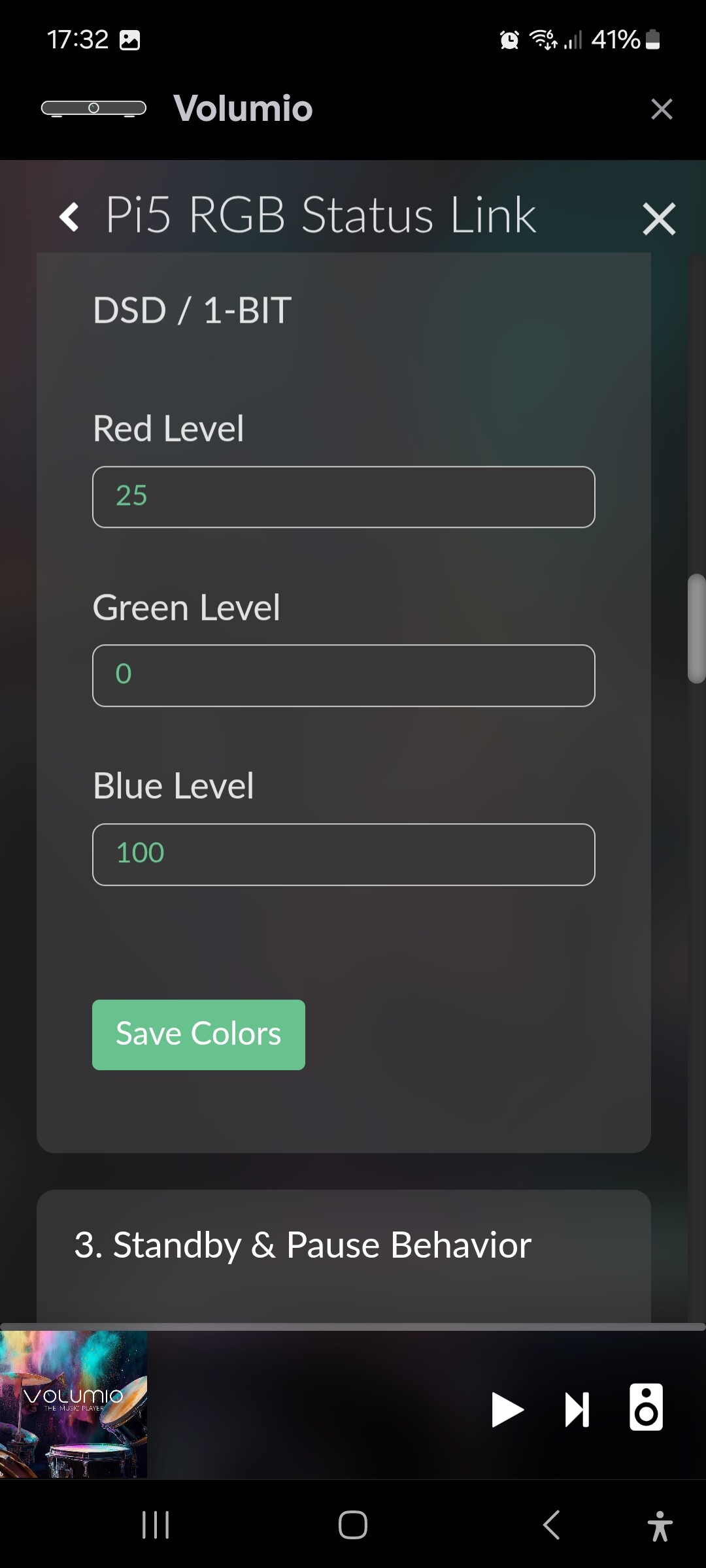

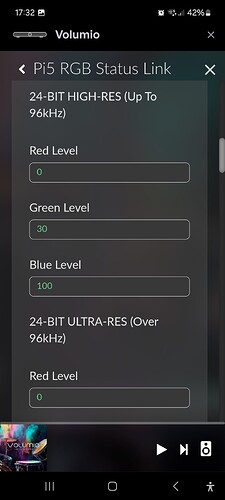

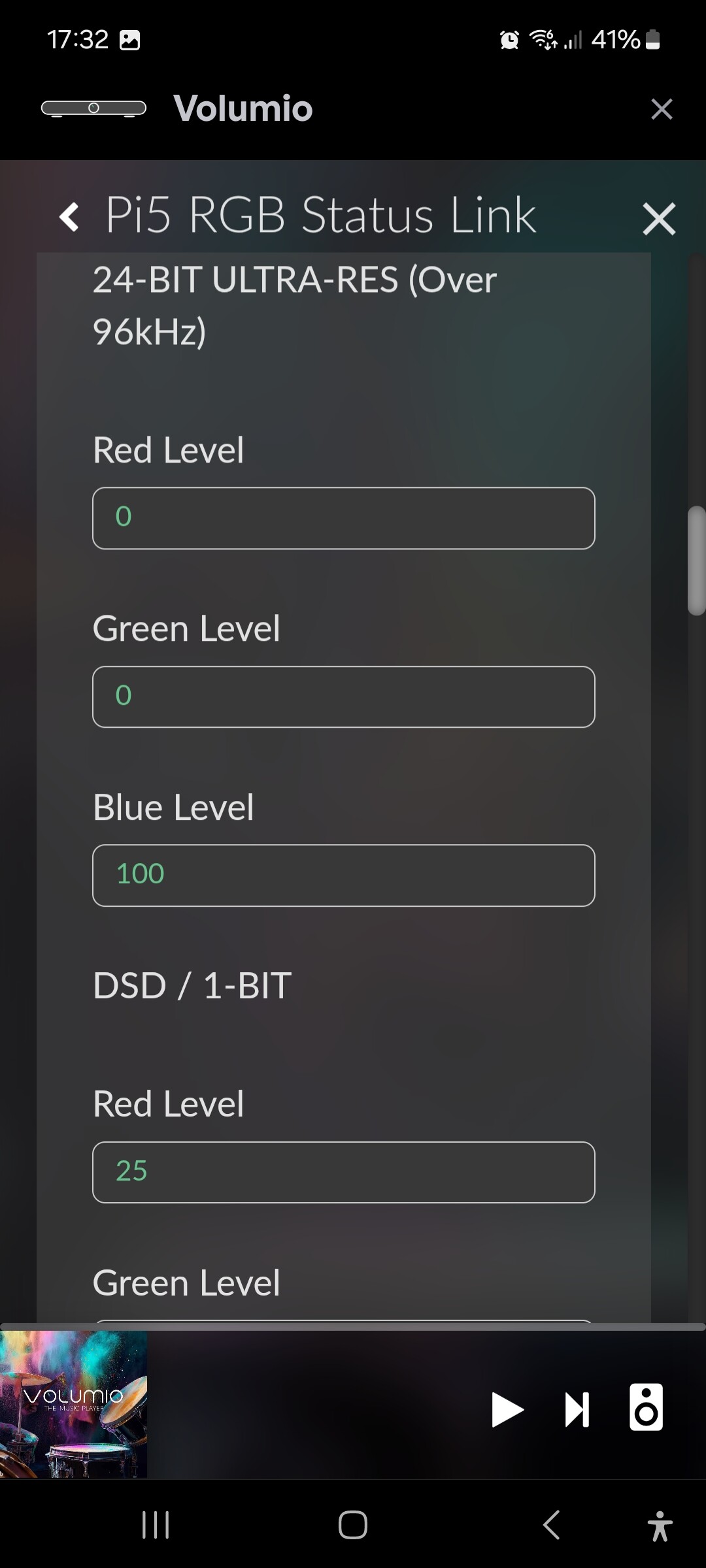

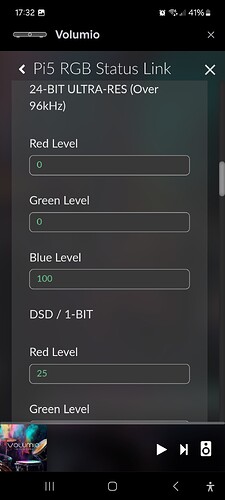

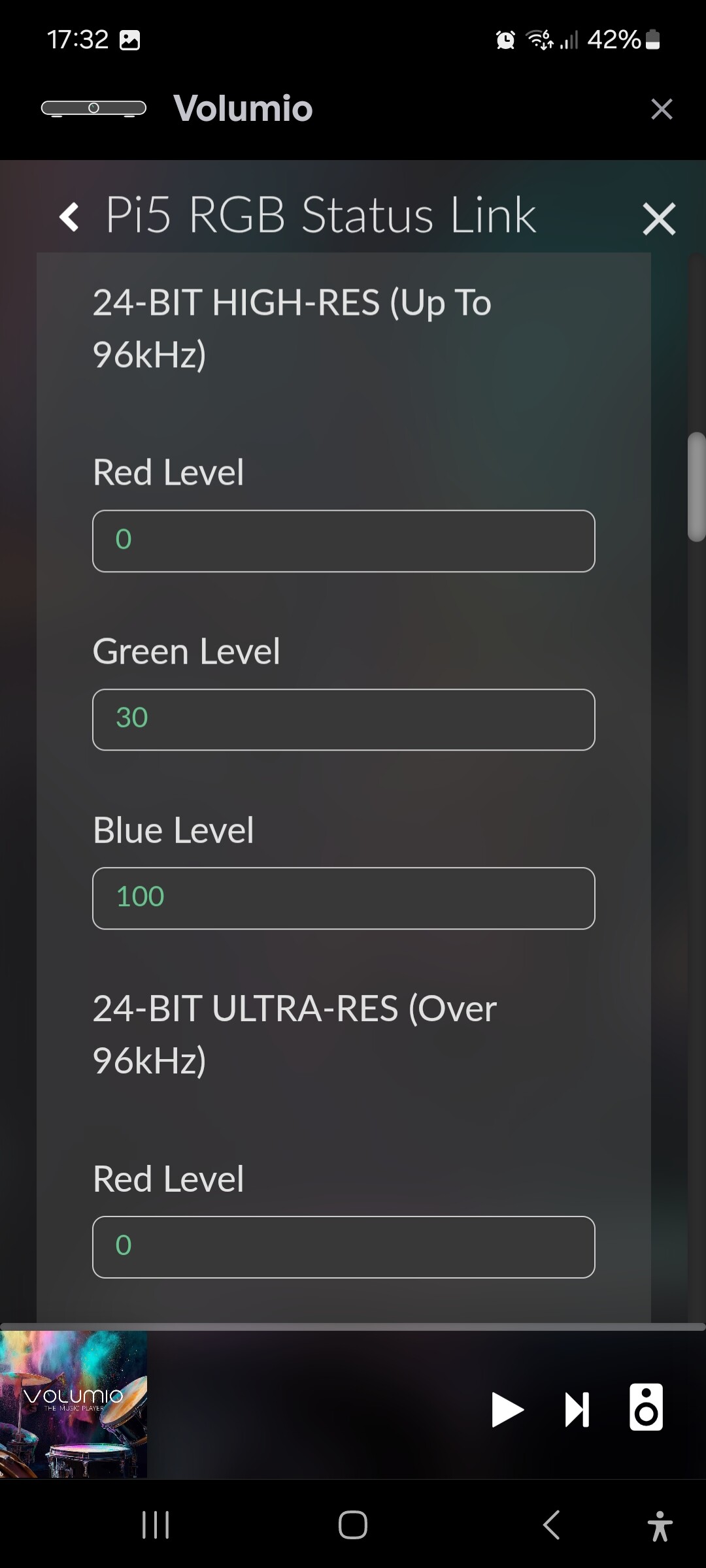

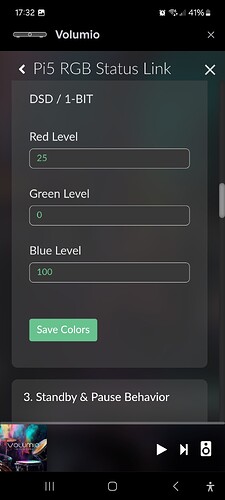

Bit Depth and sample rate conveyed in custom colour combinations.
Speed Control: Selectable Slow, Medium, or Fast
for animations.

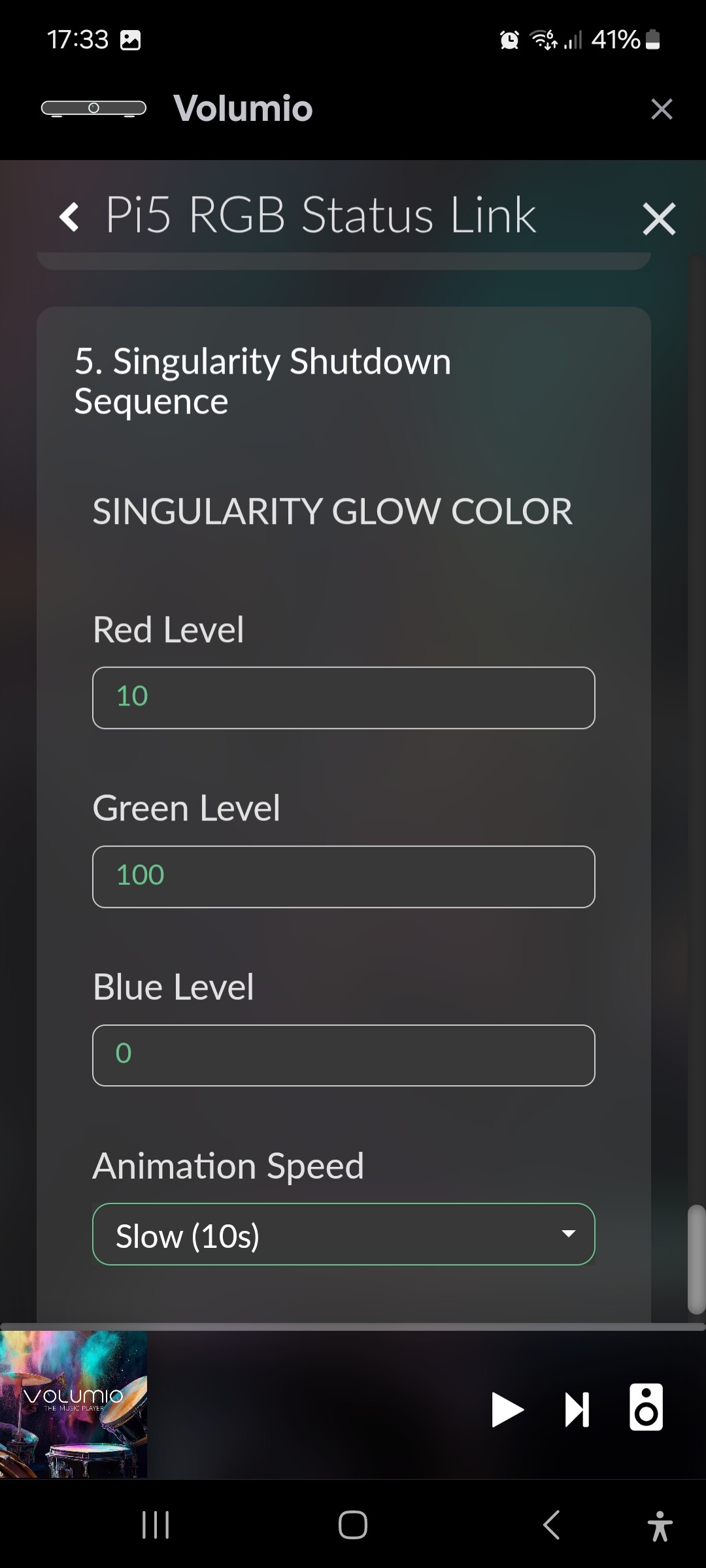

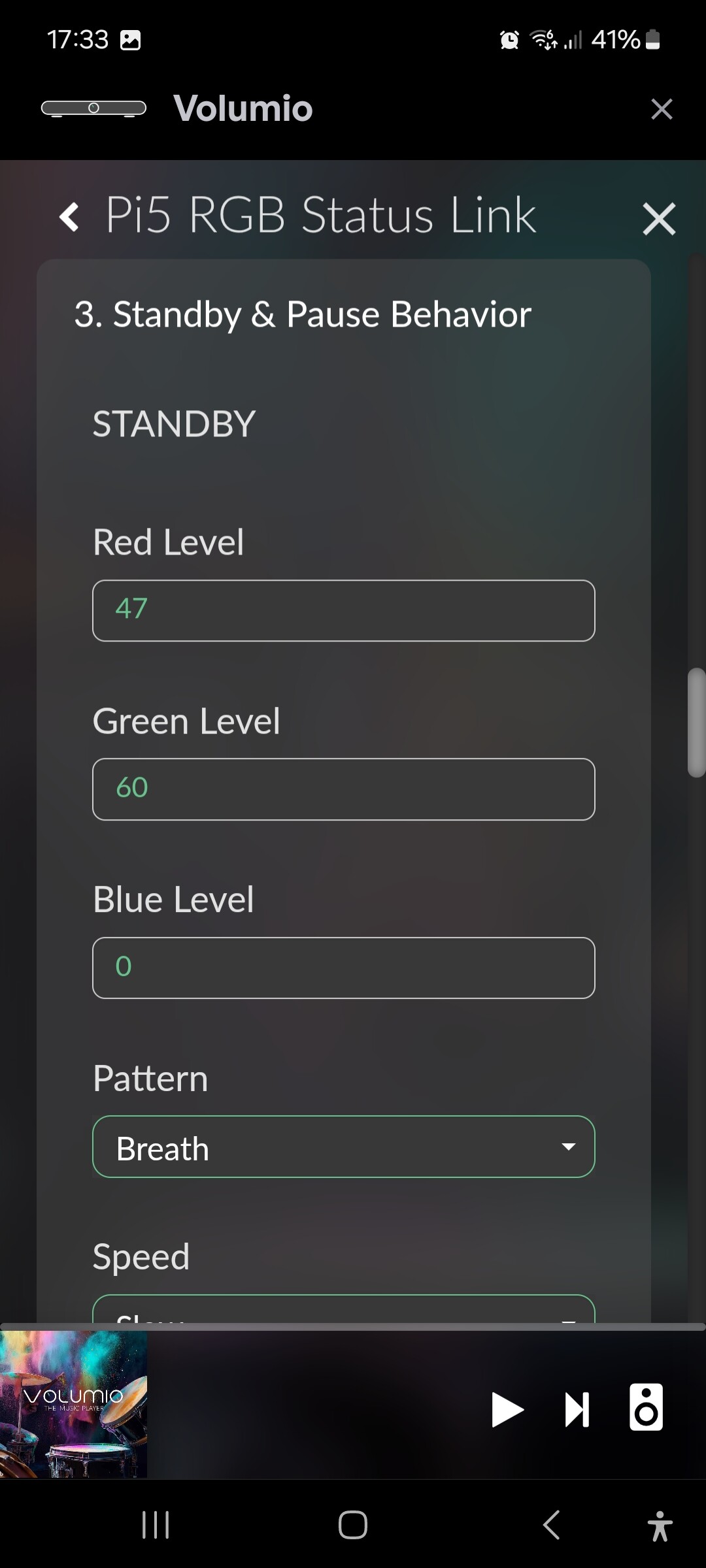

Colour creation: Custom colour creation available for the various states/animations available.

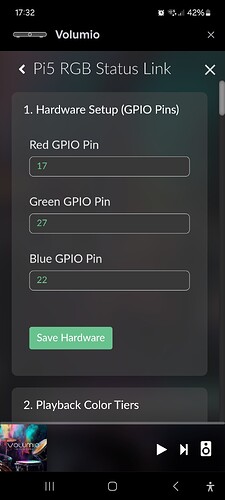

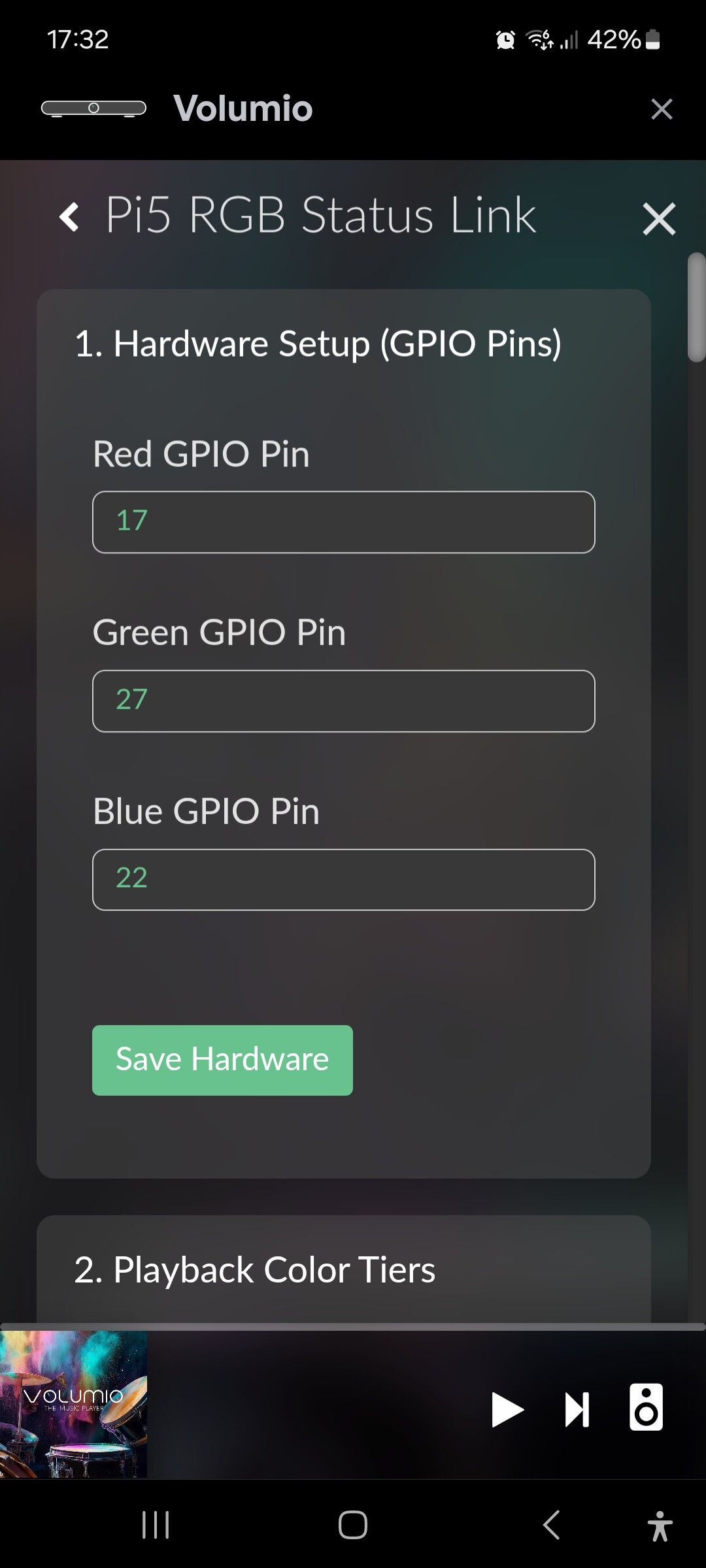

Pi 5 Ready: Written specifically to work with the new GPIO handling on the Raspberry Pi 5.
I’ve been testing on my own build for a while now and it’s been working perfectly.
I’m looking to see if there is any interest from the community in testing this out before I think about a formal submission to the Volumio store.
As with any DIY plugin, it’s “use at your own risk,” but I’ve kept the code clean and focused on stability.
SSH instal
cd ~

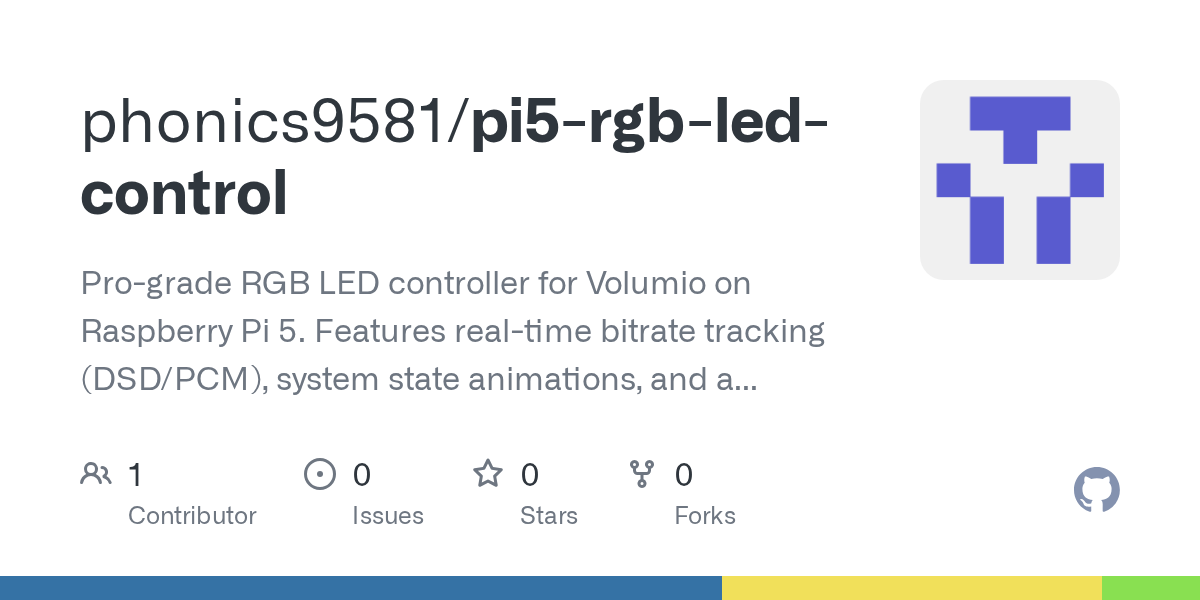

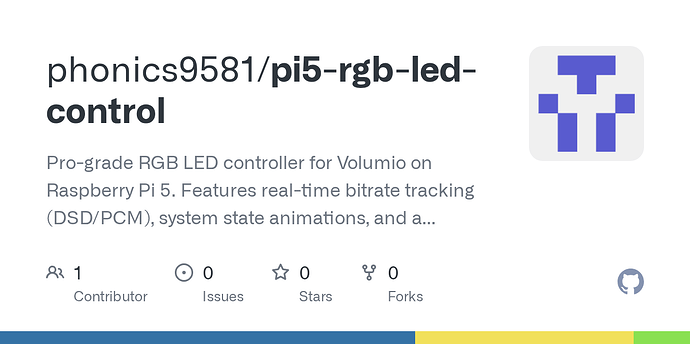

git clone https://github.com/phonics9581/pi5-rgb-led-control
cd pi5-rgb-led-control
volumio plugin install
