NuPrime DAC I2S

Audio Gear DACs
1

Hi,

I’m very happy with my Rivo+, it’s a fantastic device, with a great sound.
I currently have hooked it up to my amps internal DAC. Sounds great too, but now I’m looking at a second hand NuPrime DAC that does I2S. They have a spec sheet with the HDMI pin layout that they use.(https://nuprimeaudio.com/ufaqs/is-nuprimes-i2s-compatible-with-other-brands-i2s-format/) They advise to compare that layout with other equipment’s layout. Seems like good advice.

I was wondering if there is a spec sheet for the Rivo, or can anyone tell me which Rivo I2S setting would be compatible with NuPrime’s?

2

NuPrime DAC requires the PCM/DSD status signal on Pin14

On Rivo Plus, you can select the I2S HDMI Mode “LKS” or “Volumio” to match this requirement and you should be good to go

2 Likes
3

Thanks. Good to know. What about the other pins? Don’t they have any influence on the connection?

4

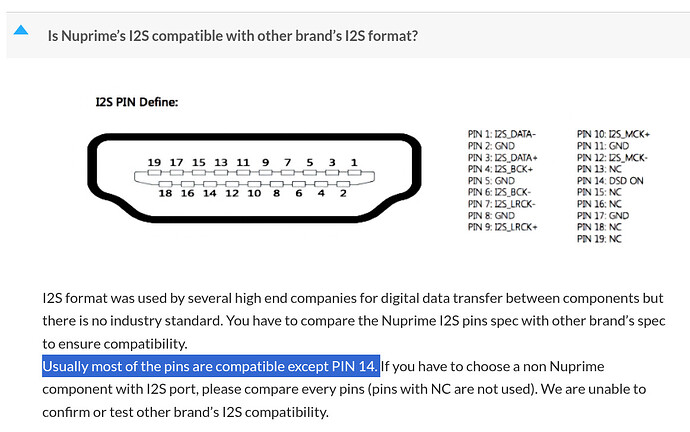

image1163×729 133 KB

the other pins are OK
