So today I finally finished the build of my Volumio streamer.
I’m so happy with it! Addicted to the chair I’m sitting in right now…

So, just a recap of the setup:

  1. The player
    Raspberry 3 B
    Waveshare 7.9" HDMI screen
    Allo Piano 2.1 DAC

  2. Amplifier
    Denon AVR 3600H for main speakers
    NAD MSPA 2600 for subwoofers

  3. Loudspeakers
    Main speakers - DIY build with Vifa mid and bass, ScanSpeak tweeters
    Subwoofers - DIY build with Pioneer 12" drives

With Volumio I only use stereo mode with subwoofers. No surround, that’s for movies :slight_smile:

  1. Software:
    Volumio 3.661
    PeppyMeter 2.0.0 plugin

  2. Subscriptions:
    Volumio Premium
    Qobuz Studio

And I also have own music library on DIY OpenMediaVault NAS connected.

Here are some pics from the build process:

Yes, I’m quiet proud of myself, I did it and I love it… :wink:

I want to say BIG THANK YOU to the whole community for making this possible!
Especially the devs of Volumio, PeppyMeter and all Youtubers, who shared their builds, so I could learn something.

Let the music play!

2 Likes

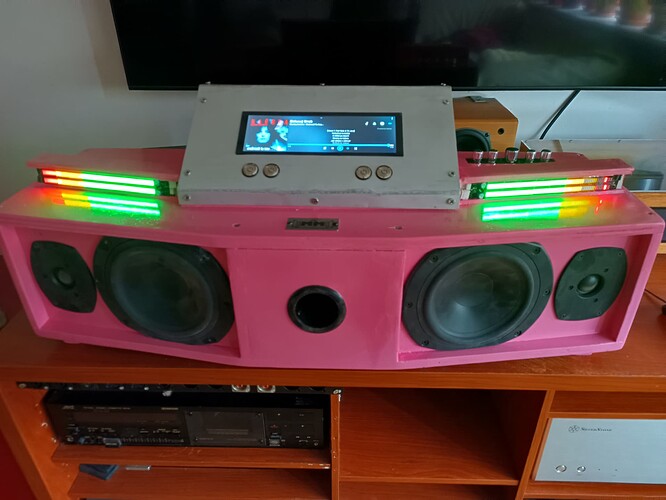

And just for the sake of killing time, I build a second one… :slight_smile:

3 Likes

Still tinkering…

Version 3 is born.

This one is mobile, works on a battery from Makita tools

2 Likes

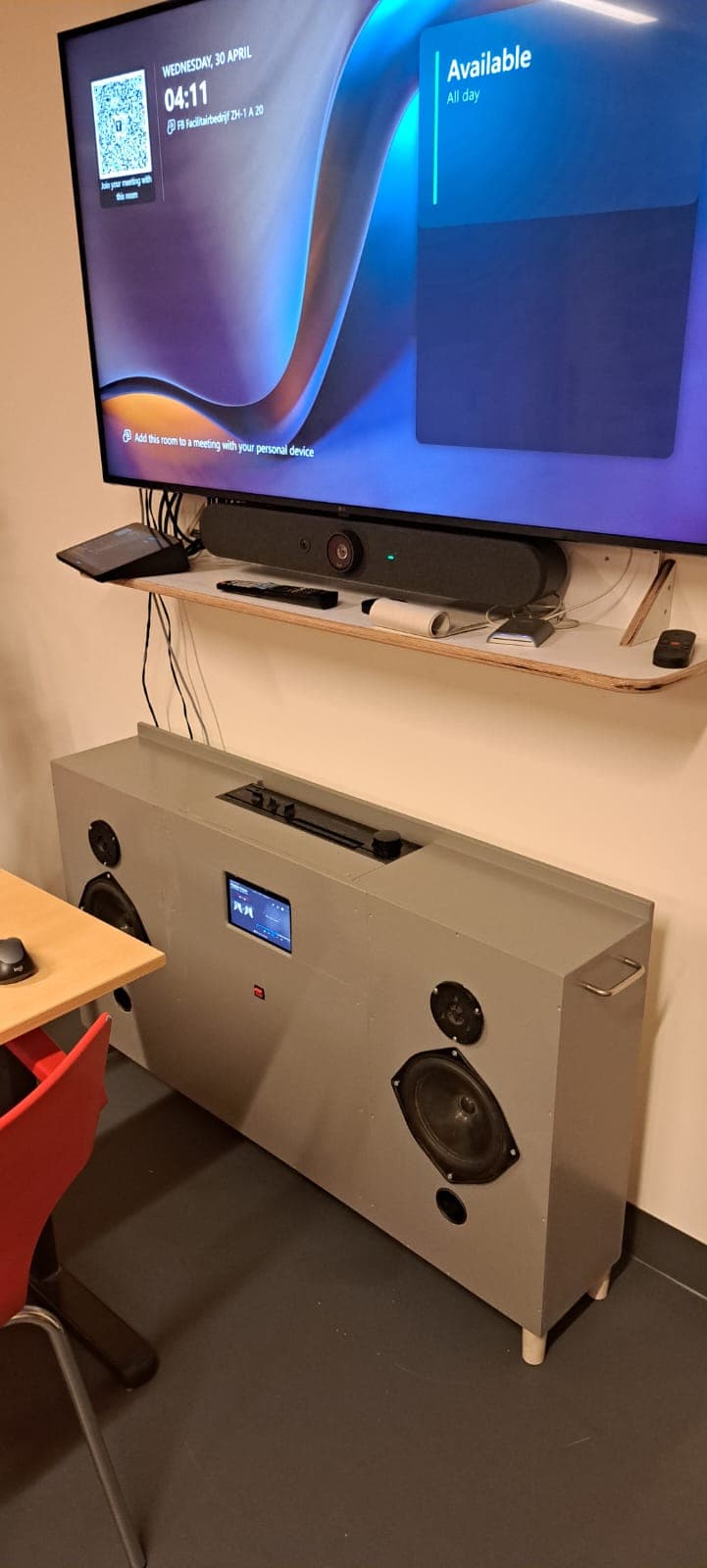

And, number 4 is born. It could be the largest ghettoblaster in the Netherlands :smiley:

Serves at our office’s canteen starting today…

It will get higher feet later on, today my vacation started, there was no time to finish that :smiley:

3 Likes

Die wil ik wel eens op je schouder zien :rofl:

1 Like

Should I build the next one from my professional speakers?
I mean, 4x 28" subwoofers, 4x 22" woofers, 2x horn type tweeters, all from Wharfedale PRO series, driven by 1x 1800W and 2x 1200W amplifiers.
The set as it is now weight is around 600kg…
:stuck_out_tongue:

Euh, if it comes with a pallet truck go for it. But you need wide doors to move it arround.

I know, I moved it to hundreds of parties and live gigs already. A Mercedes Vito full, you can’t even place a bag of groceries anymore in the car :smiley:

idee is brilliant, voor alle voetbal kantines in Nederland: market voor jou :joy:

2 Likes

Then just create a Vitobox. Drill some holes in the side panels for the speakers and a big flatscreen as rear window and some decals with “BeBeMi ChaChaCha” :rofl:

Voila business plan created

1 Like

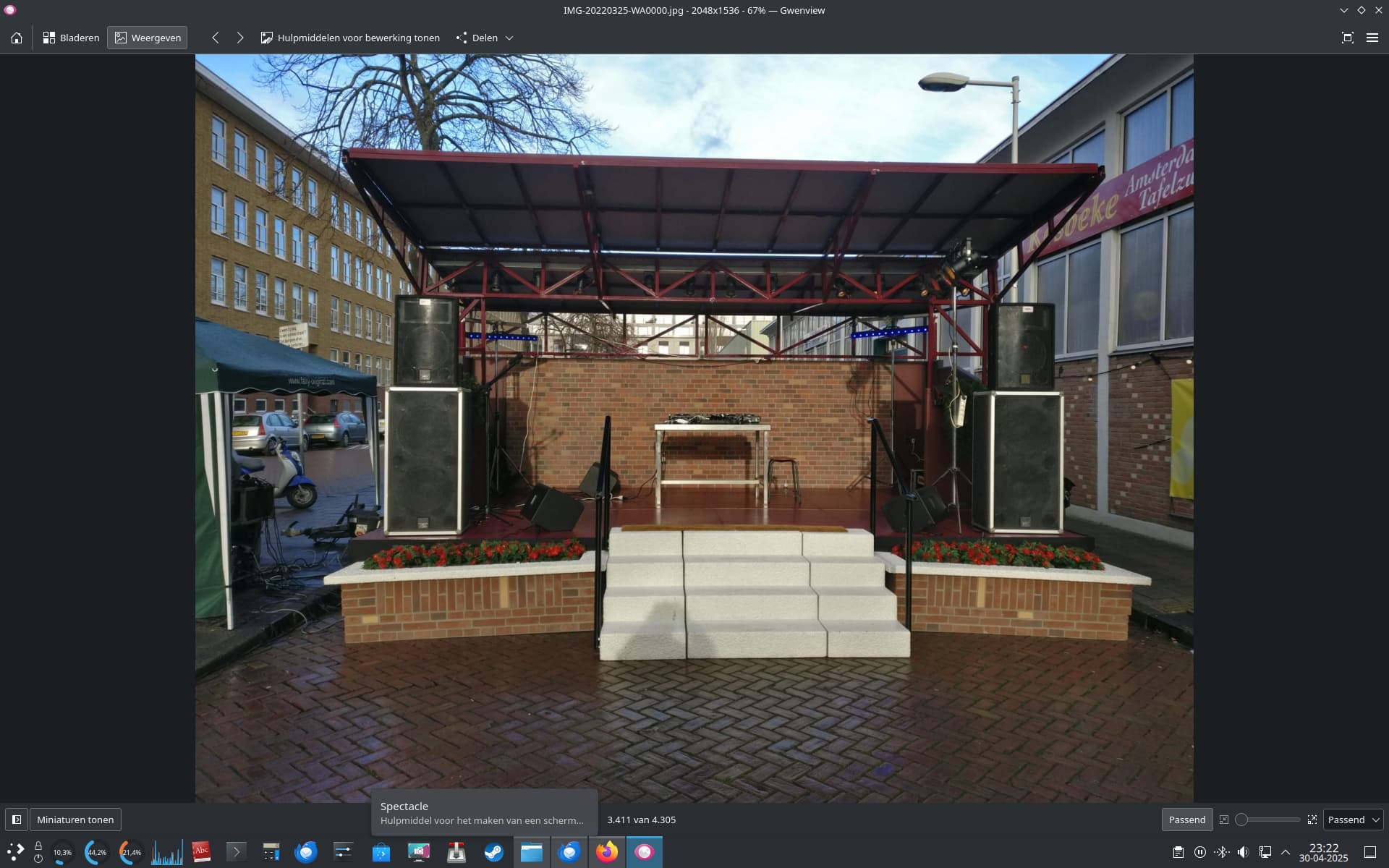

Here about 60% of my stuff is in use…

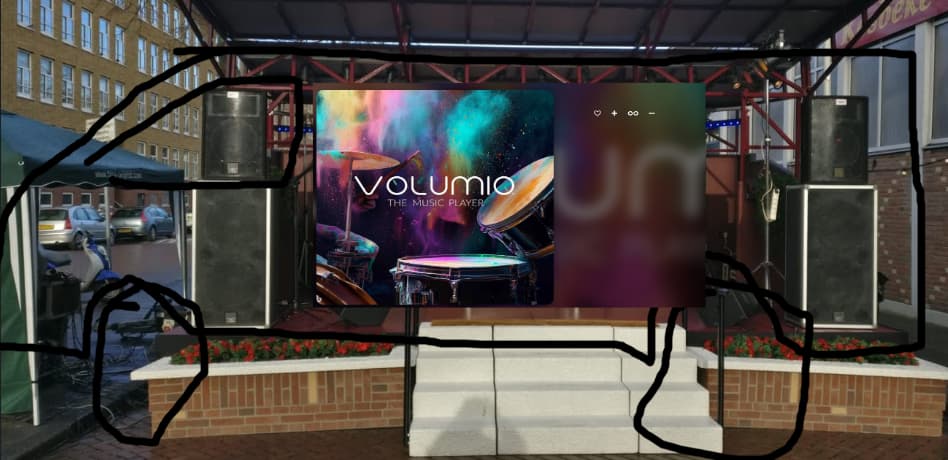

It is doable: :crazy_face:
But some holes are pretty big though…
Maybe not my best idea :thinking:

1 Like

But, on a serious note, I need help with this: Two HDMI screens simultaneously
