Iancanada Streamer won't play 24bit 192Khz Stream

Diy and Tweaks
,
1

I have an Ian Canada diy streamer #90B with

  1. #20B TransportPi Digi
  2. #48B PurePi II ultra capacitor/battery power supply
  3. #49A MonitorPi display/analyzer
  4. #3 IsolatorPi III
  5. Raspberry Pi 4
  6. SC Pure Clocks
  7. Burson Composer 3xp DAC
  8. Using Volumio

Using Tidal. Had same problems on Qobuz as a control.

I can play 16bit-44.1 without problem
I can play 24bit-44.1 without problem (I didn’t know this existed, but Tidal showed this)
24bit 192 just silence.

Is there some jumper I need to adjust? Is it a Volumio issue? Any help would be appreciated. Thank you.

James

2

What connect mode are you using? Coax? Optical? I2s/hdmi?

1 Like
3

Using coax from streamer to DAC.

4

Hi,
I have a similar configuration.
Check jumpers J12 and J13 in #3 IsolatorPi III (they must be set to Master Clock).

5

Ahhh ok… I never changed them from the default they were shipped as… I will try Master Clock mode…

6

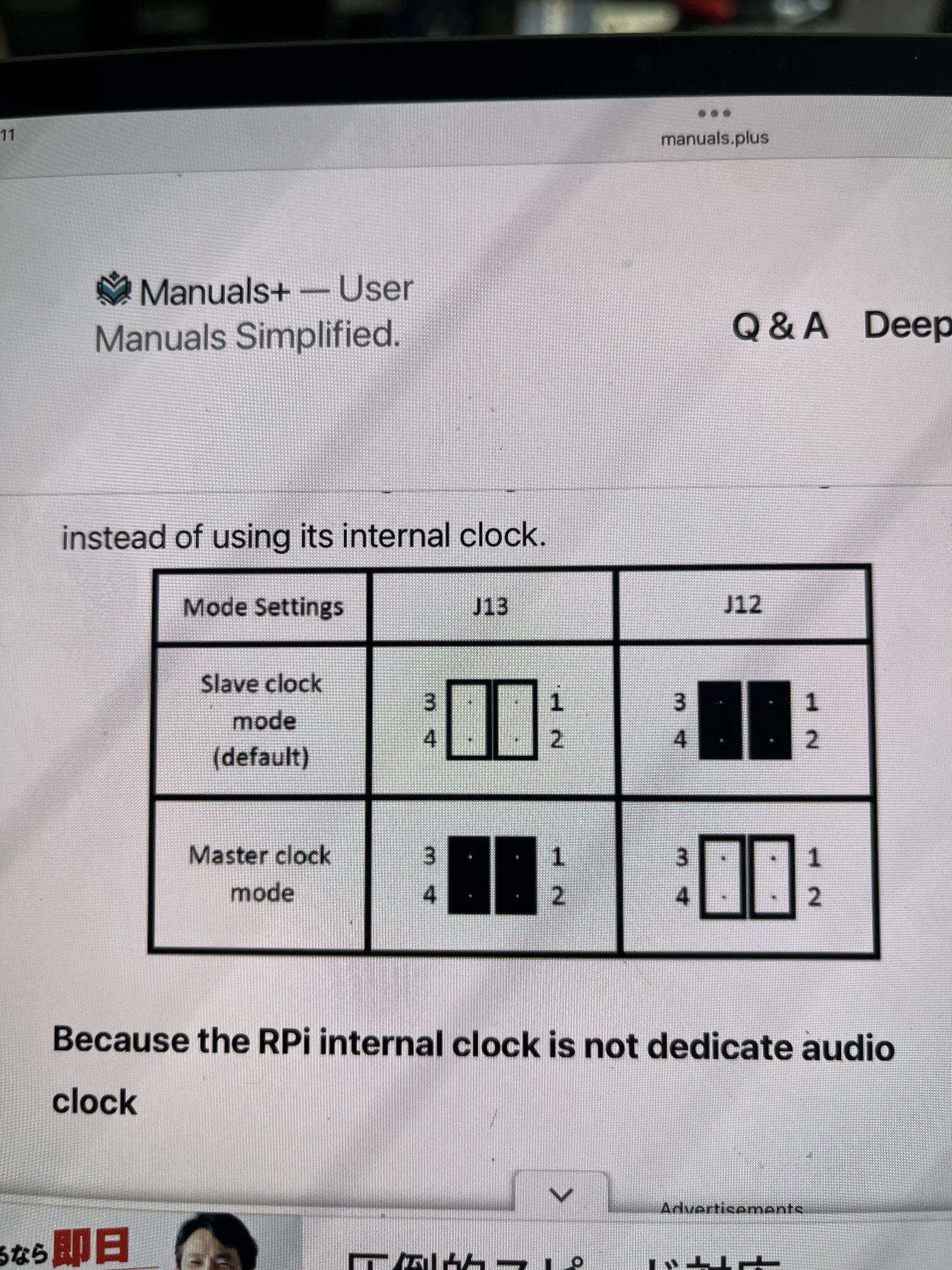

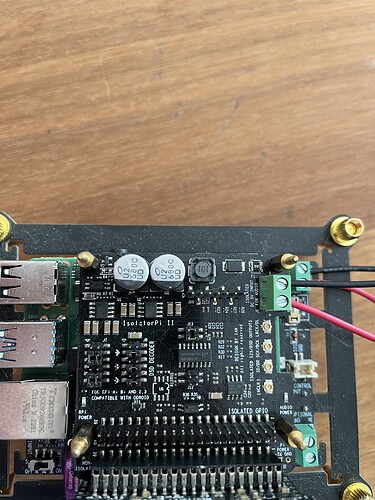

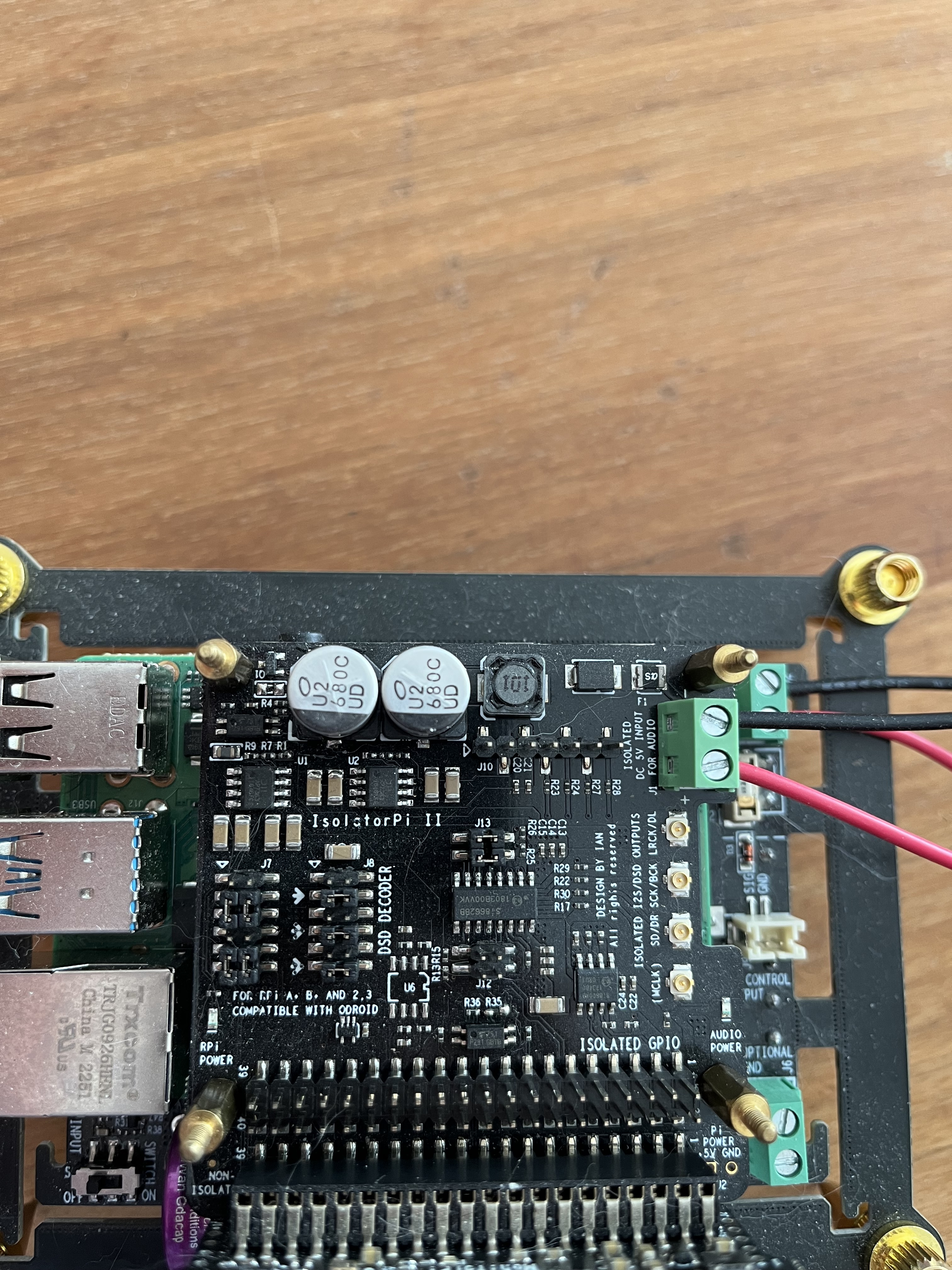

Looking at the manual and the board it looks like it is in master mode. Jumper on J13 and J12 empty (if I’m reading it right).

IMG_4543
IMG_45431512×2016 1.21 MB

IMG_4542
IMG_45423024×4032 3.23 MB

7

Hi @phewall! Did you find a solution to your issue? I have a very similar setup and get heavy distortion when a track switches from a lower sample rate to 192kHz. (I tried two different DACs via I2S.
BR
Paul
