How to connect HIFIMEDIY SABRE ES9023 DAC to RPi Bv1.0

Anyone that can give a helping hand on how to connect this to a Raspberry PI B v1.0? … 31_TE_dp_1

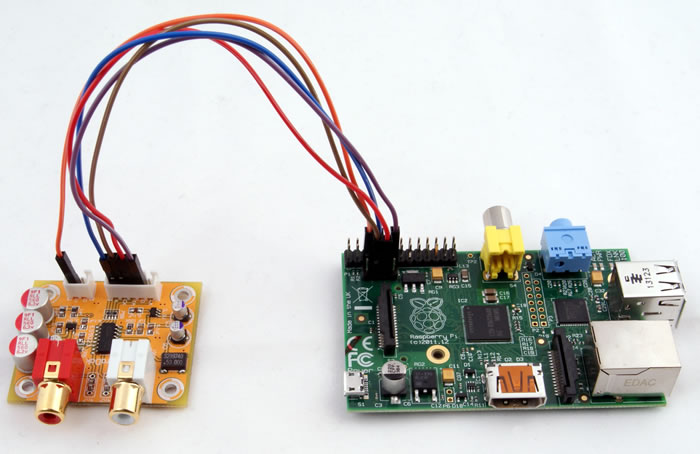

That’s the same board as mine, but this is the same wiring:


Hi Twerp

Thanks for answering, the link you posted only takes me to the front page of the forum, could you please try to post it again ?

Ooops, sorry about the delay. Here’s the post from user IRoN:

Thanks for the linke.

I think i need to look if i got a newer rpi since min is one of the first version that do not have the P5 header holes.

Thanks for the info :wink:
